Brand: GE Fanuc
Processor model: Embedded 586
Memory storage type: RAM and flash
Typical scan rate: 0.15 ms per 1K logic (Boolean contacts)
CPU Type: single-socket CPU module with embedded Ethernet interface
Storage temperature: -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit)
Operating temperature: 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit)
Number of Ethernet ports: 2
Serial port: RS-485 (via power supply
Features:
SRTP server function
TCP/IP communication services using SRTP
Basic remote PLC monitoring via Web browser
The GE Fanuc CPU374 Plus TCP/IP Ethernet communication module provides a built-in enhanced Ethernet interface and is part of the 90-30 series. CPU374 PLUS provides TCP/IP communication with the 90 Series, PACSystems and VersaMax PLC, hosts running the Host Communications Toolkit or CIMPLICITY software, And computers running TCP/IP versions of programming software. These communications use GE Fanuc SRTP and Ethernet Global Data (EGD) protocols over a four-layer TCP/IP (Internet) stack. The Ethernet interface provides the SRTP server function. As a server, the Ethernet interface responds to requests from devices, such as PLC programming software, hosts running SRTP applications, or other PLCS acting as clients.

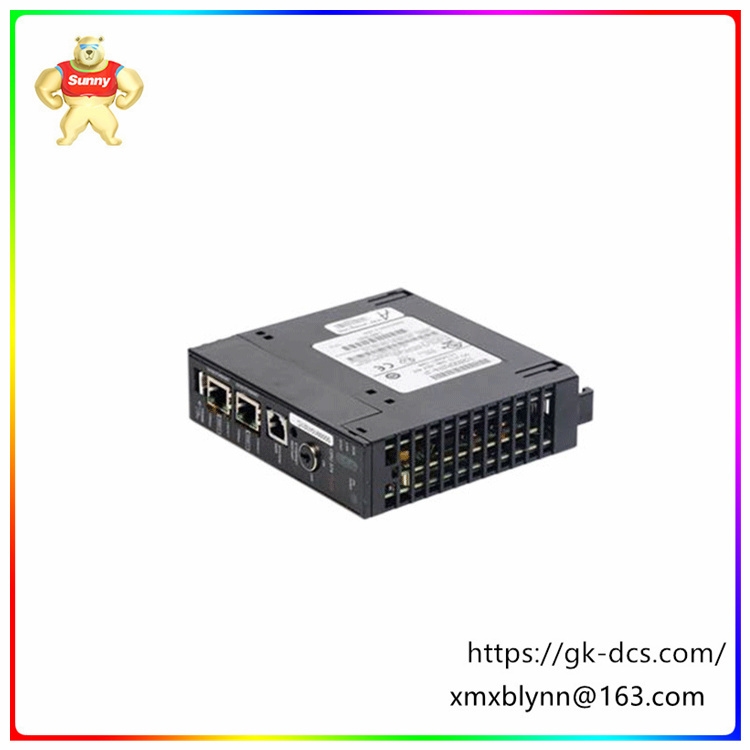

The IC693CPU374 is a programmable logic controller (PLC) module of the GE Fanuc 90-30 series. The module is a processor module that hosts user programs, executes logic and exchanges managed data with the processor via an embedded communication port.
IC693CPU374 can also be called controller. The controller has a built-in microprocessor and an embedded 586 processor with a processing speed of 133 MHz. Its typical scan rate is 0.15 ms per 1K Boolean contact logic. The controller module has a single slot width mounted on a 90-30 PLC rack.
The user memory of IC693CPU374 is 240KB. It has two (2) Ethernet communication ports that support 10/100 Mbps transfer speeds and automatic sensing capabilities. These ports enable the controller to connect to an Ethernet network in order to communicate with programmed workstations such as desktops or laptops, with human machine interface (HMI) and supervisory control and data acquisition (SCADA) systems, and with other processors used for messaging functions. The controller can also communicate via the RS485 communication interface, which can be found on the power supply, whether it is a standard power supply or a high-capacity power supply.
The controller accepts user programs developed using a variety of programming software applications, such as VersaPro 2.03 or later, CIMPLICITY Machine Edition Logic Developer 2.60 or later, and control software 2.50 or later. When making online edits to the controller using an existing user program, use the same or later version of the same software.
The IC693CPU374 CPU has a processor speed of 133 megahertz and a total user memory of 240 KB. Program memory can be configured according to application requirements, including a register memory that can be configured in the range of 128 to 32,640 words, and a configurable memory for analog input and analog output. The memory of the system register supports up to 28 words, and users can set about 2000 timers and counters.
The IC693CPU374 CPU uses an 80386EX processor of the AMD SC520 type and has 2 built-in Ethernet ports for 10/100 base-T/TX communication. Featured Ethernet ports are connected through RJ-45 connectors. The device also supports an RS-485 port on the power supply and allows communication via SNP and SNPX protocols. In addition, the device also supports a variety of frequently used program storage devices.
