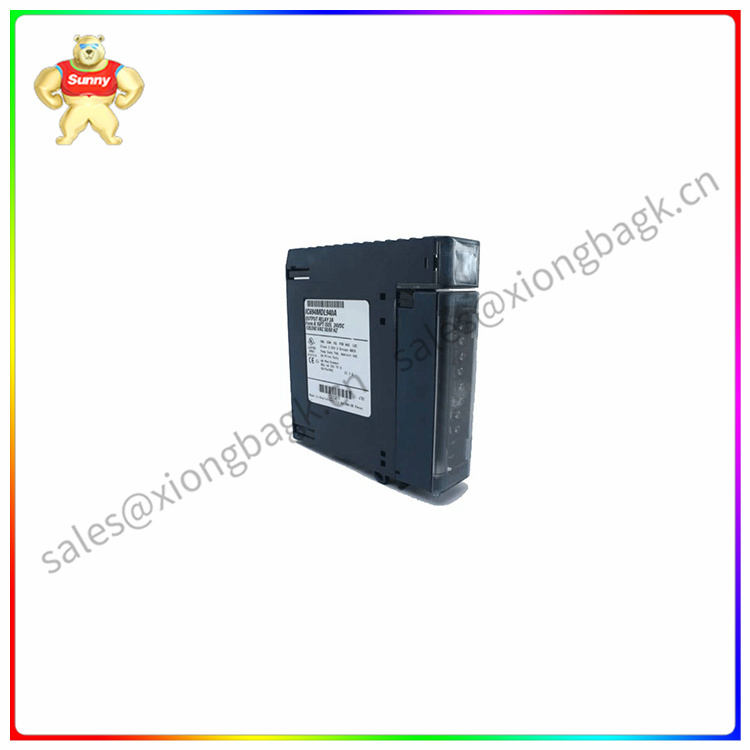

The IC694MDL940 is a 16-point relay output module in the PACSystem RX3i family from Emerson Automation (formerly GE Intelligent Platforms). The module was previously manufactured by GE Intelligent Platforms (GE IP) and is now a product of Emerson Automation.
Technical features:
Relay output: The IC694MDL940 has 16 relay output points, divided into 4 groups, each group of 4 outputs. These relay contacts are normally open (NO) or type A contacts.
Load capacity: Each output contact is rated for a maximum load of 2 amps of pilot load, while each output group is designed to provide a maximum output current of 4 amps. In addition, the module has a minimum load of 10mA and a maximum inrush current of 5A.
Status indicator: The module is equipped with 16 status LED indicators, each representing a separate output channel. A powered LED indicates that the corresponding output is activated, while a powered LED indicates that the output is not activated.
Protection: It should be noted that the IC694MDL940 does not have a built-in fuse for channel protection. As a result, users may need to install an external fuse to protect the module from potential overcurrent or short circuit damage.
Applications:
The IC694MDL940 is commonly used in conjunction with other modules of RX3i PACSystems to form part of industrial automation and control systems. It can be used to control various output loads, such as motors, valves, indicators, etc. Due to its flexible configuration and powerful functions, the module is widely used in various industrial fields, such as manufacturing, energy, water treatment, etc.
The advantages and disadvantages of IC694MDL940 are analyzed as follows:
Advantages:
High reliability: As a relay output module, the IC694MDL940 provides high output stability and reliability for a variety of industrial automation applications.
Flexible output configuration: The module has 16 relay output points, divided into 4 groups, each group of 4 outputs, providing a flexible output configuration, can meet different control needs.
Intuitive status indicator: Equipped with 16 status LED indicators, so that users can intuitively understand the status of each output channel, easy to monitor and maintain.
Good compatibility: The module is highly compatible with other modules in Emerson Automation's PACSystem RX3i family, making it easy to extend and upgrade in the system.
Cons:
Lack of built-in protection: The IC694MDL940 does not have a built-in fuse or other protection mechanism, requiring users to install their own external fuses to protect the module from potential overcurrent or short circuit damage. This increases maintenance costs and complexity for users.
Specificity: This module is designed for Emerson Automation's PACSystem RX3i series and may not work with other brands of PLC systems, limiting its range of applications.
Power consumption and heat dissipation: Because the module has more relay output points, it may have large power consumption and heat dissipation problems under high load conditions. Ensure proper heat dissipation measures to ensure the stable operation of the module.
