The IC695CPU315 is a programmable logic controller (PLC) central processing unit (CPU) module from General Electric (GE). It has a power management function, can monitor the power status and power load, provide power failure detection and alarm functions.
To monitor the status of the power supply and the load of the power supply, the functionality of the PLC module and the connected sensors and devices can be utilized. Here are the steps:
Ensure that the IC695CPU315 is correctly powered on.
Check power modules and cables to make sure they are securely connected.
Monitor power status and load with the power management capabilities of the IC695CPU315.
When the power supply status is abnormal or the power load is too large, the IC695CPU315 will trigger the alarm function.
The Central Processing Unit (CPU) is the computing and control core of the computer system, and the final execution unit of information processing and program running. It mainly includes controller and arithmetic two parts, also includes cache memory and realize the connection between them data, control bus. The three core components of an electronic computer are CPU, internal memory, and input/output devices. The main functions of the central processor are to process instructions, perform operations, control time, and process data.

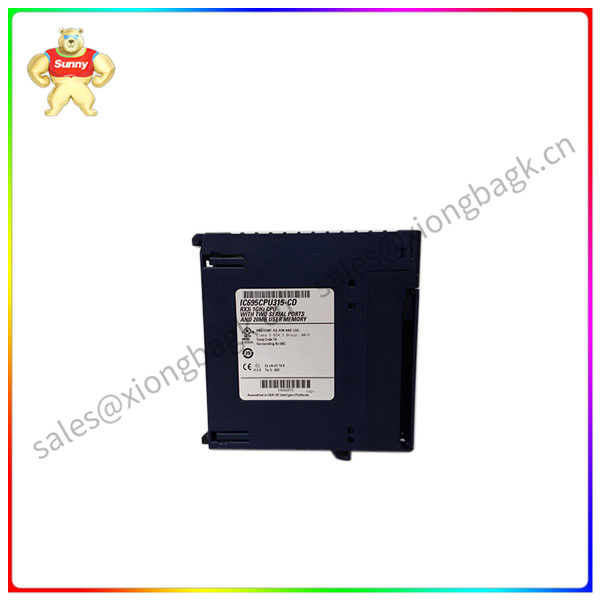

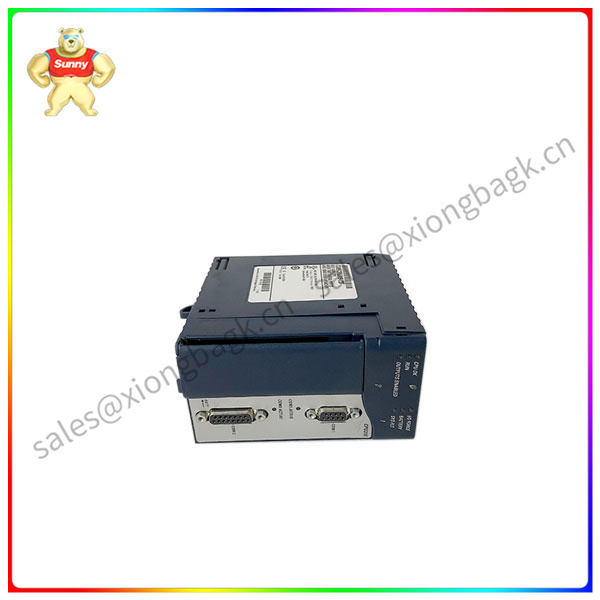

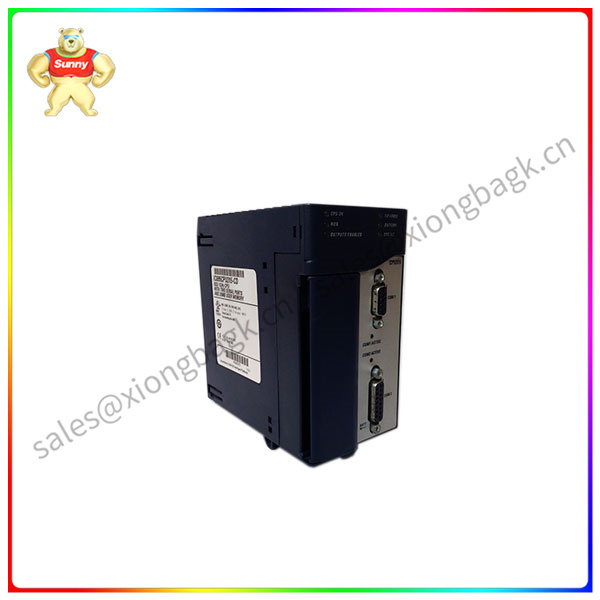

Technical note: The IC695CPU315-CD central processor is used to control and monitor programmers throughout the plant
Compatible with HMI devices
The GE Fanuc IC695CPU315 CPU is an RX3i PacSystems 1.0 GHZ Celeron M CPU with 20 MB of Donkey memory. Accessories that can be ordered with the CPU- include the IC695ACC302 smart
Auxiliary battery, IC693ACC302 general auxiliary battery and IC690RBT001 rechargeable battery. CPU modules can only use GEIP-approved auxiliary battery packs. In addition to battery-powered RAM, the module also packs
Includes 20 MB of NVRAM. The IC695CPU315 CPU reserves 32 kilobits of memory for discrete I/O and 32 kilobytes of memory for analog I/O, and supports up to 512 blocks of 128 each
KB. The CPU module supports high-speed serial and RX3i PCU bus. The IC695CPU315 CPU complies with version 2.2 of the PCI standard.
The IC695CPU315 central processor or CPU belongs to the PACSystems RX3i family of products designed by GE Fanuc. It has 20 MB of battery-powered RAM and 20 MB of non-volatile flash user storage
Power requirements for 3.3 volts DC and 1 amp or 5 volts DC and 1.2 amps, embedded communication options, operating temperature range of 0 to 60 degrees Celsius, and up to 512 program blocks. It offers a double back

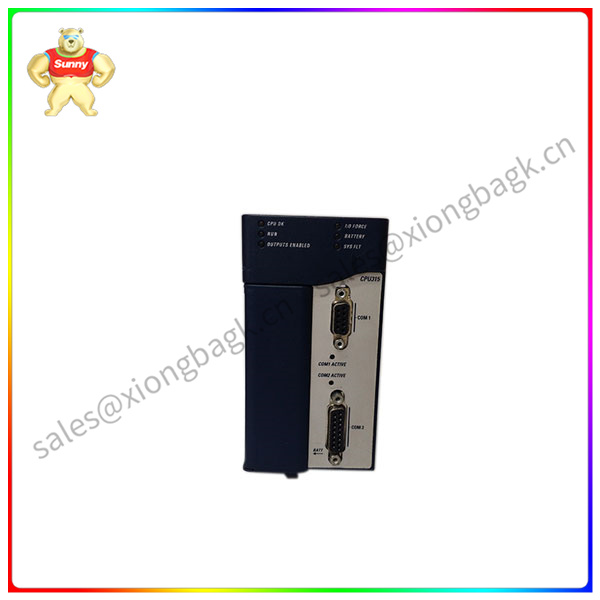

Board to effectively communicate with 51/o. The module provides two serial communication ports, namely RS-232 and RS-485 ports. Rack-based Ethernet interface modules can be used to establish Ethernet communication.
The IC695CPU315 CPU can be programmed in a variety of languages, such as ladder diagrams, structured text, block diagrams, or the C programming language.
The IC695CPU315 central processing unit is compatible with programmers and HMI devices used to control and monitor the entire plant. It is equipped with a dual backplane that provides a high-speed serial bus and an RX3i PC. Typical cloth of the module
The execution speed is 0.047 milliseconds per 1000 Boolean instructions. It is electrically PCI 2.2 compliant. The main functions of the IC695CPU315 CPU include access to mass memory, configurable data and
Program memory, in-system upgradable firmware, and embedded communications that support serial protocols. It is compatible with most 90-30 series modules, communication modules and expansion racks. When installing the battery, make sure it will
The CPU is installed in the rack and the rack is powered on before the battery is connected. This module is used for real-time control of machines and processes in the plant.
