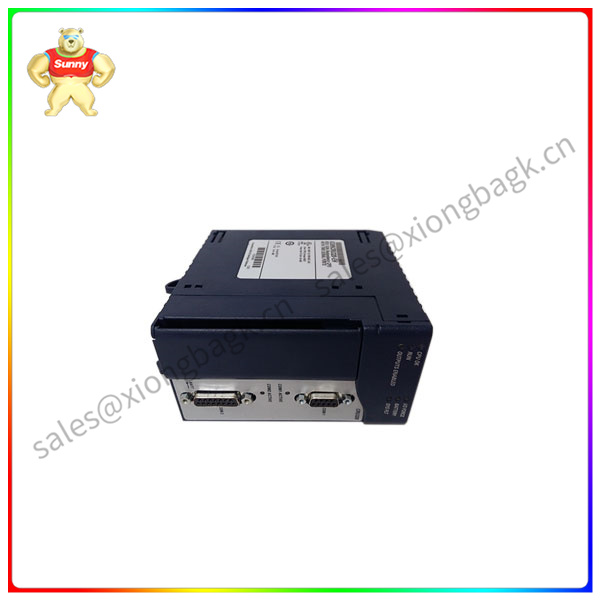

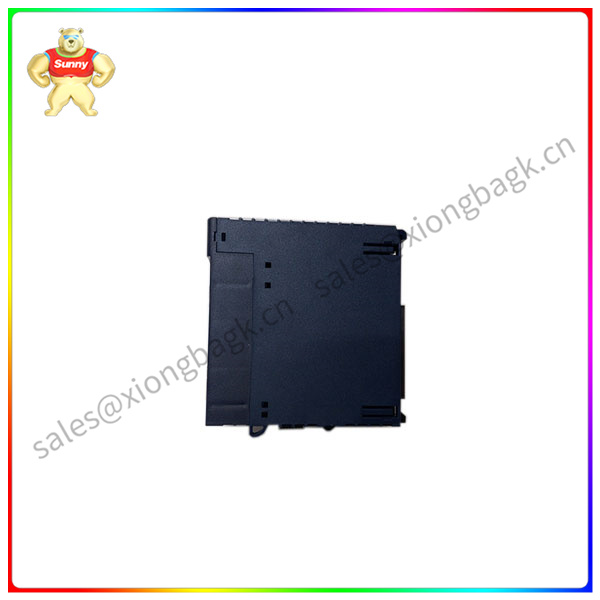

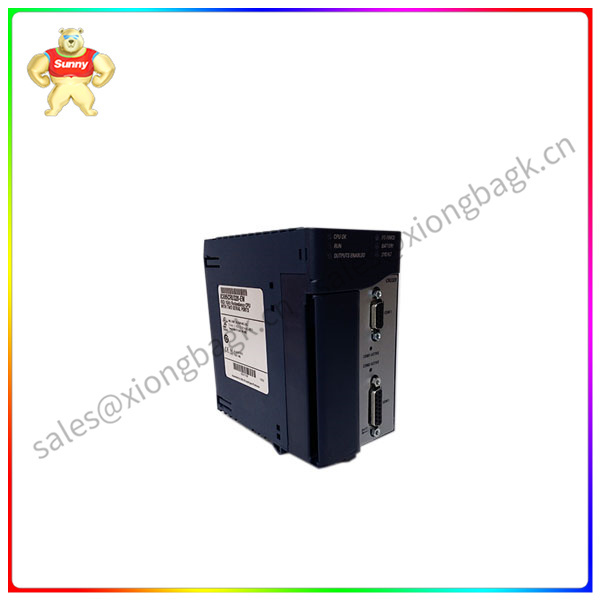

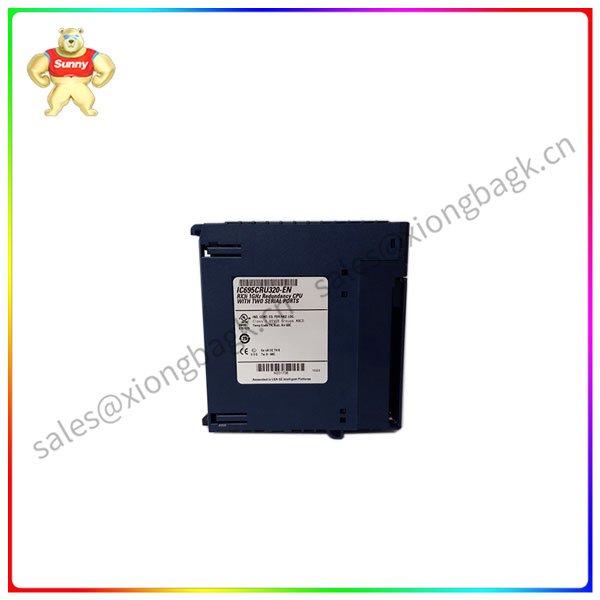

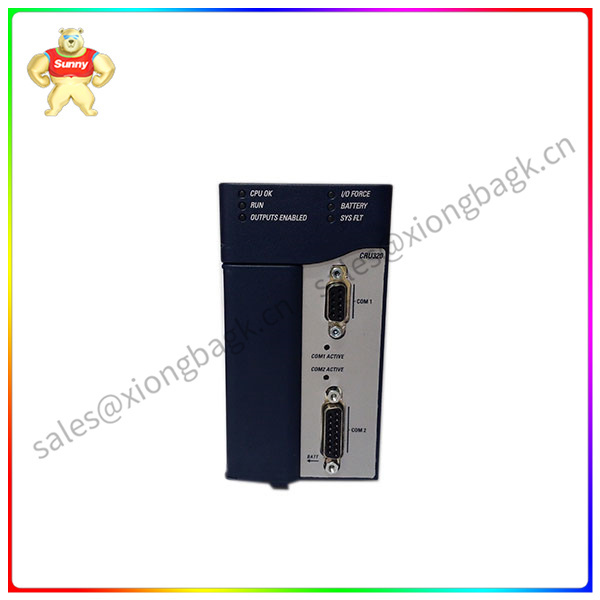

The IC695CRU320 is a CPU module in the GE Fanuc Automation family. It may have powerful processing power and multitasking capabilities to efficiently perform control logic and arithmetic tasks. In addition, the module may also be equipped with a variety of communication interfaces, such as Ethernet, serial ports, etc., to achieve communication and data exchange with other devices.
The IC695CRU320 is a redundant processor for the PACSystems RX3i product family. Manufactured by General Electric Fanuc/Emerson Automation, the processor is classified as a Programmable Automation controller (PAC).
The IC695CRU320 is especially used in redundant or hot standby configurations. With this controller configuration, availability is significantly improved. Two (2) controller racks with configuration functions similar to primary (active) and secondary (standby)
A rack. When a single rack fails, mainly due to an error detected by the IC695CRU320 or an error by the IC695CRU320 processor itself, the task of the active controller is automatically transferred to the auxiliary
(Spare) rack. The auxiliary test tube rack becomes the main test tube rack, and the faulty test tube rack is transferred to the auxiliary test tube rack. In addition, manual switching is possible.
Controller switching is performed in a maximum of one logical scan and the minimum switching time is 3.133 ms. The drum holds the IC695RMX128/228 synchronous link, capable of transmitting up to 2mb of data. Rely on
With a Celeron M processor with 1GHz processing speed and 64MB of user memory, the controller is ideal for large, complex applications with higher demands. In addition, the processor can store up to 512 program blocks, each
Blocks can be up to 128 KB in size.
The IC695CRU320 processor is mounted on the RX3i backplane directly into the peripheral Component Interconnect (PC) slot. Other modules are also connected to the bus via PCI 2.2 or later. The PCI slot supports the back
Fast transfer and sharing of on-board data. The IC695CRU320 also supports the 90-30 series /O modules for phased migration.
The GE Fanuc IC695CRU320 CPU requires 1 amp at 3.3 volts DC and 1.2 amps at 5 volts DC. There are two integrated serial ports on the module, supporting RS-232 and RS-485
Communication. Up to 512 blocks can be configured, with each block supporting up to 128 KB in size. The rated flash durability rating is at least 100,000 write/erase cycles. Switching time maximum
The length is 3.133 milliseconds and the maximum length is one logical scan. - The maximum amount of data that can be transferred is 2 MB. The IC695CRU320 CPU supports up to two IC695RMX128/228 synchronous links for implementation
Redundancy. The programming of the IC695CRU320 CPU can be done with ladder diagram, C language and function block diagram language. Ethernet communication is supported through a rack-based Ethernet communication module.
