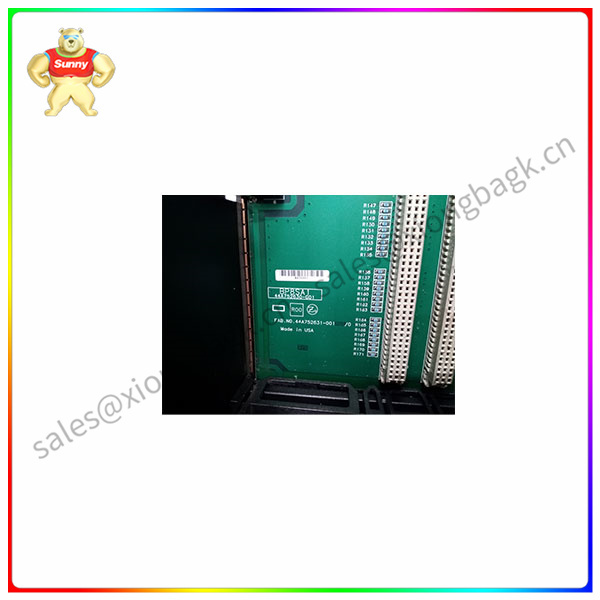

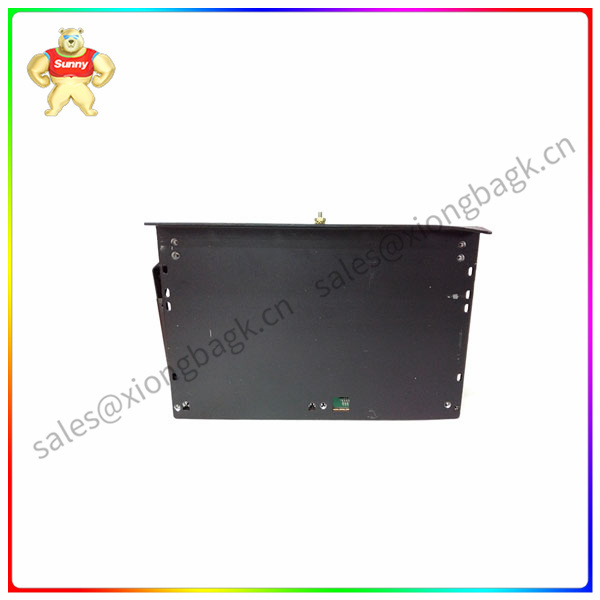

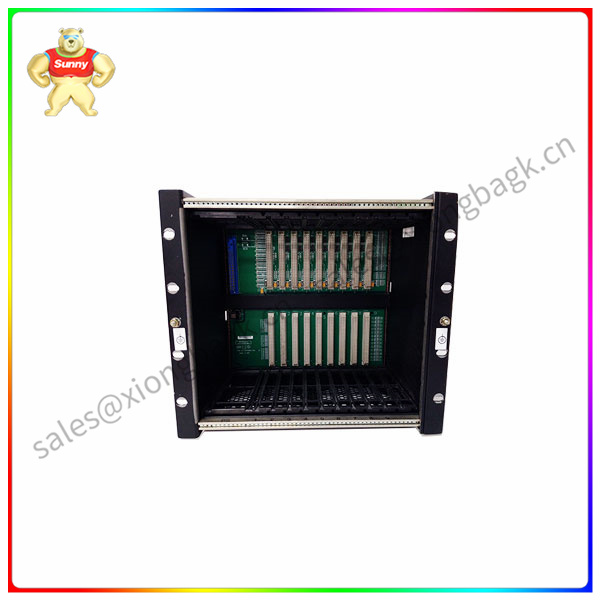

The IC698CHS009 is a rack with nine I/O slots for the Rx7i CPU, I/O module, and power module. Slots 1 to 8 are 20 mm wide and support only single-slot modules. Slot 9 is 40.6 mm wide and supports dual-width modules. In addition, the IC698CHS009 rack supports power supplies rated at 100 watts and 350 Watts.
The IC698CHS009 functions primarily as a 9-slot I/O rack for the Rx7i PAC system, supporting all Rx7i CPU and I/O configurations, and the 90-70 series I/O and VME modules. Its features include:
Highly configurable: The IC698CHS009 supports software configuration for I/O addressing without DIP switches or jumpers.
High compatibility: It is compatible with all Rx7i CPU and I/O devices, 90-70 series I/O and VME modules.
With automatic daisy-chain function: The IC698CHS009 rack provides automatic daisy-chain for interrupt acknowledgement and bus authorization signals without the need for slot jumpers.

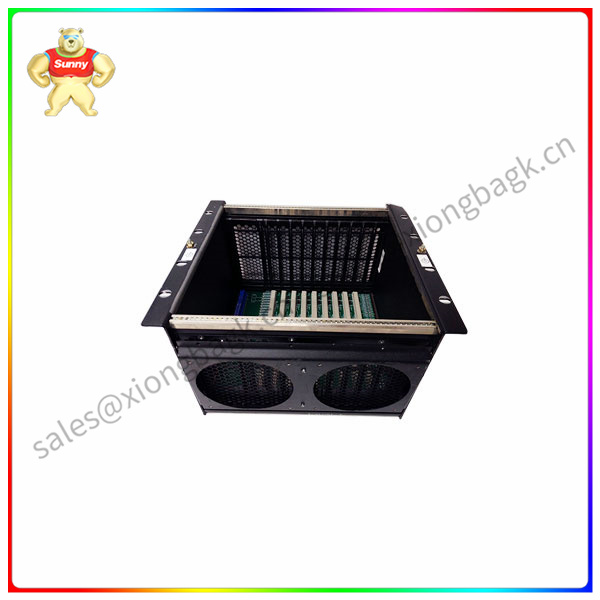

Support fan components such as IC698CPE020/CRE020 components for enhanced cooling.
Open design: The IC698CHS009 rack requires a standard IP 54 housing to provide protection on any factory floor.
Wide operating temperature range: operating temperature range is 0 to 60 degrees Celsius.
