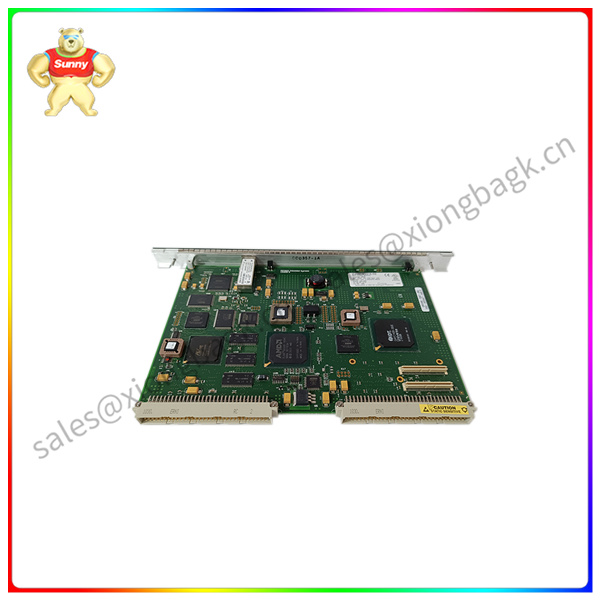

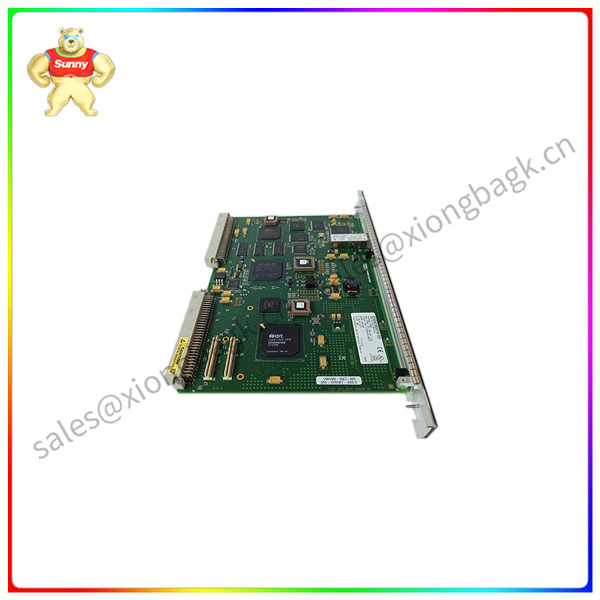

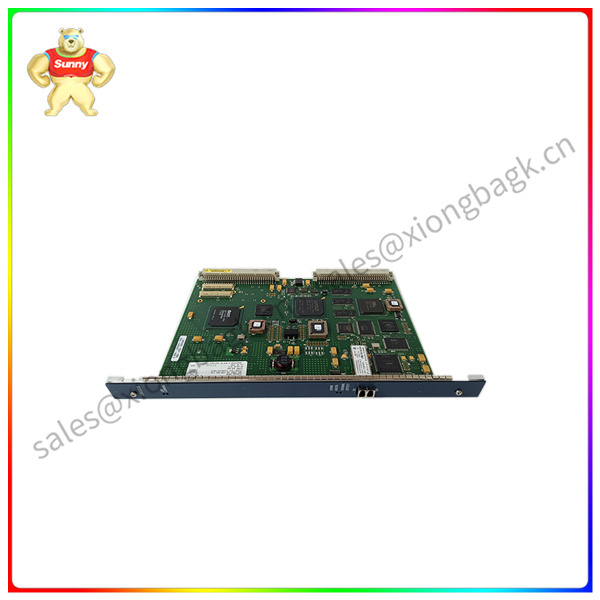

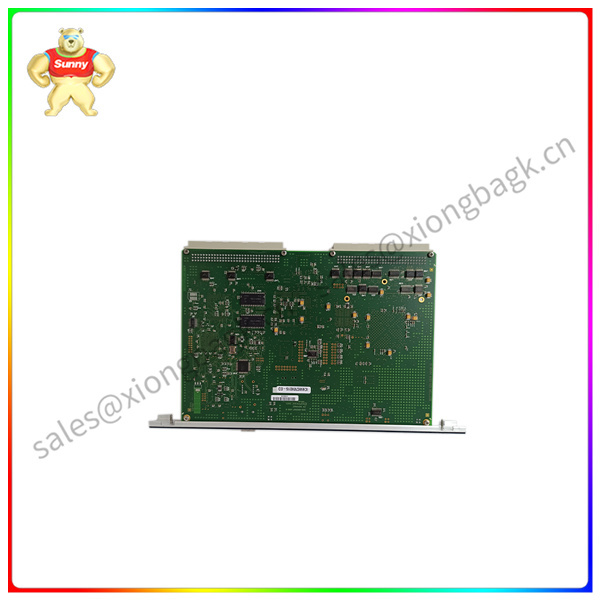

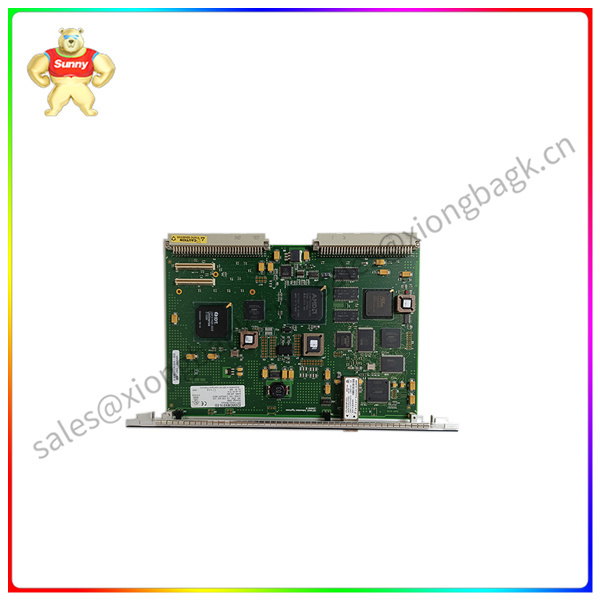

The IC698CMX016-ED is a control memory switch module designed to provide deterministic sharing of data between PLCS and compatible devices over a fiber optic network. It is equipped with 16MB SDRAM, operates at +5VDC, is supplied by the power supply, and the current requirement is 1.8 amps. This module needs to be mounted to the mainframe and connected to slot 3 or 4. It uses fiber LC type with insertion loss of 0.35 dB (maximum) and return loss of -30dB. The component is essentially a storage module, however, the main function of the IC698CMX016 is to provide deterministic data sharing between the PLC and compatible devices over a fiber optic network using reflective memory technology. The memory module is capable of communicating with up to 256 nodes per network and supports redundant transport mode operation.
Benefits of IC698CMX016-ED include:
Sharing deterministic data between PLCS over a fiber-optic network enables faster and more reliable data transmission.
With 16MB SDRAM, it can store large amounts of data and communicate with up to 256 nodes per network.
Supports redundant transmission mode, which improves system reliability.
However, it also has some disadvantages:
It can only be used in fiber optic networks, and for some systems that still use legacy cables, additional upgrades or hardware replacement may be required.
Although 16MB SDRAM is available, higher memory capacity may be required if the amount of data to be processed is very large.
Prices can be relatively high, which can add to cost pressures for some projects with limited budgets.
