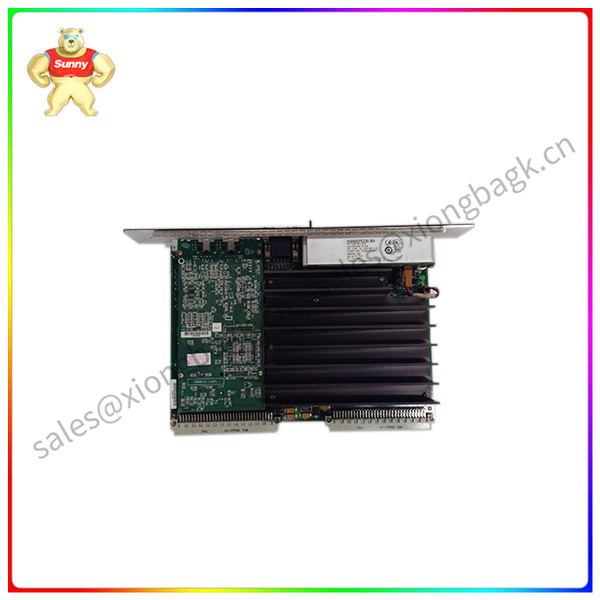

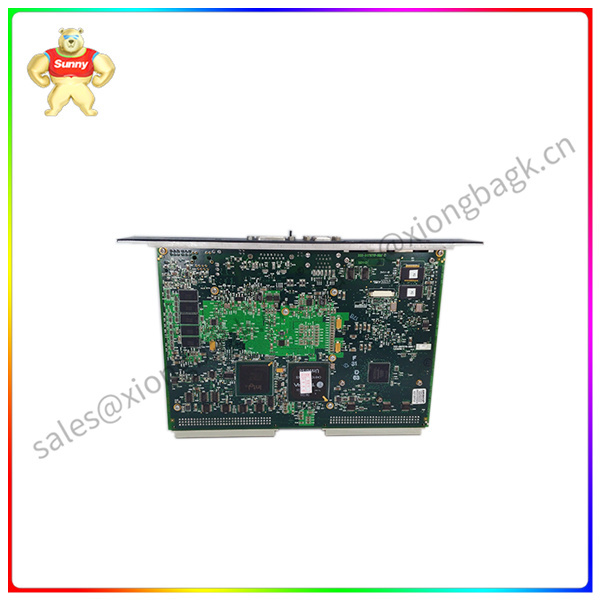

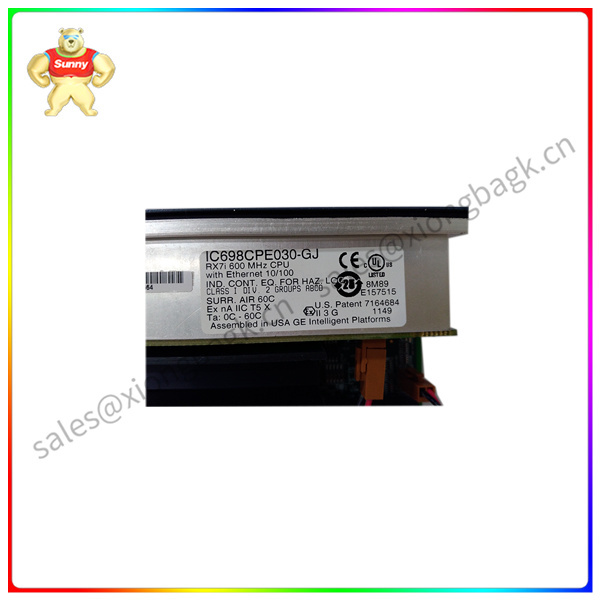

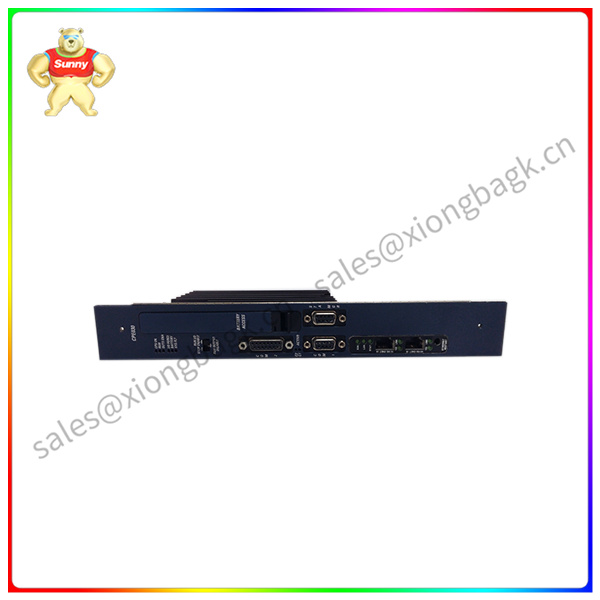

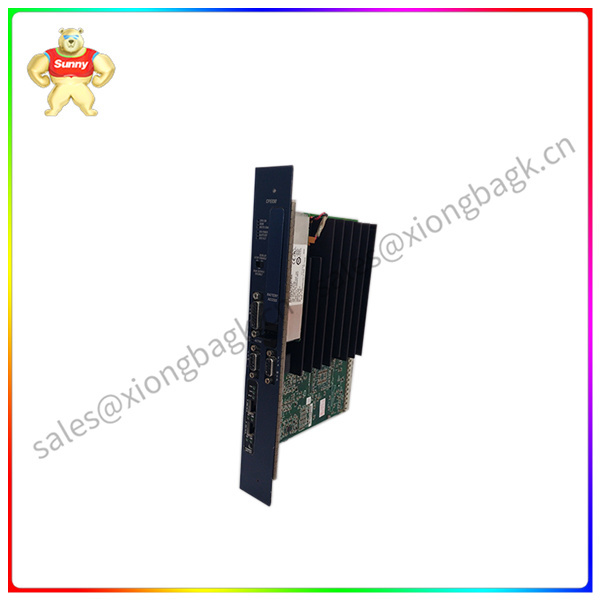

GE IC698CPE030 CPU
The IC698CPE030 is a 600 MHz CPU produced by GE Fanuc for the RX7i series
Processor). Featured features of the IC698CPE030 include battery-encapsulated user memory and
Non-volatile flash memory for data mass memory access, configurable data/programs
Memory and automatic positioning symbol change, etc. The CPU supports the 90-70 series discrete and analog
I/O, communication, and other modules, including VME modules.
The CPU is equipped with a Pentium-M microprocessor. It has 64 MB of user memory and user flash
Yes. As an RX7i CPU, the IC698CPE030 is configured to control processes and materials in real time
Process structure. The IC698CPE030 unit is rack-mounted using the VME64 standard format
A backplane is installed to communicate with the I/O and smart options modules. For different HMI Settings with programmer
Communication is enabled with an embedded Ethernet port. Serial port using SNP slave protocol
It can also be used for communication.
After electricity, the IC698CPE030 begins a comprehensive self-diagnostic examination. During initialization
The LED lights will be on or off in a specific order. After the initialization process is complete,
The "OK" LED light will flash and then light up.
The IC698CPE030 is a CPU module commonly used in industrial automation and control systems from General Electric (GE). It is one of the core components of the control system and is responsible for performing control logic, data processing and communication tasks to ensure the operation and control of the automated system.
IC698CPE030 usually has strong processing power, can handle complex control algorithms and large amounts of data, and supports a variety of communication protocols, such as Ethernet, Profibus, Modbus, etc. It is also scalable and can be upgraded or expanded according to actual needs.
In addition, the IC698CPE030 has high reliability and stability, and can operate stably in harsh industrial environments. It is also maintainable, making it easy to service and replace parts.
Overall, the IC698CPE030 is a powerful and reliable CPU module for a variety of industrial automation and control applications.
