The Multi-function processor (MFP) module controls the position of the steam or gas turbine throttle by sending position requirements to the hydraulic servo (HSS) module.
The HSS module drives its output to open or close the section
The IMHSS03 Multi-function processor (MFP) module controls the position of the steam or gas turbine throttle by sending position requirements to the hydraulic servo (HSS) module. The HSS module drives its output to open or close the throttle valve to meet the position demand, and the flow valve to meet the position demand.
The IMHSS03 multifunctional digital composite module uses the IMFCS01 frequency counter module to measure turbine speed. The frequency counter module measures turbine speed by calculating and timing pulses from magnetic pickups on the turbine shaft. The multifunctional digital composite module uses this count to calculate turbine speed and calculate new requirements based on set points.

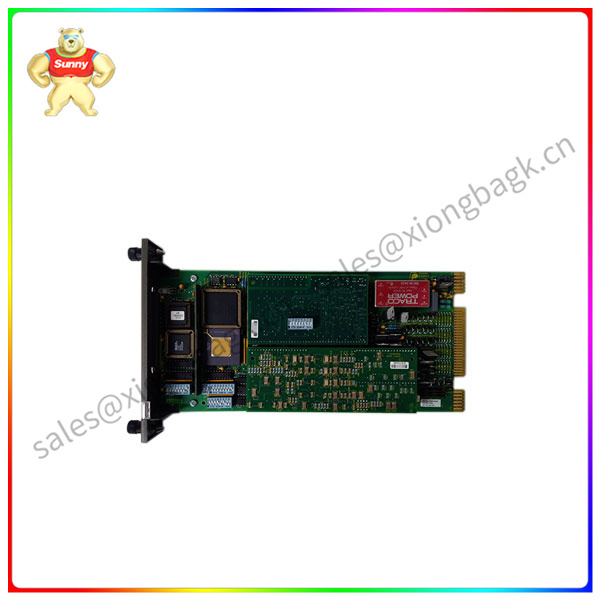

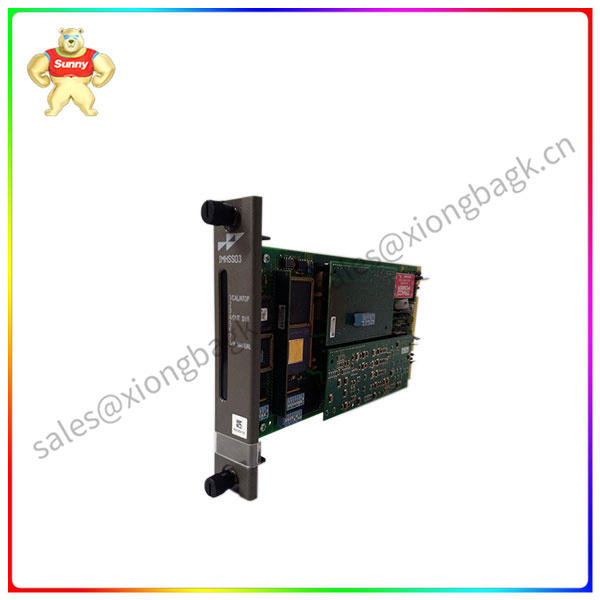

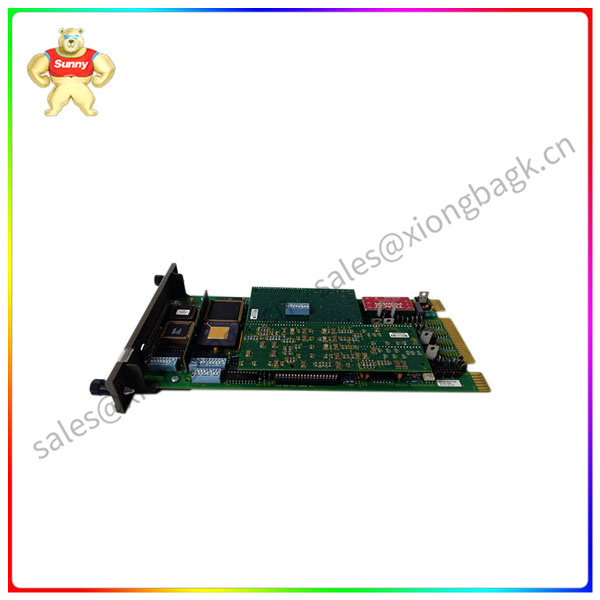

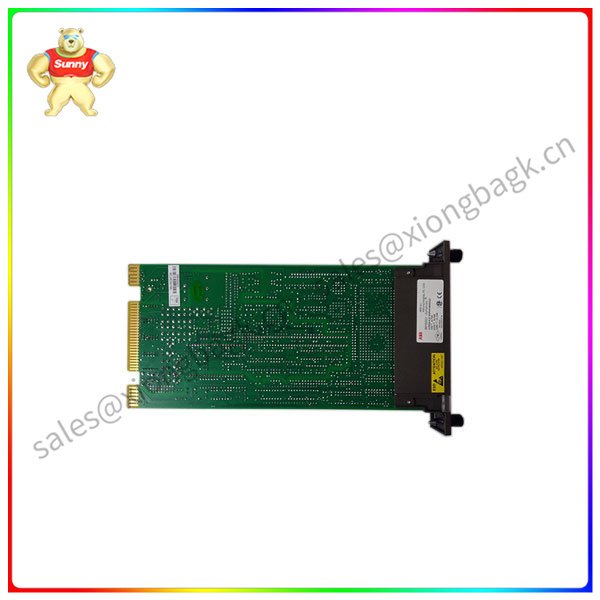

The IMHSS03 hydraulic servo module is a module used to control the hydraulic actuator, which can change the actuator position by adjusting the current of the servo valve. This kind of module is usually used in various industrial automation and control applications, and has the characteristics of high precision, fast response, stability and reliability. Hydraulic servo module can control various types of hydraulic actuators, such as plunger pump, vane pump, hydraulic cylinder, etc., widely used in various industrial fields, such as petrochemical, iron and steel smelting, power production, etc.
