Brand: GE
Model IS200EDCFG1B
Category: Analog module

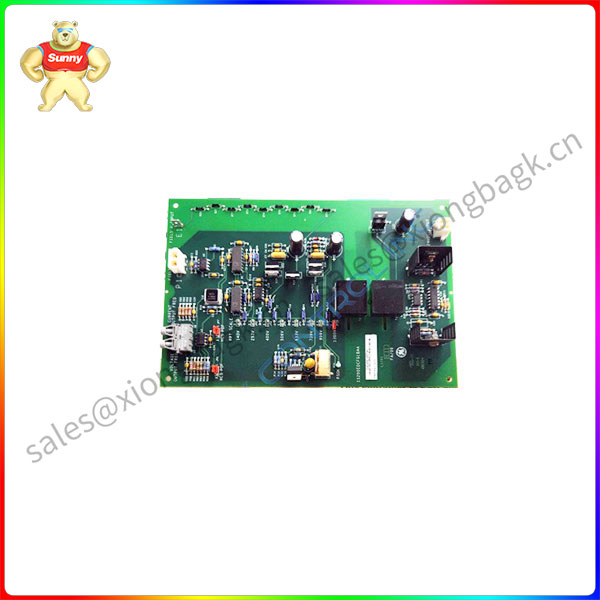

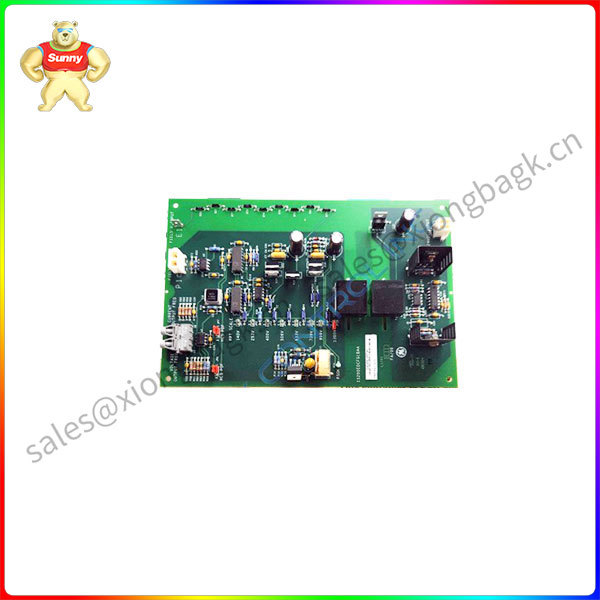

IS200EDCFG1B
Day is an analog module produced by GE General Electric Company. The following is the product description, product parameters, product application and brand introduction of IS2OOEDCFG1B:
Description :IS20OEDCFG1B Analog module is a module designed for industrial applications to achieve analog input and output functions. It has the characteristics of automatic control and processing customization, and is suitable for various industrial automation control systems.
Product parameters: The input voltage of IS2EDCFG18 is DC24V, the output voltage is DC24V, the input current is ≤1A, the output current is ≤1A. It also has overload protection and short circuit protection functions to ensure the safety of the equipment. In addition, it has a variety of input/output (IO) ports that can be configured according to actual needs.
Product application :S2OEDCFG1B/ is widely used in various industrial automation control systems, such as production lines, power facilities, transportation and so on. It can be used to monitor equipment status, control equipment action and automate the production process. In addition, it also supports a variety of communication protocols, such as Modbus, Profinet, etc., which can realize communication and control with other devices.
The EX2100 model IS200EDCFG1B, an EDCF model, is an I/O terminal board that measures the field voltage through seven selector Settings to reduce the scale of the bridge, a process that depends on the type of application of the bridge.
The exciter DC feedback board IS200EDCFG1B is part of the exciter controller family produced by General Electric Company. This model is connected to a DC shunt that provides output feedback. The IS200EDCFG1B board is part of the high voltage interface system. This model is also part of the I/O terminal board, which primarily controls DC output and feedback as well as current voltage
The EDCF model field voltage feedback circuit provides a total of seven Settings on the selector that reduce the bridge voltage, but this depends entirely on the bridge setting application. The fiber optic cable connected to the IS200EDCFG1B model provides isolation voltage between the EISB board and the EDCF board and has high noise resistance.
The excitation current feedback from the IS200EDCFG1B model is measured via a DC shunt located on the SCR bridge. When the excitation current is operating normally, it will produce a low level signal with a maximum of 500 MV, which will be the input to another amplifier.
