Brand GE
Board type exciter

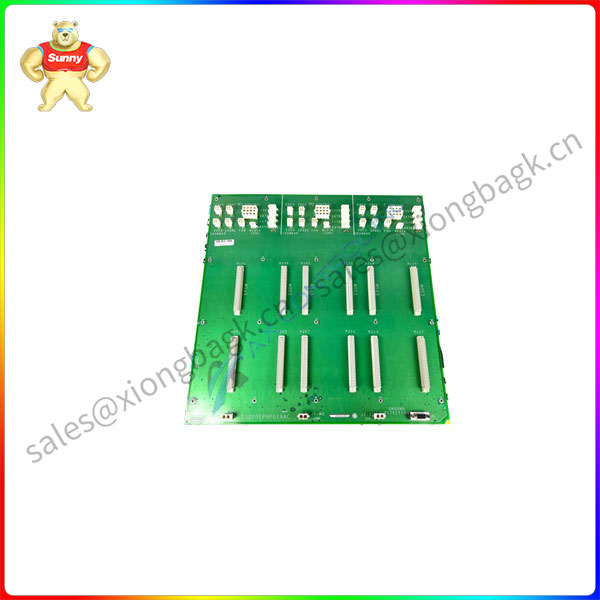

Model IS200EPBPG1A
IS200EPBPG1A is a pressure guided load cell manufactured by GE General Electric Company. The model is IS200EPBPG1A. The following describes the IS20OEPBPG1A product description, product specifications, product application, and brand name
Description:
Product Description :IS200EPBPG1A is an exciter pressure oriented load cell with high precision, high stability and fast response. It adopts advanced weighing technology, which can accurately measure and control the axial pressure of exciter.
Product parameters: The IS20OEPBPG1A has an operating range of 350XKX300YX80(/mm), a speed of 300mmisec, a resolution of 0.01mm, and a repetition accuracy of 10.05mm. It adopts stepper motor synchronous belt drive mode, the power supply is AC220V 50-60HZ 1KW, the machine size is 850×780×1500mm, the weight is about XX kg.
Product application :IS2OEPBPG1A is widely used in various industrial automation control systems, such as production lines, power facilities, transportation and so on. It can be used to monitor equipment status, control equipment action and automate the production process.
Ge IS200EPBPG1A exciter source backplane for EX2100 excitation control system. The function abbreviation or abbreviation in GE documentation and manuals is denoted as EPBP, which stands for exciter source backplane. This backplane has sections for M1, M2, and C control.
The main function of the IS200EPBPG1A module is as a power supply board. The acronym EPBP stands for exciter source baseboard. When the board is connected, it contains three EPSM (electrically isolated power module) and three EGDM (exciter ground detector). The power supply from the EPDM to the EPBP board will be 125 VDC. The board will send logical level power through the connected EPSM board.
The IS200EPBPG1A model houses the ground detection module, power distribution connector, and other power modules. There are thirty-three plug connectors on the upper half of the board in parts M1, M2 and C. In each section, there are five four-plug connectors, one two-plug connector, four three-plug connectors, and one twelve-plug connector.
