The IS200SAMBH1ABA is an industrial control module manufactured by General Electric (GE). This type of module is commonly used in automated control systems and is capable of implementing various control and monitoring functions.
Specifically, the IS200SAMBH1ABA module has a variety of input and output interfaces that can receive signals from sensors and output control signals to actuators or other devices. At the same time, it also has the function of data processing and analysis, which can process and analyze the collected data in real time, and provide various control strategies and optimization schemes.
In addition, the IS200SAMBH1ABA also has high reliability and stability, suitable for a variety of harsh industrial environments. It also supports a variety of communication protocols, and can be connected and communicated with various industrial automation equipment to achieve data sharing and control collaboration.
The IS200SAMBH1ABA is a PCB (printed circuit board) component manufactured by GE for the Mark VI and Mark Vle systems. These systems, released by GE, are designed to improve the efficiency of its gas and steam turbines through reliable management. Both are TMR (Triple Modular Redundancy) systems that provide multiple backups of critical control and protection parameters.

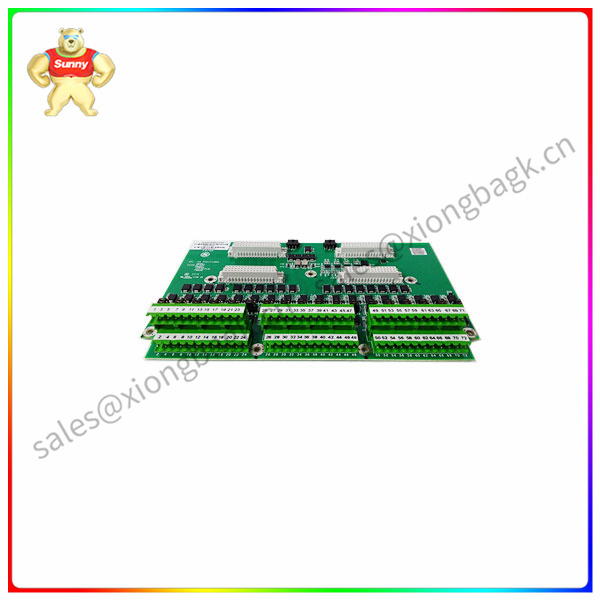

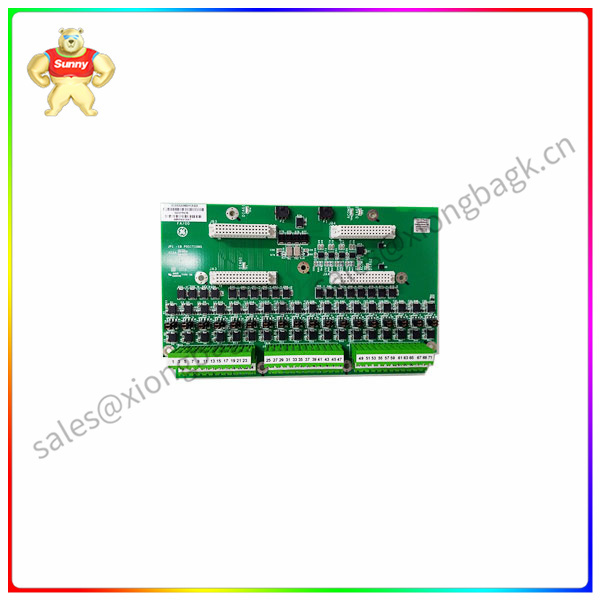

The IS200SAMBH1ABA is an acoustic monitoring terminal board. The double terminal board adds 18 inputs to the acoustic monitoring system through 36 terminals located on the terminal strip, which are used to connect two wire inputs. The board also has a terminal block with 36 terminal connections for adding two-wire buffer outputs for a total of 18 outputs. These outputs typically monitor voltage signals. The IS200SAMBH1ABA is fitted with a passive electromagnetic interference (EMI) filter that protects against high-frequency noise from external sources.

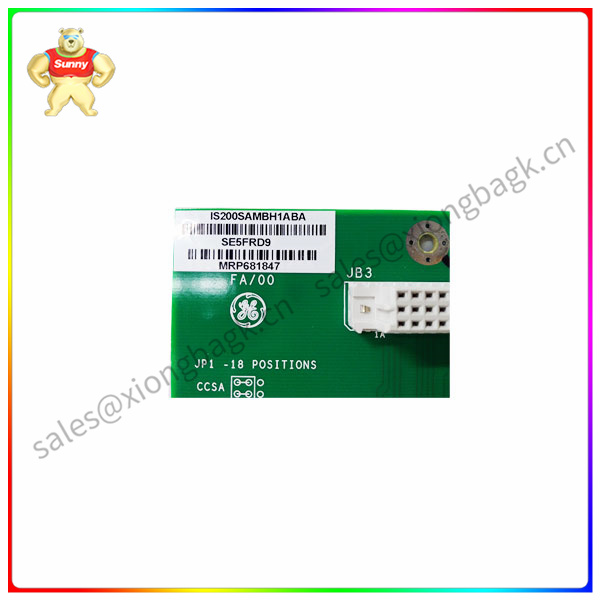

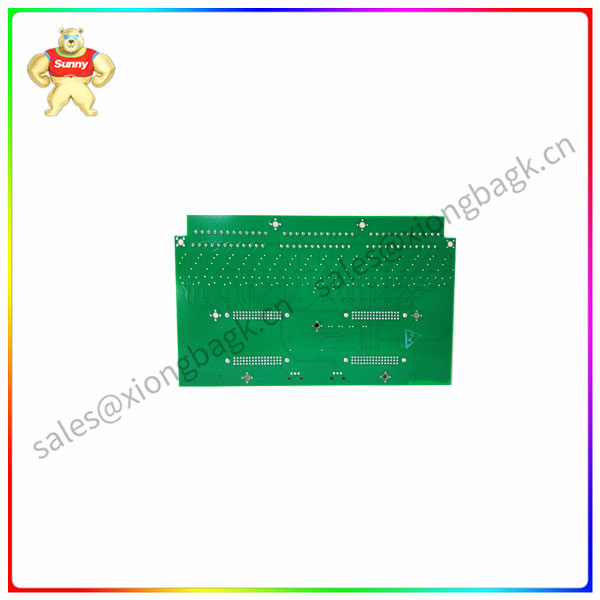

The IS200SAMBH1ABA design has an additional metal frame that surrounds all four edges of the PCB. The frame has multiple flanges, including top hat flanges placed along each long side of the plate, which has been drilled with mounting notches or holes. The boards are marked with various codes, including FA/00. The board assembly and the aforementioned frame are connected by brackets and screw mounts. The board measures 9.1 "x 5.625". Cooling is achieved by convection of air.
