Details: IS215UCVGH1A GE board assembly with panels created by GE for Mark VI systems
Product description

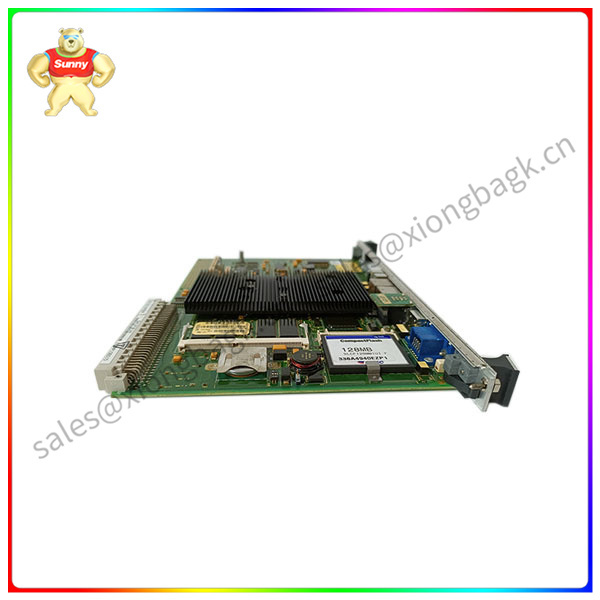

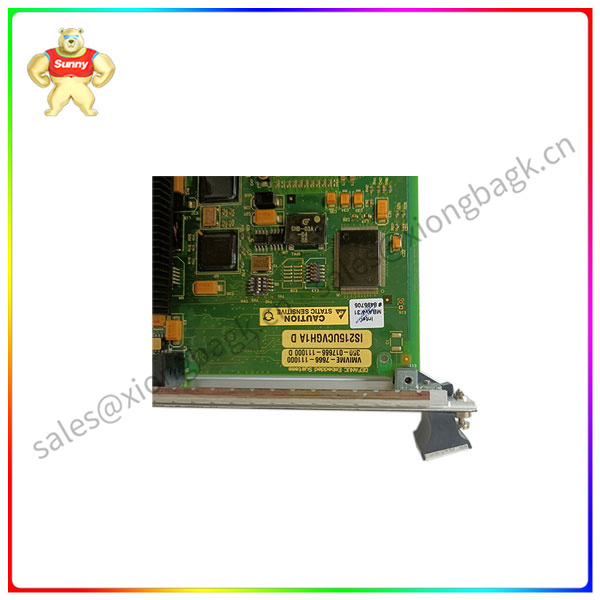

The IS215UCVGH1A is a circuit board assembly with panels created by GE for Mark VI systems. MKVI is a steam and gas turbine management system released by General Electric
Part of the Speedtronic series. The Speedtronic series began in 1969 and continued through the release of the Mark VI/Mark Vle in the 1990s.
The MKVI comes in five versions of the UCV controller. IS215UCVGH1A is the single-slot version of the controller. Any previous controller can be directly replaced with the IS215UCVGH1A. If motherboard is replaced
With earlier versions of the controller, you do not need to upgrade the backplane. IS215UCVGH1A Installed in the MME rack.

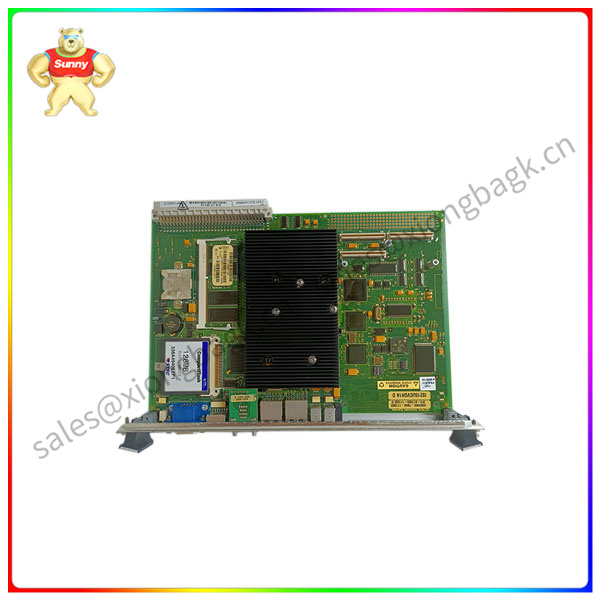

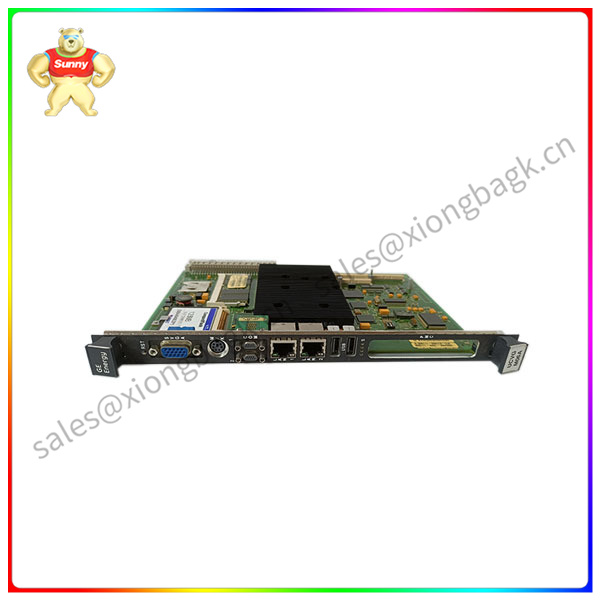

The IS215UCVGH1A uses an ultra-low voltage Intel Celeron 650 processor chip. The chip has 128 megabytes of SDRAM and 1.28 megabytes of flash memory. The board has a front panel. The panel has a reset open
Off, followed by an SVGA monitoring port. There is a keyboard/mouse port and two COM ports (side by side, labeled 1 and 2.) The board has two Ethernet ports stacked on top of each other. These are labeled
LAN1 and LAN2. There are two separate USB connectors, four LED indicators, and a panel opening.

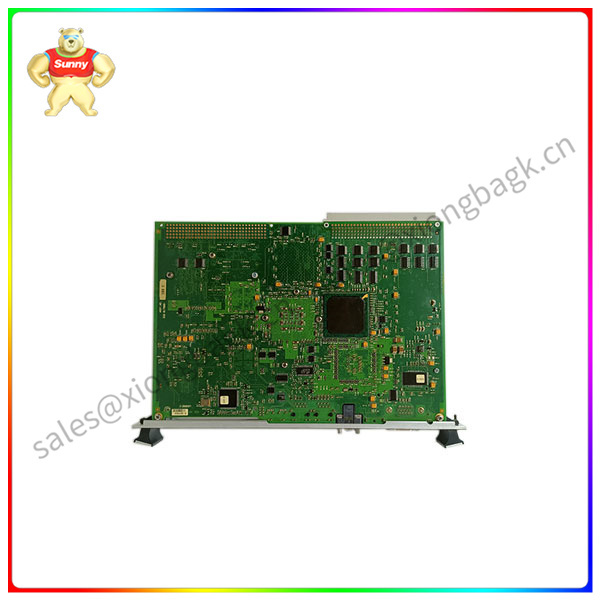

The IS215UCVGH1A board consists of several auxiliary boards. If an auxiliary device is added, there will be supports in some places to receive the auxiliary device. The board has a backplane. There are capacitance and inductance lines on the surface of the circuit board
- Loops, crystal oscillators, oscillating chips, jumper switches and integrated circuits.
- The IS215UCVGH1A provides logical operations, timing, and counting functions. In addition, it also has data shift, comparison and other operations, as well as algebraic operations, data transfer and other more complex operations. In terms of communication function, it has the function of data communication with the lower computer, the same computer or the upper computer.
