The IS220PDIOH1A is an I/O package module for the Mark Vle Speedtronic system. The Mark Vle is one of the late systems released by General Electric under the name Speedtronic. Electrical since the late 1960s
Since the release of Mark, Speedtronic systems have been used for industrial turbine control.

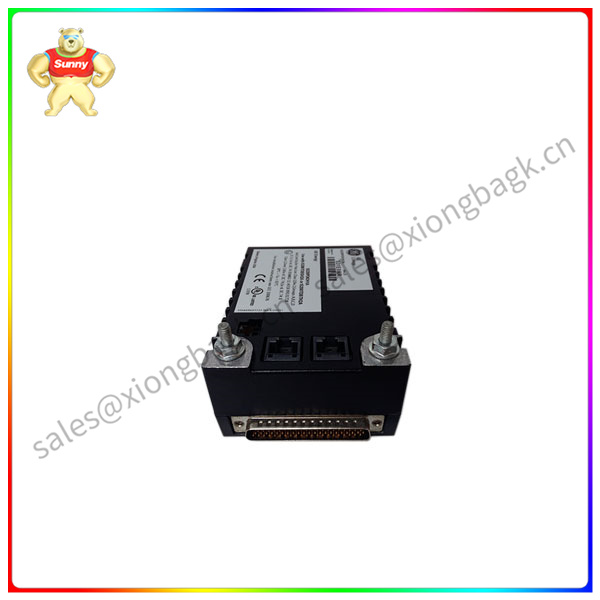

The IS220PDIOH1A has two Ethernet ends and its own local processor. It can be associated with

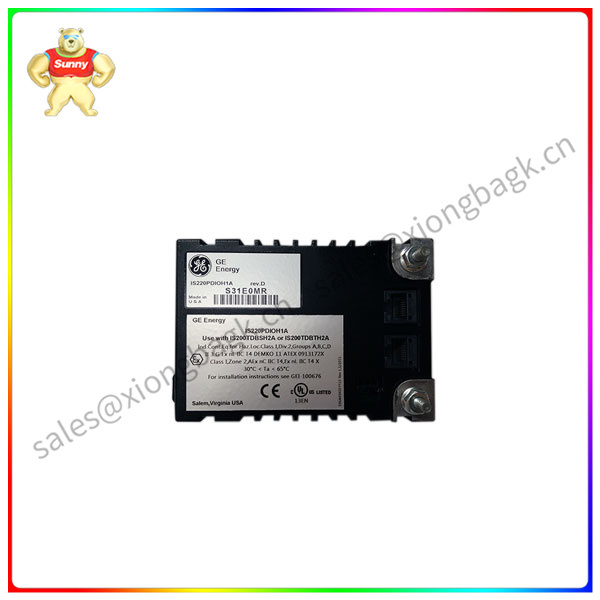

The IS200TDBSH2A and IS200TDBTH2A terminal boards are used together. These I/0 packets are given to the terminal board
The minimum rated voltage of the IS220P DioH1A is 27.4 VDC. The nominal rating is 28.0 VDC. Units and their associated terminal boards have field-specific wiring connection instructions that must be followed, including wire size and
Screw torque. This information can be found in the GE manual associated with the unit, such as the GEH-6725.

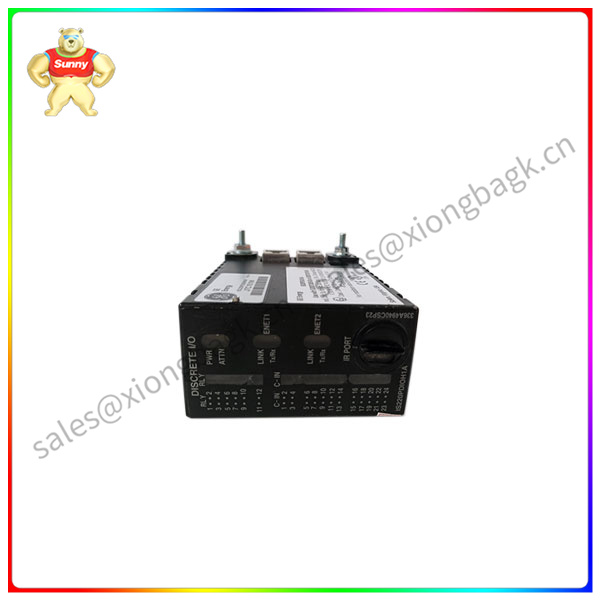

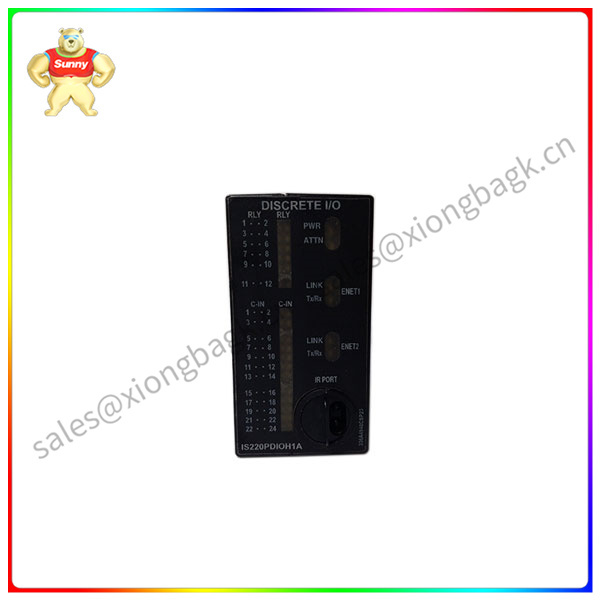

The front panel of the IS220PDIOH1A includes two Ethernet ports with LED indicators, a power supply on the unit to suck - an "attn"LED. Additional leds are associated with relay connections.
The advantages of IS220PDIOH1A mainly include:
Industrial grade design: The module has vibration resistance, impact resistance, high temperature resistance, dust and water resistance and other characteristics, suitable for a variety of harsh industrial environments.
Multiple ports: IS220PDIOH1A has two Ethernet ports, which can connect multiple devices at the same time to improve the efficiency of network communication.
High-speed data processing: The module has its own local processor, which can quickly process input and output data and improve the response speed of the entire control system.
Hazardous Site application: This module has been approved for use in hazardous sites, providing a guarantee for the safe operation of industrial control systems.
Status indication and alarm function: The module has LED indicators and additional leds associated with relay connections, which can provide status indication as well as alarm function, so that users can detect and resolve problems in a timely manner.
The disadvantages of IS220PDIOH1A mainly include:
High installation and maintenance costs: Compared with other types of I/O modules, the price of IS220PDIOH1A is higher, and the installation and maintenance costs are correspondingly higher.
High technical requirements: The use of this module requires a certain technical background and professional knowledge, and it may be difficult for users who do not have relevant skills to learn.
