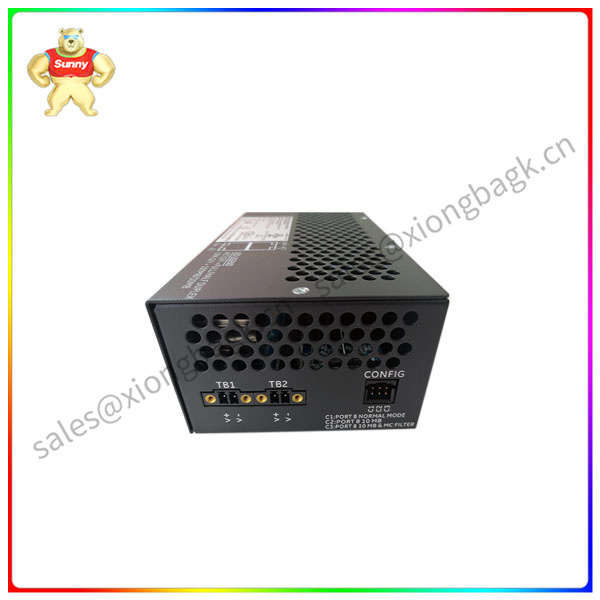

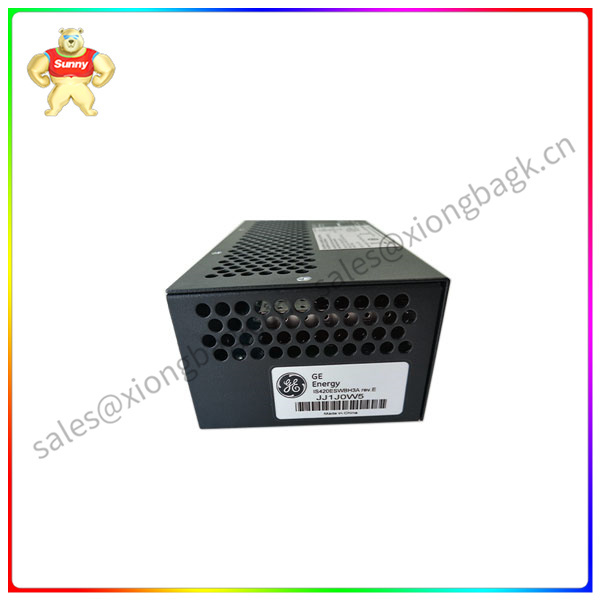

IS420ESWBH3A GE Safety control system

The Industrial Ethernet switch IS420ESWBH3A is a Mark designed by General Electric

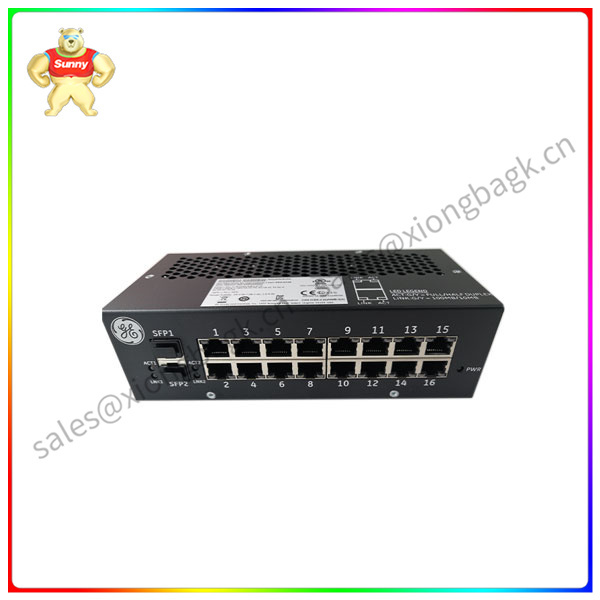

Part of the Vle security control system. The switch does not have any fiber ports, but has 16
A copper port, these copper ports are 10/100Base-TX RJ45 ports. wring
The main function of the machine is as a level 1 Ethernet switch, and its core function is buffering multicast and
Broadcast the packet.
Product description
The industrial Ethernet switch IS420ESWBH3A is part of the Mark Vle security control system designed by General Electric. The switch does not have any fiber ports, but has 16 copper ports, which
Some copper ports are 10/100Base-TX RJ45 ports. The main function of the switch is as a -level Ethernet switch, and its core function is to buffer multicast and broadcast packets. There should be plenty of room
To allow buffering - one packet per port; If multiple incoming streams are sent to the switch, it can only accept one of the multiple incoming streams and will buffer the rest for later transmission.

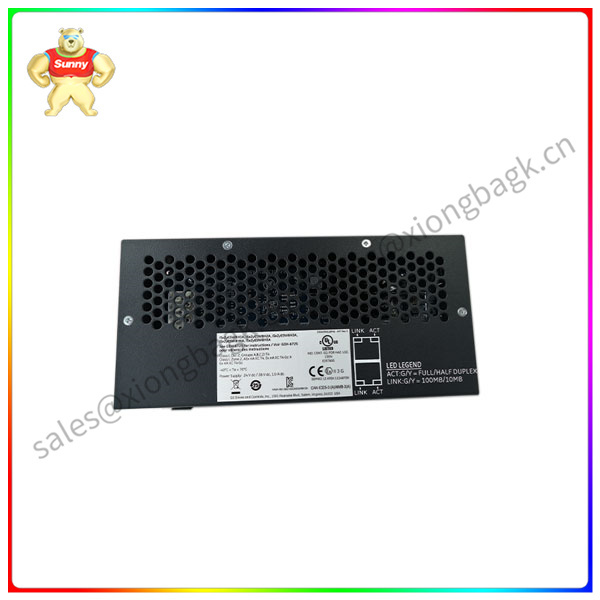

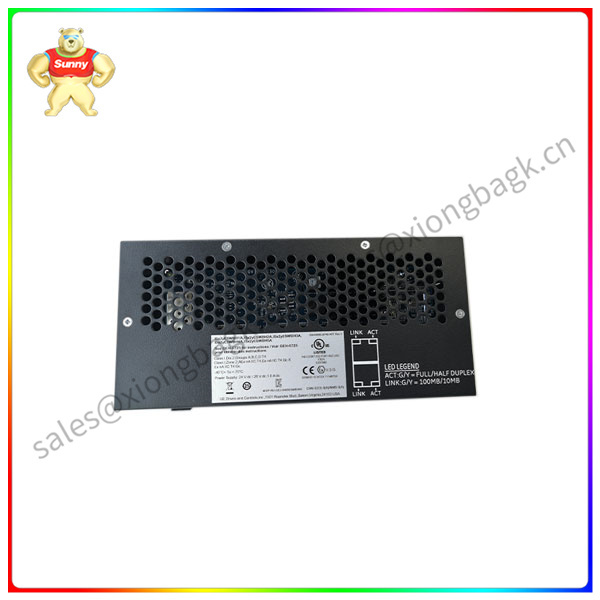

The IS420ESWBH3A switch has an LED indicator. There is a power indicator, and the phase indicator is the activity and link function indicator. When the link indicator is steady yellow, 10 is being used
MB link; If the value is steady green, a 100 MB link is being used. If no indicator is on, there is no link. They're also green and yellow in color, but they do
Blinking: When ED blinks green, the activity is in full duplex; when Ed blinks yellow, the activity is in half duplex.
The IS420ESWBH3A switch can be mounted in a variety of ways, either parallel or vertically on the D-IN rail, or on the panel if required. Please note that when the switch is installed in DIN guide
When on rails, different clamps are required, namely 259B2451 BVP1 and 259B2451BVP4 clamps.
