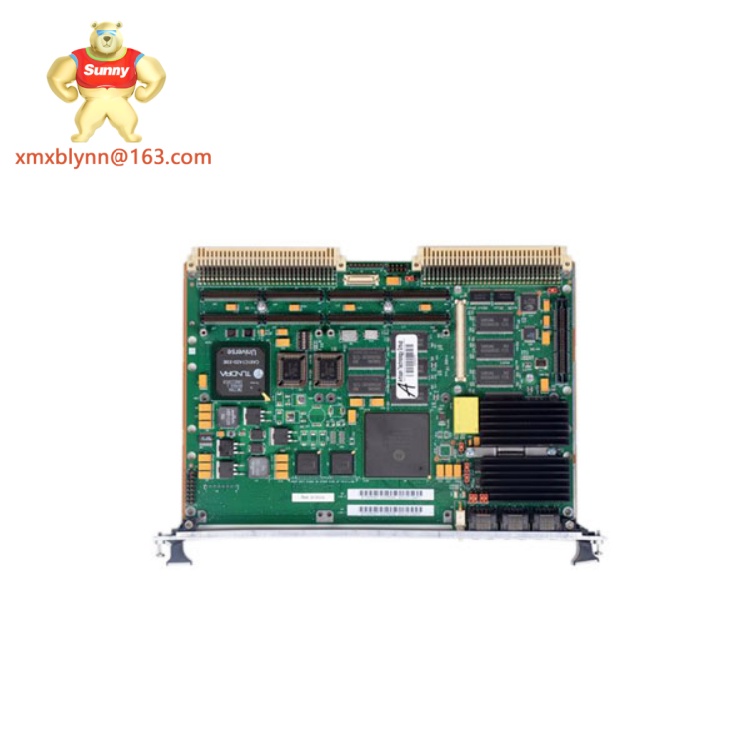

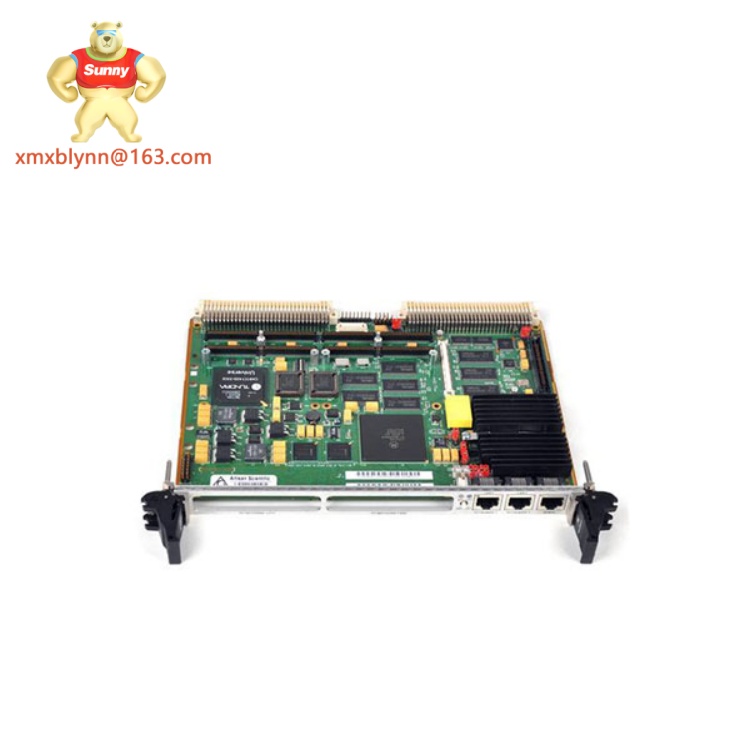

The Motorola MVME5100 is a rugged industrial single-board computer (SBC) designed to deliver reliable performance in harsh and mission-critical environments, standing as a cornerstone of Motorola’s renowned MVME series of embedded computing solutions. Engineered for durability and real-time processing, this module integrates high-performance computing with robust hardware, making it ideal for applications where system failure could disrupt operations or compromise safety.
In automation architectures, the Motorola MVME5100 serves as a central processing unit, handling data acquisition, executing control algorithms, and facilitating communication between distributed systems and field devices. Its core functionality includes processing real-time data streams, managing I/O interfaces, and supporting legacy and modern industrial protocols, ensuring seamless integration with existing infrastructure. What sets the Motorola MVME5100 apart is its balance of processing power—powered by a high-performance PowerPC processor—and rugged design, certified to withstand extreme temperatures, vibration, and electromagnetic interference. By combining reliability with versatility, the Motorola MVME5100 enables industries to maintain operational continuity in challenging conditions, from factory floors to remote industrial sites.
The Motorola MVME5100 is built for extreme durability, with an operating temperature range of -40°C to 70°C that allows it to function reliably in unconditioned environments—from freezing oil fields to high-temperature manufacturing plants. Its compliance with MIL-STD-810G ensures resistance to shock (50 g peak) and sustained vibration (10 g rms), making it suitable for mobile applications like railway control systems or offshore platforms where physical stress is constant.
A standout feature is its VME64x bus compatibility, which enables seamless integration with legacy VMEbus peripherals such as I/O modules, communication cards, and data acquisition devices. This backward compatibility protects existing investments in industrial infrastructure, while the 800 MHz PowerPC processor and 512 MB DDR SDRAM provide the processing power needed for real-time control and data analysis.
The
Motorola MVME5100 includes advanced diagnostic tools that monitor system health, memory integrity, and bus communication, alerting operators to potential issues via Ethernet or serial interfaces. Its dual Ethernet ports support network redundancy, ensuring uninterrupted data transmission in critical applications. With a compact 3U form factor, it saves rack space, while its rugged construction extends service life, reducing replacement costs and downtime. By balancing performance, durability, and compatibility, this module delivers long-term value in demanding industrial settings.
The Motorola MVME5100 excels in industries requiring computing hardware to withstand harsh conditions. In power generation, it serves as a control processor in turbine monitoring systems, analyzing vibration, temperature, and pressure data to optimize performance and prevent failures in coal, gas, or nuclear plants—environments with high electrical noise and temperature fluctuations.
In transportation, railway operators rely on the Motorola MVME5100 to manage locomotive control systems, processing data from brakes, engines, and navigation sensors to ensure safe operation across diverse climates, from desert heat to arctic cold. Its vibration resistance is critical here, as constant motion can disrupt less robust components.
Oil and gas operations use the Motorola MVME5100 in offshore platforms and pipeline monitoring systems, handling data from flow meters and pressure sensors in corrosive, high-humidity environments. In manufacturing, it controls assembly line robots and quality inspection systems, processing real-time data to maintain precision in automotive or aerospace production. Across all these scenarios, the Motorola MVME5100 ensures consistent performance, even in the toughest conditions.
- Motorola MVME510 – Predecessor to the Motorola MVME5100 with a slower processor (400 MHz) and limited memory, suitable for less demanding applications.
- Motorola MVME5500 – Higher-performance successor with a 1.2 GHz PowerPC and enhanced connectivity, ideal for data-intensive tasks.
- Motorola MVME2300 – Redundant power supply module designed to support the Motorola MVME5100 in critical systems requiring uninterrupted power.
- Motorola MVME3122 – 32-channel digital I/O module commonly paired with the Motorola MVME5100 for control and monitoring applications.
- Motorola MVME712M – Communication interface module that adds Fibre Channel capability to the Motorola MVME5100 for high-speed data transfer.
- Motorola MVME6100 – Compact variant of the Motorola MVME5100 with reduced I/O for space-constrained environments.
Installation of the Motorola MVME5100 requires insertion into a 3U VMEbus rack with compatible backplane connections, ensuring proper alignment to avoid pin damage. The module should be mounted in a rack with adequate ventilation—either forced-air cooling or natural convection—to maintain operating temperatures within -40°C to 70°C. Proper grounding of the VME rack is essential to prevent ESD damage and electromagnetic interference, which can disrupt processing and communication.
For maintenance, conduct quarterly inspections of connectors to check for corrosion or debris, especially in high-humidity environments. Use Motorola’s diagnostic software semi-annually to verify memory integrity, bus functionality, and processor performance. Firmware updates should be applied during planned outages to access the latest features and security patches. These steps ensure the
Motorola MVME5100 maintains reliable operation throughout its service life.
The Motorola MVME5100 is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., which includes free replacement service for any manufacturing defects. This warranty reflects confidence in the product’s rugged design and Motorola’s engineering standards, supported by Xiamen Xiongba’s global network of technical support. Whether assisting with installation, troubleshooting, or sourcing replacement parts, Xiamen Xiongba ensures timely assistance, ensuring the Motorola MVME5100 continues to perform reliably in critical industrial applications.
