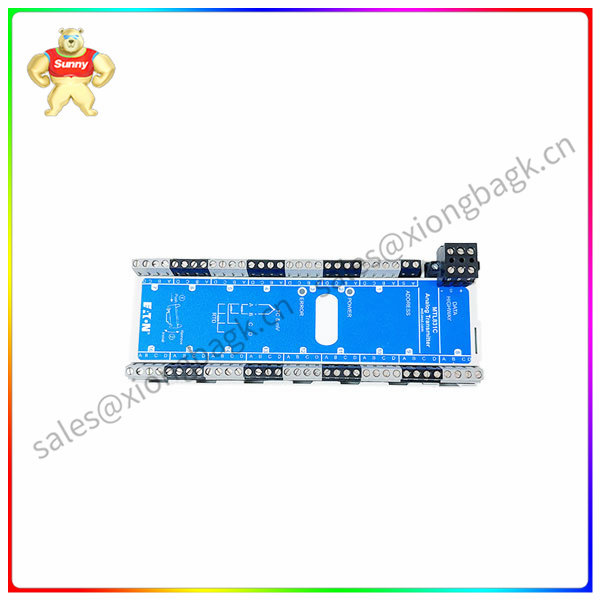

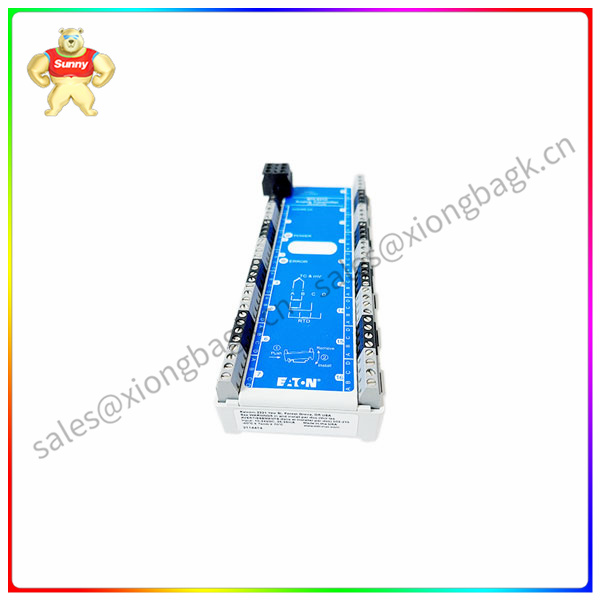

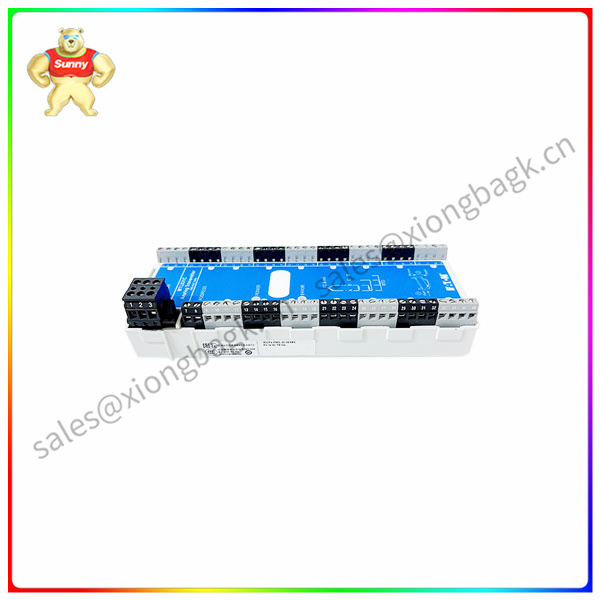

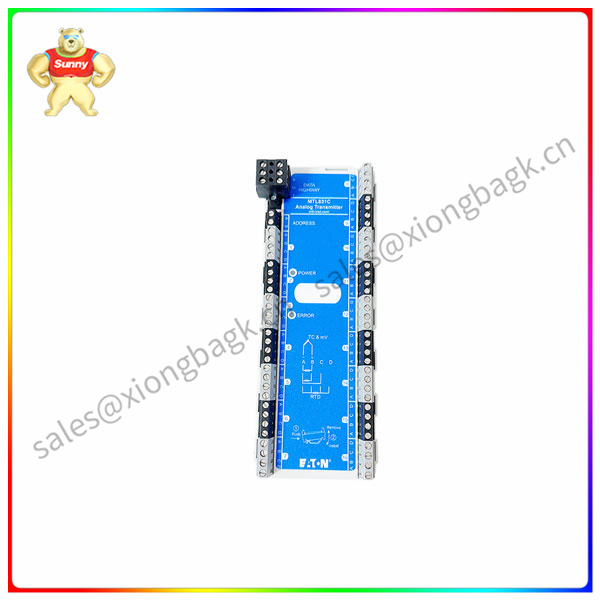

The MTL831C is an analog transmitter that can transmit a large number of hazardous area input signals to a safe area via a data highway consisting of a single shielded twisted pair wire. It is inherently safe and therefore can be installed in zone 0 hazardous areas or hazardous locations.
The MTL831C can monitor up to 16 inputs from THC or millivolt power sources or 2, 3, or 4-wire RTDS or potentiometers, and can transmit multiple hazardous area input signals. It has powerful data processing and communication capabilities, capable of transmitting signals and power over the longest distances, depending on the application, cable and noisy environment.
The MTL831C transmitter can be connected to one or two MTL838C receivers, and the transmitted information can be received and translated. In addition, the MTL831C provides output representations of Modbus serial data inputs as well as status information. When installed in hazardous areas, the data highway must be protected by the MTL5553/MTL5053 isolator/power supply installed in safe areas.
Overall, the MTL831C is an analog transmitter for transmitting signals in hazardous areas, with powerful features and reliability.
An analog MTL831C transmitter is a device that converts a physical quantity into an analog signal. It is usually used in industrial automation, process control and measurement, and can convert physical quantities such as temperature, pressure, liquid level, and flow into electrical signals, and output to other devices or control systems.
An analog transmitter usually consists of a sensor and a signal processing circuit. The MTL831C sensor is used to sense the measured physical quantity and convert it into an electrical signal; The signal processing circuit processes and amplifies the electrical signal output by the sensor to output standard analog signals, such as 4-20mA current signals or 0-10V voltage signals.
There are many types of analog transmitters, common MTL831C temperature transmitters, pressure transmitters, liquid level transmitters and so on. Their working principle is basically the same, both of them sense the change of the measured physical quantity through the sensor, and then convert it into an analog signal output through the signal processing circuit.
When using analog transmitters, it is necessary to choose the appropriate model and specification to adapt to different physical quantities and measurement ranges. At the same time, it is also necessary to pay attention to the installation and use methods to ensure the normal operation and measurement accuracy of the transmitter.
