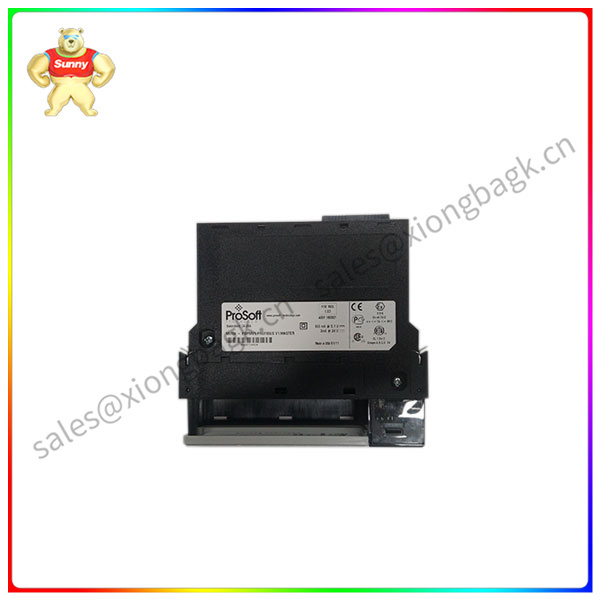

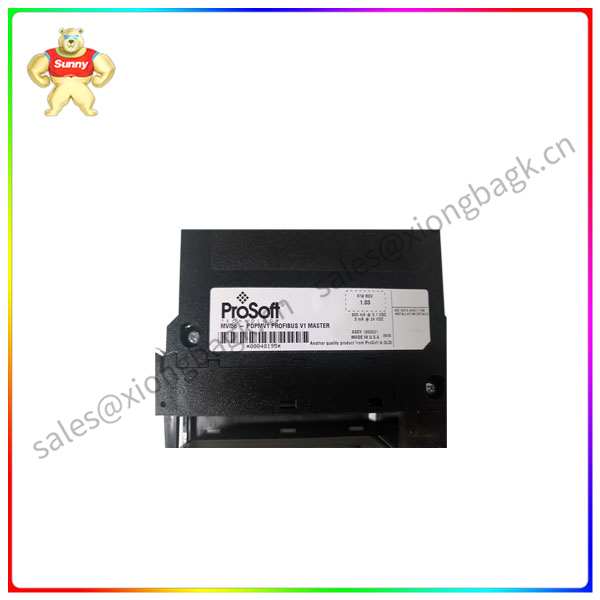

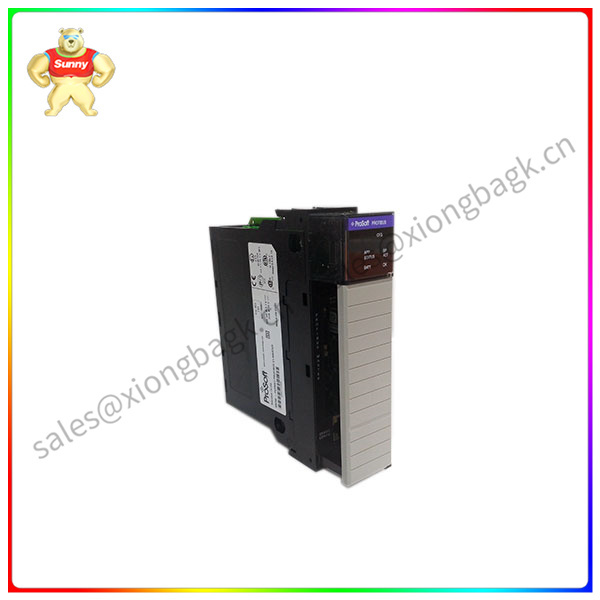

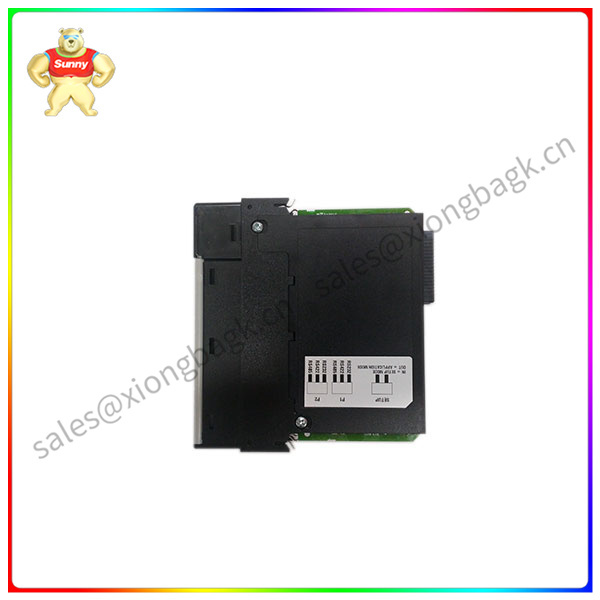

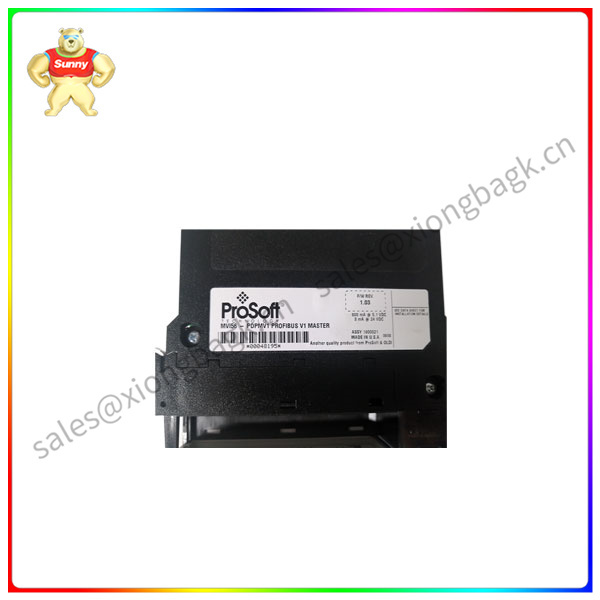

The MVI56-PDPMV1 is a ControlLogix platform compatible module. This module is a Profibus DP V1 compatible module that acts as the main device in the Profibus network. The module was developed by Prosoft Technology, a partner company of Roxy Automation, and is compatible with Allen-Bradley PLC. The MVI56-PDPMV1 has one (1) optically isolated RS485 port and supports the PROFIBUS DP Version 1 protocol. Up to 125 PROFIBUS slave devices can be connected to this port, which is also compatible with PPROFIBUS Repeaters. The module is capable of configuring up to 1536 cycle bytes and 1536 output bytes and supports extended diagnostic data.
The MVI56-PDPMV1 is a Profibus DP V1 master station communication module manufactured by Rockwell Automation and compatible with the ControlLogix platform. It has some notable features, including:
Compatibility: The MVI56-PDPMV1 is a Rockwell Automation manufactured module that is compatible with the ControlLogix platform, which makes it particularly suitable for use in Rockwell Automation systems.
Master device control: As the master device in Profibus DP network, this module can control multiple slave devices to achieve centralized control.
Data transfer: The MVI56-PDPMV1 has an optically isolated RS485 port that supports the PROFIBUS DP Version 1 protocol, and up to 125 PROFIBUS slave devices can connect to this port, which is also compatible with PPROFIBUS Repeaters. It is capable of configuring up to 1536 cycle bytes and 1536 output bytes, and supports extended diagnostic data.

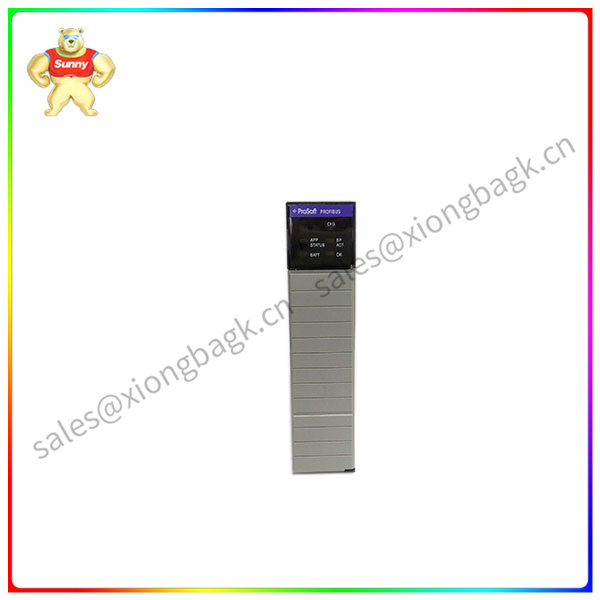

Diagnostic function: The module has embedded LED status indicators that describe the operational status of the module, including ready, running, error, and token indicators. These indicators help with troubleshooting and diagnosis.
Other features: MVI56-PDPMV1 supports alarm handling, synchronization, and freeze commands, and supports PROFIDrive version parameter read and write operations, multicast, and broadcast telegraphy.
In summary, MVI56-PDPMV1 is a powerful Profibus DP V1 master station communication module, which has a wide range of application prospects.
