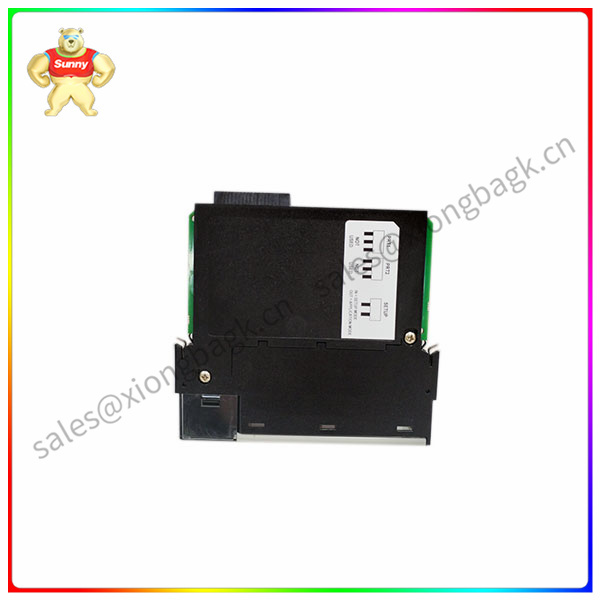

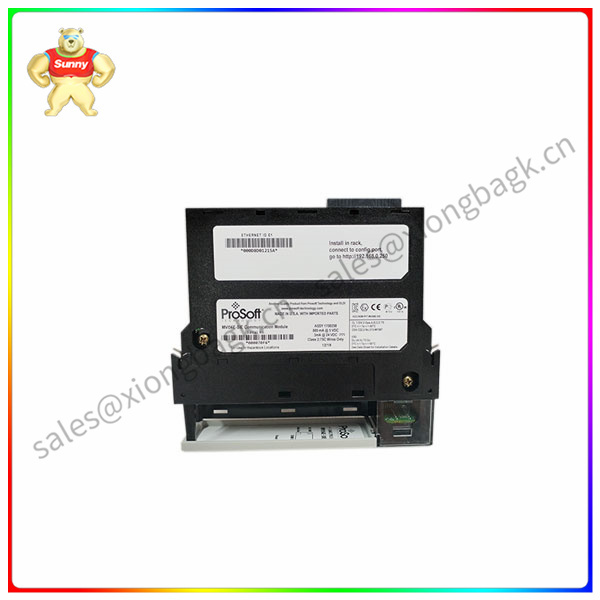

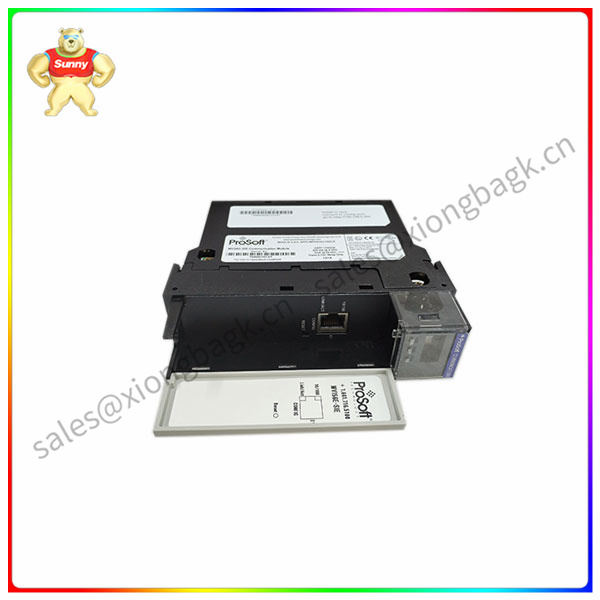

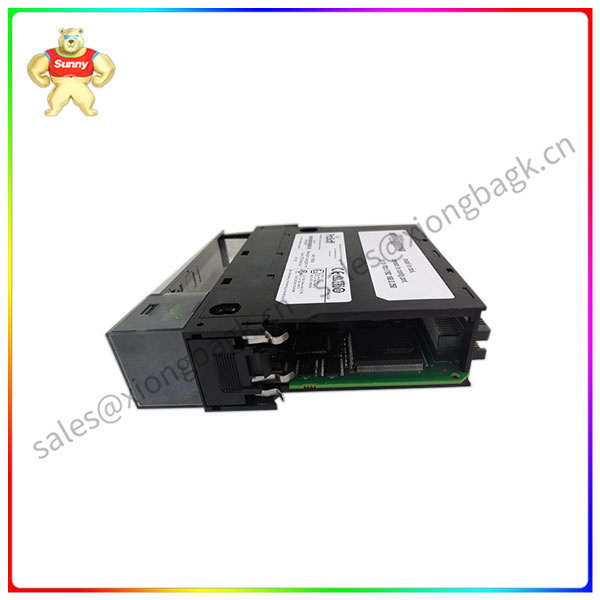

The MVI56E-SIE is an industrial Ethernet communication module manufactured by ProSoft Technology and designed for ControlLogix systems. It comes with a 5-foot Ethernet cable (pass-through configuration) and a ProSoft solutions CD or ProSoft solutions DVD with module configuration tools.
The MVI56E-SIE module is a single-slot 1756 ControlLogix backplane compatible, supports 10/100 Mbps Ethernet with automatic cross detection, has user-defined module data memory mapping, and can store up to 5000 16-bit registers. It also supports CIPconnect enabled network configuration and diagnostic monitoring using the ControlLogix 1756-ENxT and 1756-CNB modules and EtherNet/IP pass-through communication.
In addition, the MVI56E-SIE has an operating temperature range of 32 to 140 degrees Fahrenheit and a storage temperature range of -40 to 185 degrees Fahrenheit. It has a vibration rating of 5 G, from 10 Hz to 150 Hz.
ProSoft Technology's MVI56E-SIE module Siemens I Ethernet guest F-terminal communication module, designed for ControlLogix systems. It allows ControlLogix PACs(programmable from
Dynamic controller) as an Ethernet client interfaces with up to 20 Siemens S7-200, S7-300, S7-400, S7-1200 and S7-1500 PLCS that work as Ethernet servers. the
Modules are certified to RoHS, CE and IECEx standards. The MVI56E-SIE module comes with the following components: a 5-foot Ethernet cable (pass-through configuration) and a ProSoft that includes the module configuration
solutions CD or ProSoft solutions DVD. The MVI56E-SIE module uses the ProSoft configuration generator to manage configuration files through the graphical configurator and also allows viewing of module diagnostic information.
The MVI56E-SIE module is compatible with a single slot 1756 ControlLogix backplane. The module's current load is 800 amps at 5 volts DC and 3 Amps at 23 volts DC. This module supports automatic tape delivery
Fork detection of 10/100 Mbps Ethernet. The Ethernet interface is an RJ-45 interface with ED indicators for link and activity. The 4-character alphanumeric ED display on the module can be used to display the status
And diagnostic information. The module is also provided with an LED indicator to show the battery status, application status and module status. The operating temperature range of the MVI56E-SIE module is 32 to 140 degrees Fahrenheit, storage temperature
Degrees range from -40 to 185 degrees Fahrenheit. From 10 Hz to 150 Hz, the module has a vibration rating of 5 G. The operating impact rating is 30 G.Ethernet communication module is a module used for Ethernet communication, it can provide absolute support for TCP/IP communication in any occasion, support PLC Ethernet communication module to connect multiple Ethernet PLC, up to 254 Ethernet interface PLC or touch screen. The standard communication of this type of module is mainly used to transmit structured data, while supporting a variety of different operating voltages to meet various power needs
