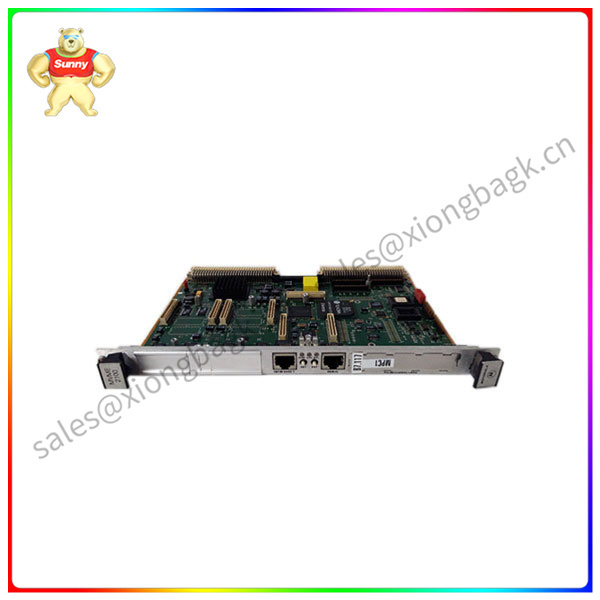

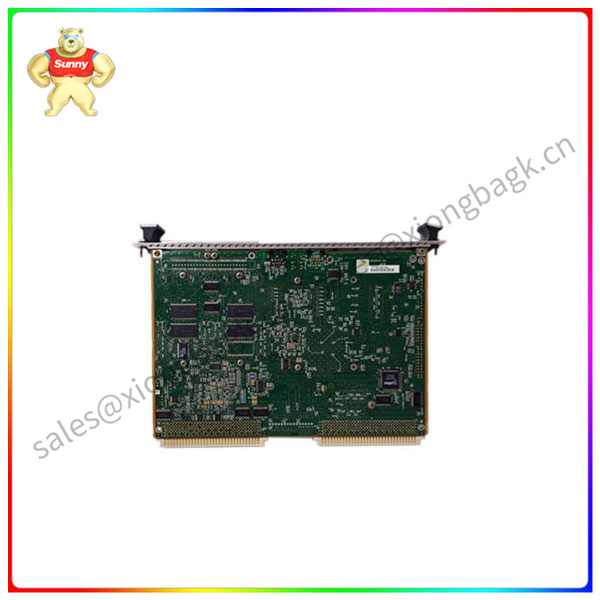

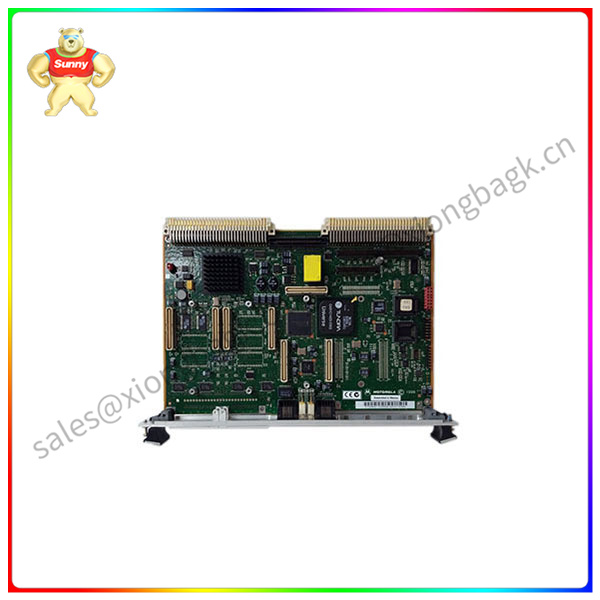

MVME2100 Technical specifications
The MVME2100 series VME processor modules are a series of highly modular single-board computers suitable for VME applications. At the heart of the MVME2100 is the MPC8240, a fully integrated PowerPC stand
A microprocessor, MPC60x class core, advanced memory controller, and Peripheral Component Interconnect (PCI) interface. With a combination of MPC8240 and PCI Sandwich card (PMC) and pcmip sandwich slot, the MVME2100
We provide customers with high-performance building blocks for industrial automation I/O demonstrations, telecommunications, medical science or imaging applications.
■MPC8240 32-bit microprocessor
■L1 cache -- 16KB/16KB MPC60x class
■32MB onboard SDRAM with optional ECC protection
■ Two 32-pin PLCC/CLCC sockets for flash memory; Up to 1 MB of onboard firmware capacity or user-specified requirements
■ User specified 4MB on-board flash memory requirements
■ One IEE P1386.1 compliant 32-bit PMC slot with front panel and P2 I/O
Three 32-bit PC MIP expansion slots, compatible with the VITA 29 draft standard: one type slot with rear panel /0 and two type slots with front panel I/O
■ 32-bit PCI expansion sandwich connector
■ Ethernet transceiver interface, with 32-bit PCI local interface bus DMA, 10/100Mb/s, with automatic negotiation speed selection
■8K x 8 NVRAM and calendar clock with replaceable backup battery
Four 32-bit timers, - one 16-bit timer, and one watch |] dog timer
