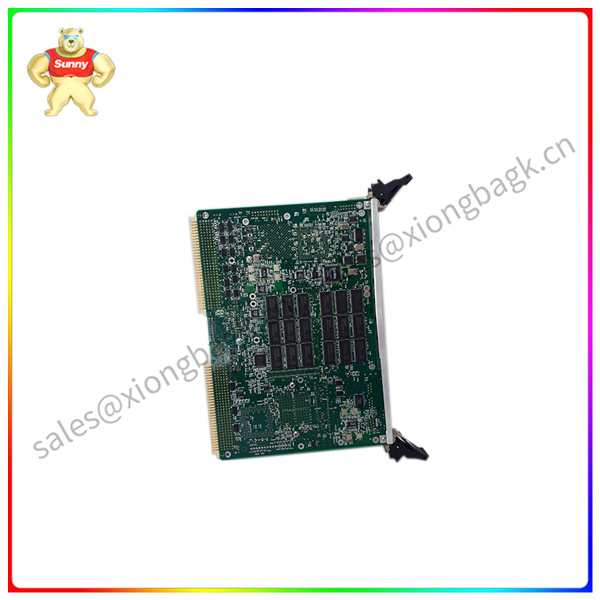

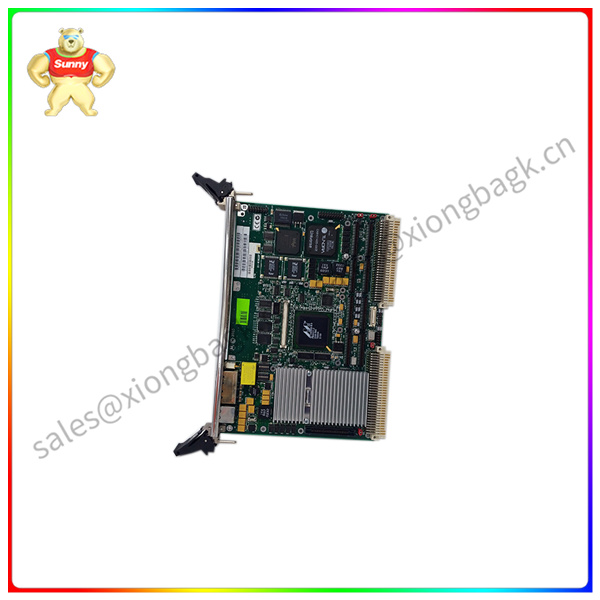

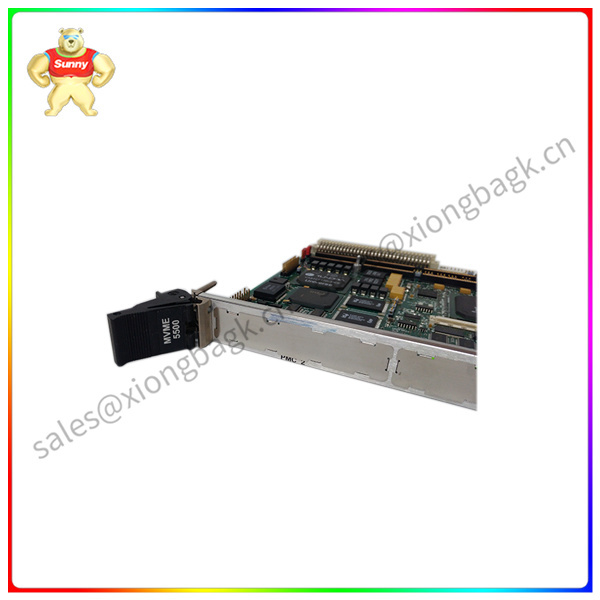

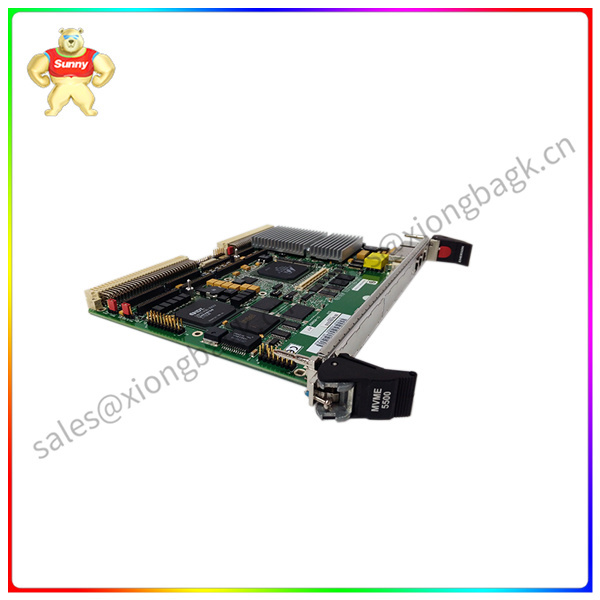

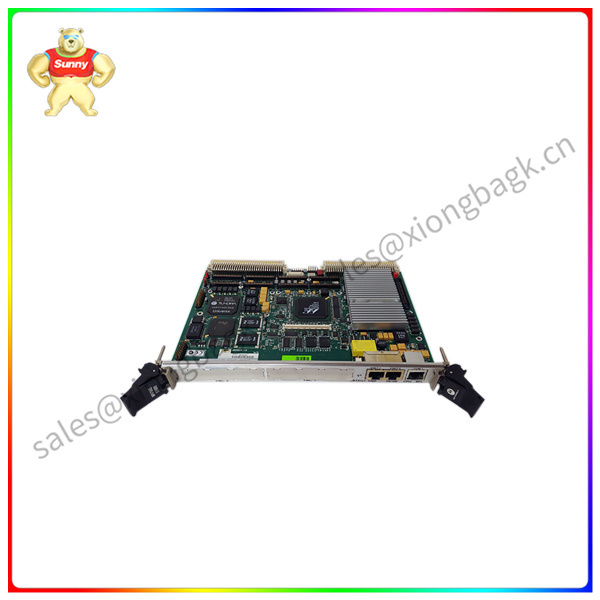

The MVME5500 is MOTOROLA's embedded computing platform for embedded computing and control. This product is not a digital quantity control module, but a computer hardware for embedded calculation and control. It is based on PowerPC architecture and integrates a variety of hardware interfaces and communication interfaces to meet the needs of various embedded applications.
With high reliability and stability, the MVME5500 can maintain normal operation under various environmental conditions. It also has a low-power design that helps reduce energy consumption and cooling needs. In addition, the MVME5500 supports multiple operating systems and programming languages for easy development and debugging.
In the field of automation, the MVME5500 can be used in a variety of embedded application scenarios requiring high performance, stability and reliability, such as industrial control, medical equipment, aerospace and other fields. It can also be integrated with various communication networks for remote monitoring and control.
In short, the MVME5500 is a high-performance, reliable, and stable embedded computing platform for a variety of embedded application scenarios requiring high performance, stability, and reliability.
The MVME5500 is the latest flagship in MOTOROLA's VME product line, achieving a higher level of performance in a single VMEbus slot. The MVME5500 uses the latest MPC7455 processor
Line speeds of 1 GHz and above are ideal for data-intensive applications. The MVME5500 not only delivers faster processor performance; It provides balance from the processor, memory, local bus, and /0 subsystem
Performance. The powerful Marvell Discovery system controller supports 133 MHz host bus and 133 MHz SDRAM memory bus, making it ideal for high-speed processors. To make system I/O with excellence
To match the processor performance, the MVME5500 offers dual 64-bit 33/66 MHz PCI buses. Each PCI bus has a PMC site that supports cards running at 33 or 66 MHz.
The Universe II VME interface and PMCspan connector are isolated from the PMC site on a transmitted 33 MHz PCI bus segment, so both PMC sites are able to operate at 66 MHz.
The MVME5500 also offers one megabit Ethernet interface, one 10/100BaseTXI Ethernet interface, and two serial ports. All of these constitute a well-balanced high-performance subsystem that can be implemented
Unmatched performance. The MVME5500 series is designed to meet the needs of original equipment manufacturers serving the defense and aerospace, industrial automation, and medical imaging segments. Seek to apply "technology more
Customers who remain backward compatible with their existing VMEbus infrastructure can upgrade to the MVME5500 series to take advantage of enhanced performance features.
MVME5500 Data Manual
MVME5500-0163, MVME5500-0161
MPC7455 processors with speeds of 1 GHz and above
■256KB on-chip L 2 cache and 2MB level 3 cache
High performance AltiVec coprocessor
Computing application
■ 52MB onboard SDRAM ECC memory and 512MB,
Add memory through the memory sandwich card, cop
A total of 1GB of memory
■40MB flash memory (32MB welded, 8MB input
Electrical outlet)
Dual PC bus and dual PMC site with bus speed
Up to 66 megahertz
■ Gigabit Ethernet interface and 10/100BaseTX
Ethernet interface
■ 64-bit PCI sandwich connector is allowed
Up to four or more PMCS
■ I/O compatibility with MVME51xx series
■ Single VME slot, even with two fully configured
