Applied voltage: 15 to 60VDC (Max)
Calibration requirements: Modules and end components do not require calibration. Each channel is isolated from all other channels and geoelectrics. The module can withstand a 600VAC voltage applied for one minute between any channel and ground or between a given channel and any other channel without damage.
Communication is communicated via a redundant 2Mbps module fieldbus with its associated FCM or FCP

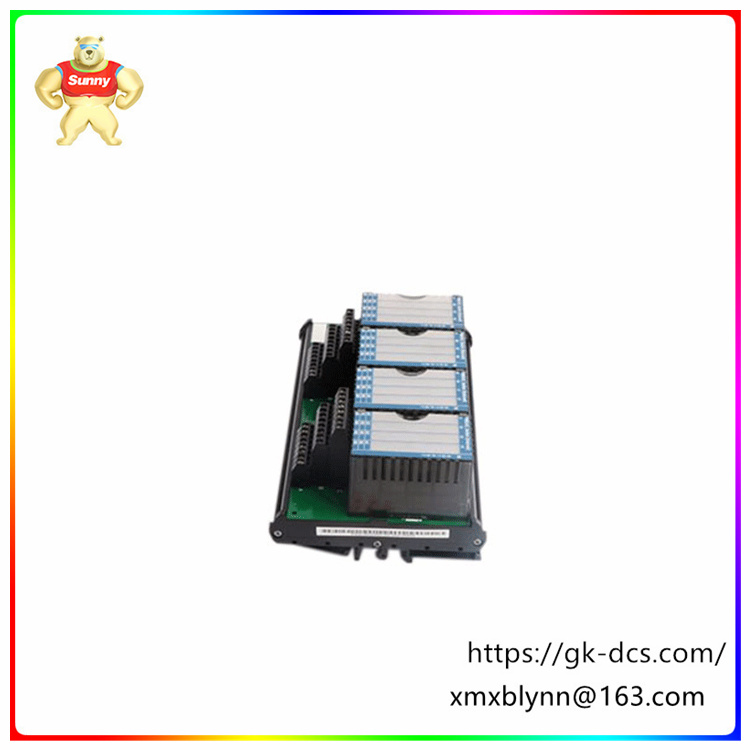

Foxborough: P0916NG
Inductive load: The module output may require a protective diode or metal oxide varistor (MOV) to be connected to the inductive load.
Load current: 2.25A per channel (Max)
Load current - Surge: 8 A at 20 ms per channel at 30°C (maximum), 6.4 A at 20 ms per channel at 70°C (maximum).
Off-state leakage current: 0.1 MA (Max.)
On-state voltage drop: 0.2V at 2.25A (Max)
Output channels: Sixteen isolated channels
Power requirements: Input voltage range (redundancy) 24VDC +5%, -10% power consumption (Max)
FOXBORO P091 6NG Features 1:
Operation function: including logical operation, time and counting function.
Computing functions: data shift, comparison and other computing functions.
Operation function: algebraic operation, data transfer, etc.
Arithmetic function: analog PID arithmetic and other advanced arithmetic function.
It is recommended to consult professionals for specific features.
FOXBORO P091 6NG Application areas
FOXBORO P091 6NG Application areas include 1:
Chemical oil and gas, petrochemical, pulp and paper, food and beverage, water and sewage treatment industries.
