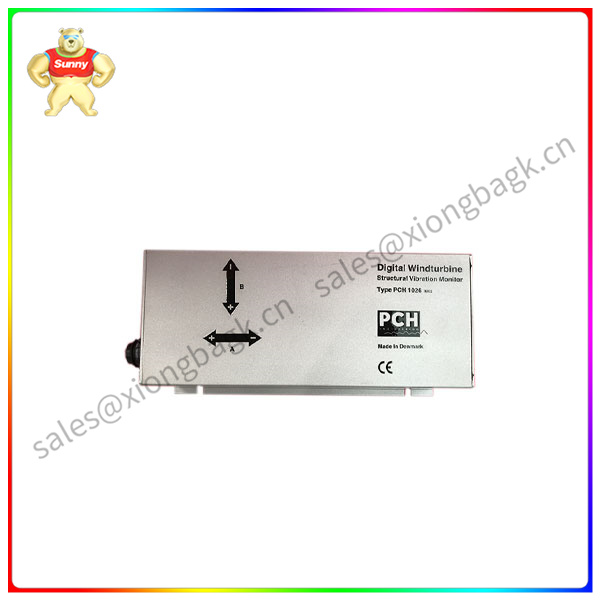

PCH1026 Low frequency structure vibration monitor used in industrial control industry ESD control system accessories
● The CHT1012 software system can complete all Settings through RS-232 string C, and can
● Setup and display can also be connected to an external PC or PLC via the optional RS-485
● The logging log in the PC software keeps all the Settings of each monitor, which is monitored by
Product Description: PCH1026 low frequency ladle vibration monitor
● Wind turbine (wind turbine)● Tower vibration Monitoring ground vibration in accordance with ISO4866 drive mechanism oscillation (pitch turbine)
● Steel tower side vibration (stall turbine)● Bridge ● Chimney
Unified setting
● The CHT1012 software system can complete all Settings through the RS-232 serial port, and the group can be arbitrarily changed in the field;
Settings and displays can also be operated remotely via an optional RS-485 external PC or PLC;
● The logging log in the PC software keeps all the Settings of each monitor, which is identified by the serial number of the monitor.
Instrument characteristics
● Built-in 3 vibration sensors (accelerometers);
● Triaxial measurements in directions A, B and C, and tower monitoring, showing the optimal tower monitoring information;
● Monitor four independent frequencies, either a single frequency from each sensor or four frequencies from one sensor;
● Experience with wind turbines and building applications has led to PCH1026's reliable filtering technology; .
● Measure effective value, maximum value, peak value or peak value;
●1 to 4 independent 4-20MA industry standard outputs;
●4 programmable independent alarm relays and 1 system fault relay;
● Each alarm relay has an independent programmable alarm threshold and delay time;
● Sensors and circuits are protected by built-in electronic monitoring devices, fault relays show fault conditions;
● Suitable for harsh temperature and humidity and electrical noise interference environment;
● All user-defined monitoring instructions can be executed.
