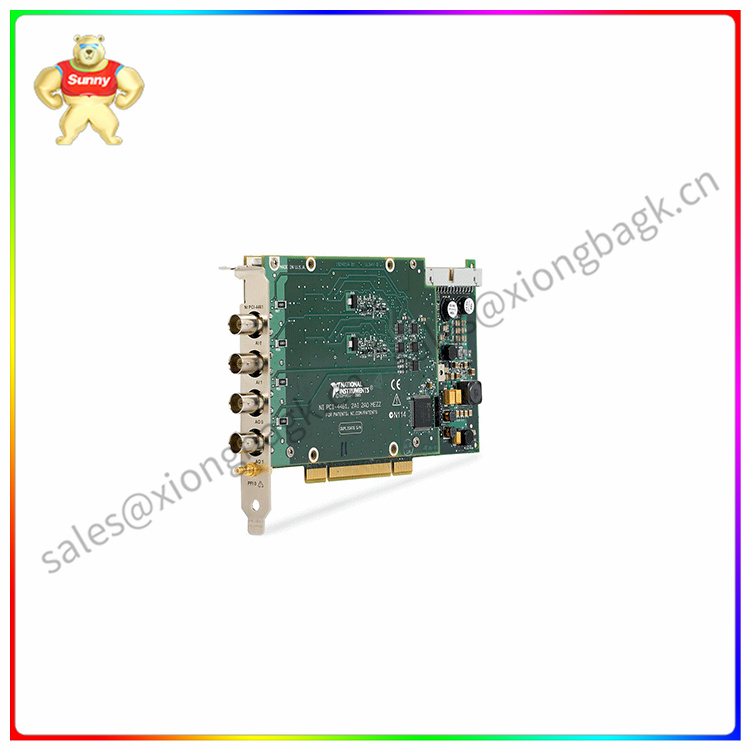

PCI-4461 is a high-precision data acquisition module designed for sound and vibration applications and manufactured by National Instruments (NI). It has a 24-bit resolution and a sampling rate of up to 204.8 kS/s, and supports dual input/dual output (2 synchronous analog inputs, 2 synchronous analog outputs). In addition, the PCI-4461 has a dynamic range of 18dB and an input range of ±316mV-42.4V, and offers six gain Settings.
The module also features software-optional IEPE conditioning and AC/DC coupling, as well as built-in anti-aliasing and TEDS capabilities. This gives PCI-4461 the flexibility to adapt to different data acquisition and processing needs, especially in the field of sound and vibration measurement has a wide range of applications.
PCI-4461 is a high-precision data acquisition module designed for sound and vibration applications with some significant benefits and potential drawbacks. The following is an analysis of its advantages and disadvantages:
Advantages:
High accuracy: The PCI-4461 provides 24-bit resolution, ensuring high precision data acquisition and measurement. This is important for applications that require accurate measurement of sound and vibration.
Wide dynamic range: It has a dynamic range of up to 118dB and can handle high dynamic range signals, which is suitable for various application scenarios.
Flexibility: The PCI-4461 offers six different gain Settings that allow you to adjust the signal gain to your specific needs, increasing the flexibility of your system.
Multi-channel synchronization: The PCI-4461 can be synchronized with other PCI-4461 boards to create a system with 6 synchronous inputs and 6 synchronous outputs, suitable for applications in high channel count systems.
Easy integration: As a PCI family module of NI, the PCI-4461 is highly compatible with NI's other software and hardware products for easy integration and expansion into existing systems.
Cons:
High cost: PCI-4461 as a high-precision data acquisition module, its cost can be relatively high and may not be suitable for applications with limited budgets.
Technical dependence: As a product of NI Corporation, PCI-4461 may have certain technical dependence. If you need to integrate with other brands of devices or systems, you may face some compatibility issues.
Professional training required: Due to its high precision and flexibility, the use of PCI-4461 may require some professional training and technical knowledge to ensure proper configuration and use.
It should be noted that the above advantages and disadvantages may vary depending on the specific application scenario, user requirements and use environment. When selecting and using PCI-4461, it is recommended to consider its advantages and disadvantages comprehensively, and evaluate and make decisions based on actual needs. At the same time, it is also very important to consult and cooperate with manufacturers, suppliers or professional engineers to ensure the stability and safety of the system.
