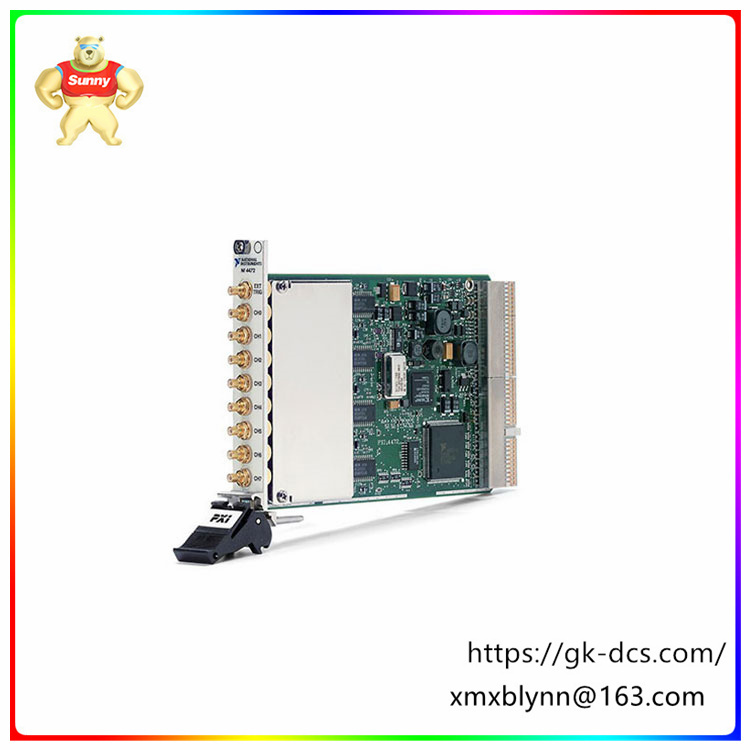

PCI-4472 usually refers to the NI PCI-4472 dynamic signal acquisition card manufactured by National Instruments (NI). This is an 8-channel dynamic signal acquisition card for high precision frequency domain measurement, suitable for a variety of applications, such as acceleration sensors and microphones. Here are some key features and specifications about PCI-4472:
Number of channels: Has 8 synchronous sampling analog input channels.
Signal conditioning: The input channel incorporates integrated circuit piezoelectric (IEPE) signal conditioning, which allows it to connect directly to IEPE sensors such as accelerometers.
Bandwidth and resolution: It has an alix-free bandwidth of 45 kHz, as well as a 24-bit resolution and a dynamic range of 110 dB.
Sampling rate: The maximum sampling rate is 102.4 kS/s.
Synchronization: The PCI-4472 supports T-Clock synchronization, ensuring that all channels are sampled synchronously at equal time intervals, and the synchronization time error is less than 10 nanoseconds. In addition, it can use the RTSI bus to synchronize with other NI boards.
Error calibration: Time measurement accuracy is ±0.02 microseconds, phase correction resolution is up to ±0.02 minutes. Under the condition of 50Hz, the phase measurement error introduced by the acquisition card is much less than the Angle difference limit of the 0.01 level transformer.
Software integration: When used with the LabVIEW Sound and Vibration kit or other software analysis tools, the PCI-4472 makes accurate measurements of a variety of times and frequencies.
Compatibility: In order to use certain features, such as MATLAB script nodes, specific versions of software, such as MATLAB 5.0 and later and LabVIEW 6.1 and later, need to be installed on the computer.
Applications: Due to its high accuracy and synchronization, PCI-4472 is particularly suitable for applications that require multi-channel synchronous data acquisition, such as vibration analysis, noise testing, and structural health monitoring.
When selecting and using PCI-4472, users should consider their hardware and software requirements, as well as the specific requirements of the application, to ensure optimal performance and accuracy. It is also a good choice to work with National Instruments' technical support team, who can provide expert advice on product configuration, installation and use.
The PCI-4472, a dynamic signal acquisition card produced by National Instruments, has some significant advantages and relatively few disadvantages. The following is an analysis of its advantages and disadvantages:
Advantages:
High precision measurement: The PCI-4472 provides a resolution of up to 24 bits and a dynamic range of 110 dB, ensuring high precision signal acquisition and measurement.
Multi-channel synchronization: The acquisition card has eight analog input channels for synchronous sampling, and the synchronization time error between all channels is less than 10 nanoseconds, which is critical for applications requiring multi-channel synchronous acquisition.
Broadband and high-speed sampling: The PCI-4472 has an alix-free bandwidth of 45 kHz and a sampling rate of up to 102.4 kS/s, making it ideal for capturing high-frequency and transient signals.
IEPE Sensor support: Integrated IEPE signal conditioning function allows direct connection to IEPE sensors such as accelerometers, simplifying hardware configuration and wiring.
Flexible software integration: The PCI-4472 integrates seamlessly with National Instruments' LabVIEW Sound and Vibration toolkit, MATLAB and other software tools for easy data processing and analysis.
Wide compatibility: Supports multiple operating systems and hardware platforms, and can flexibly adapt to different computing environments.
Cons:
Higher cost: As a professional-grade data acquisition card, the PCI-4472 can be relatively expensive and may not be suitable for users or projects with limited budgets.
Additional software support required: While the PCI-4472 is powerful on its own, to get the most out of its performance, users often need to purchase and install additional software kits, such as the LabVIEW Sound and Vibration kit, which adds to the overall cost.
Learning curve: For beginners or users who are not familiar with the National Instruments software platform, it may take some time to learn how to use PCI-4472 and its related software tools.
Hardware limitations: While PCI-4472 provides eight synchronous sampling channels, applications that require more channels may need to consider other, more advanced acquisition cards or solutions that employ multi-card synchronization.
Overall, the PCI-4472 is a powerful, high-performance dynamic signal acquisition card for applications that require high-precision, multi-channel synchronous acquisition.
