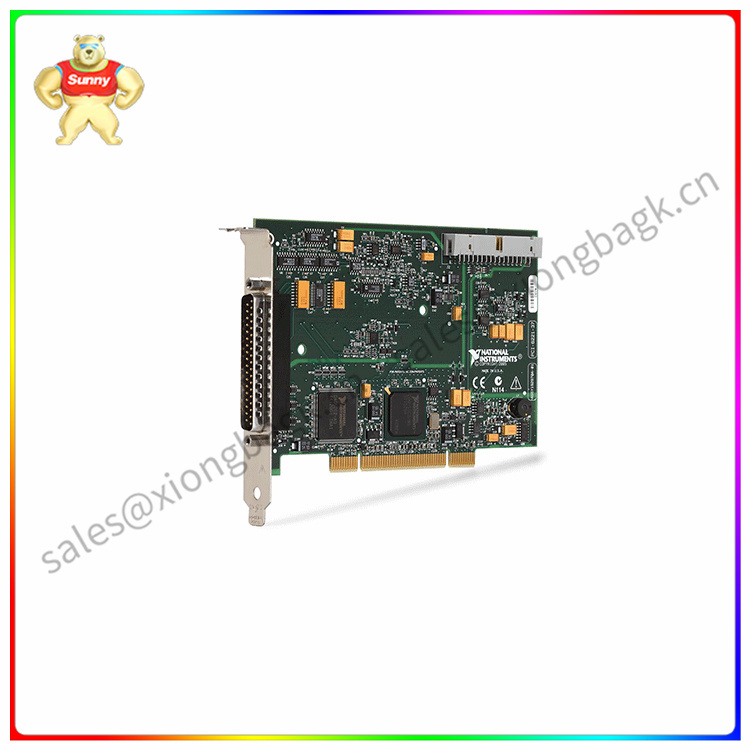

PCI-6221 is a multi-function data acquisition card manufactured by National Instruments (NI). It is a 16-way, 250KHz multifunctional DAQ (Data Acquisition) board with NI-MCall calibration technology and up to 24-way digital I/O ports.
The PCI-6221 has a 16-bit resolution and supports multiple systems, including Windows, Linux, real-time systems, MacOS, and RTX. It integrates 16-bit A/D conversion, 16-bit D/A conversion, digital input, digital output, counter and timer and other functions. In addition, the PCI-6221 provides analog I/O and associated digital I/O with 16 single-ended or eight differential analog input channels with 16-bit analog input resolution and a data acquisition rate of 250 kS/s.
The acquisition card has strong working stability and is suitable for harsh environment such as factory building and workshop. In addition, the PCI-6221 can be used with the Anni-DAQ mx driver and configuration utility to simplify the configuration and measurement process. In addition to automatic configuration, you can also configure using the Measurement & Automation Explorer (MAX) tool.
PCI-6221 has a wide range of applications in laboratory automation, research and manufacturing, making it ideal for design validation and manufacturing testing. At the same time, it is also a low-cost option with useful data acquisition (DAQ) capabilities.
The PCI-6221 is a versatile data acquisition card suitable for a variety of application scenarios. Here are some examples of application scenarios suitable for using PCI-6221:
Laboratory automation: The high performance and flexibility of the PCI-6221 make it ideal for laboratory automation. It can be used for automated testing, data acquisition and analysis to support a variety of experiments and research projects.
Research and Development: PCI-6221 is suitable for a variety of research and development fields, such as physics, engineering, biomedicine, etc. It provides accurate data acquisition and measurement, supporting researchers in experimental validation, data analysis, and model building.
Manufacturing and Quality control: During the manufacturing process, PCI-6221 can be used to monitor key parameters on the production line in real time to ensure product quality and production efficiency. At the same time, it can also be used for quality control and fault diagnosis, helping to detect and resolve potential problems in a timely manner.
Control Systems and automated testing: The PCI-6221 can be integrated with a variety of control systems and test equipment to provide accurate data acquisition and control functions. It is suitable for various automated test scenarios, such as mechanical test, electronic test and so on.
It should be noted that the specific application scenario selection should be based on actual requirements, system configuration, and budget factors. When choosing to use PCI-6221, it is recommended to consult and evaluate with a professional engineer or technician to ensure the stability and security of the system.
