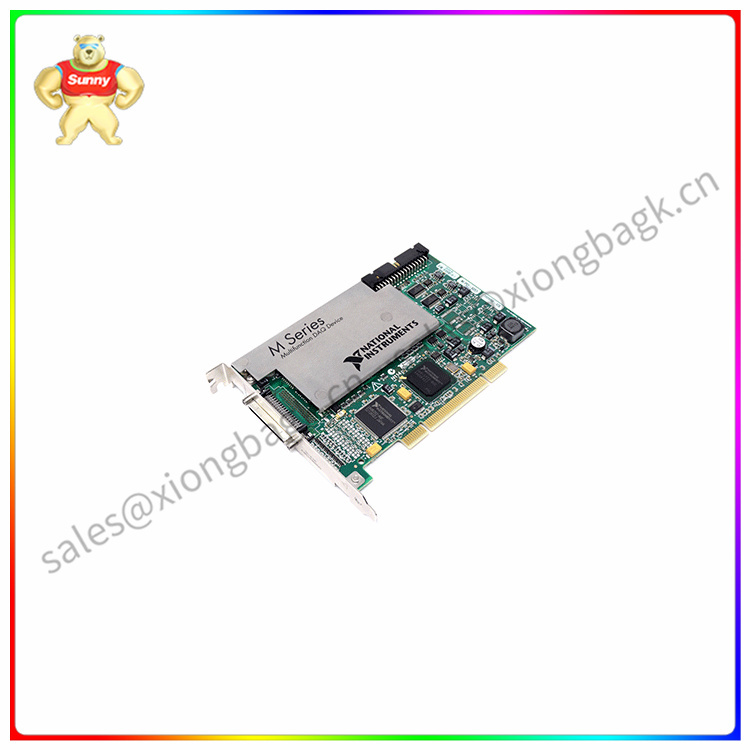

The PCI-6251 is a high-speed, versatile Data acquisition (DAQ) board manufactured by National Instruments (NI). It is a 16-bit resolution DAQ board with 16 analog input channels and 2 analog output channels.
The PCI-6251 can collect data at a sampling rate of about 1.25 MS/s in single channel operation and 1 MS/s in multi-channel operation. In addition, it also has two direct memory access (DMA) channels, which can be independently completed data transmission from the CPU, thus improving the efficiency of data processing.
The PCI-6251 supports both analog and digital triggering and has approximately 70 signal conditioning options, including A programmable low-pass filter that directly blocks high-frequency noise generated during A/D conversion. At the same time, it also has a differential connection mode, which can effectively suppress common mode noise.
Due to its high-speed sampling rate and high accuracy, PCI-6251 is widely used in applications requiring fast and accurate data acquisition, such as industrial automation, control systems, test and measurement. In addition, the PCI-6251 can be seamlessly integrated with NI's other software and hardware products for easy system integration and expansion.
The PCI-6251 is a high-speed and versatile data acquisition (DAQ) board with many advantages and potential disadvantages. The following is an analysis of its advantages and disadvantages:
Advantages:
High-speed sampling rate: PCI-6251 has a high-speed sampling rate, the single channel sampling rate can reach 1.25 MS/s, multi-channel sampling rate can reach 1 MS/s, suitable for applications requiring fast data acquisition.
High accuracy: The PCI-6251 has a 16-bit resolution, enabling accurate data acquisition and measurement.
Versatility: With 16 analog input channels and 2 analog output channels, the acquisition card supports analog and digital triggering, and approximately 70 signal conditioning options, providing a rich choice of features.
Independent data transmission: PCI-6251 is equipped with two direct memory access (DMA) channels, which can complete data transmission independently from the CPU, improving the efficiency of data processing.
Integration and compatibility: The PCI-6251 can be directly inserted into the PCI card slot of a PC for easy operation, and can be seamlessly integrated with other NI software and hardware products for easy system integration and expansion.
Cons:
High cost: As a high-speed and versatile data acquisition card, the PCI-6251 can be relatively high cost and may not be suitable for applications with limited budgets.
Technical dependence: As a product of NI Corporation, PCI-6251 may have some technical dependence. If you need to integrate with other brands of devices or systems, you may face some compatibility issues.
Professional training required: Due to its high-speed, versatile nature, using the PCI-6251 may require some professional training and technical knowledge to ensure proper configuration and use.
