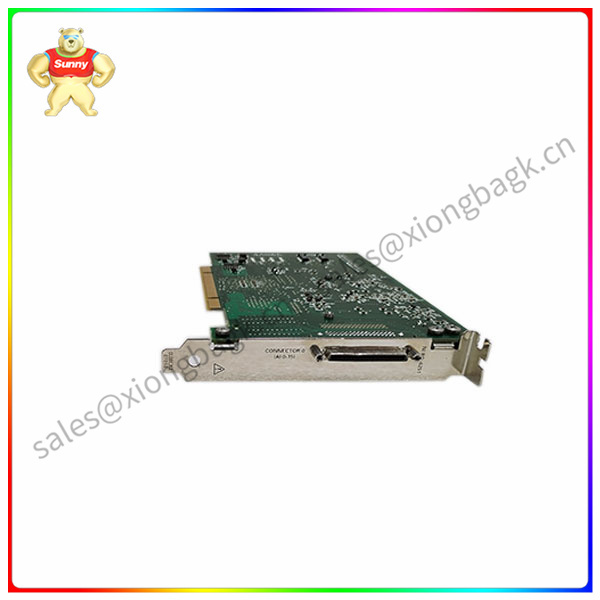

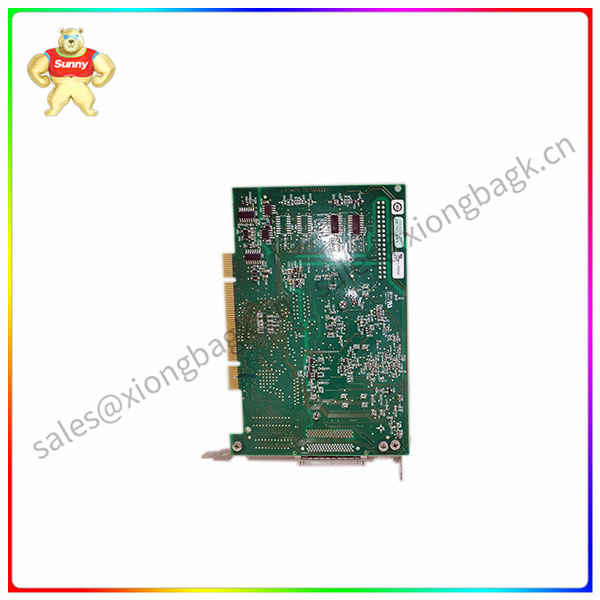

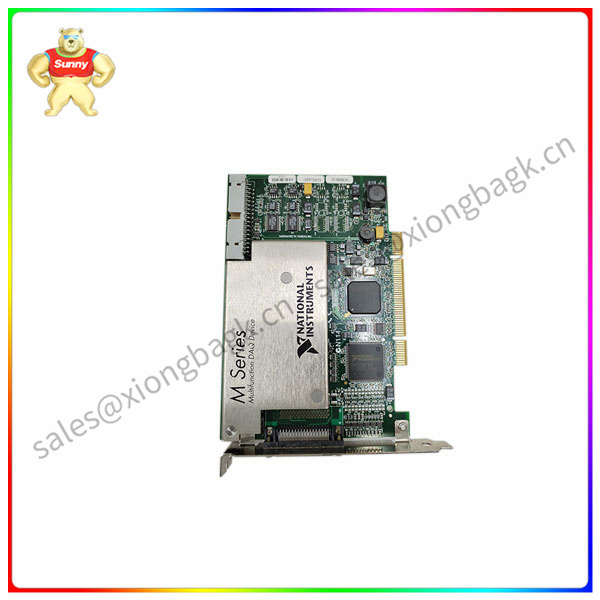

The PCI-6251 is a multi-function I/O device with analog I/O, associated digital I/O, two 32-bit counters/timers, and analog and digital triggers. The device provides low-cost, reliable DAQ capabilities for a variety of applications ranging from laboratory automation, research, design validation/testing to manufacturing testing. It has a 16-bit resolution and provides excellent accuracy with a fast sampling rate of approximately 1.25 MS/s per single channel and 1 MS per second. In addition, the PCI-6251 has approximately 70 signal conditioning options. In addition to the basic features, this model offers advanced features. The included NI-DAQmx driver and configuration utility simplify configuration and measurement.
The PCI-6251 is a high-speed multi-function DAQ board with the following features and benefits:
High speed: Approximately 1.25 MS/s per single channel and a sampling rate of 1 MS per second provide excellent accuracy.
High resolution: 16 bit resolution.
Integrate multiple functions: analog I/O, associated digital I/O, two 32-bit counters/timers, analog and digital triggers, and more.
Advanced features such as NI-STC 2 system controller, NI-PGIA 2 programmable amplifier and NI-MCal calibration technology are available.
It can be used in a variety of application scenarios: from laboratory automation, research, design validation/testing to manufacturing testing.
Easy configuration and measurement: The included NI-DAQmx driver and configuration utility simplify configuration and measurement.
However, PCI-6251 also has some disadvantages:
The operating environment must meet the following requirements: The operating system must run on the Windows or Linux operating system, and corresponding drivers and software must be installed.
Relatively high price: Compared to the general DAQ board, the price of PCI-6251 is higher.
Need professional maintenance: If you need to further customize or repair, you need to contact professional technical personnel for operation.
Overall, the PCI-6251 is a high-performance, versatile and easy-to-use DAQ board for a variety of applications requiring high-speed, high-precision data acquisition and signal processing. However, users need to pay attention to factors such as their operating environment and price, and choose and use according to actual needs.
