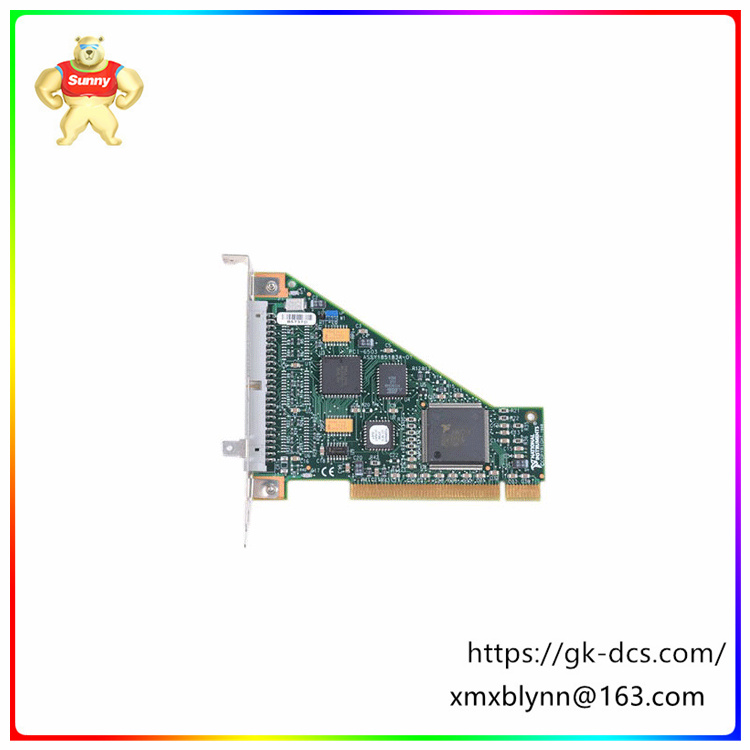

The PCI-6503 is a digital I/O data acquisition card manufactured by National Instruments (NI). The card provides computer-based digital input and output capabilities for applications requiring high-speed, precise digital signal control.
The device has 24 channels, each supporting 5V TTL/CMOS, with a maximum output current of 2.4 mA. It uses a 24-bit programmable peripheral interface (PPI), each of which is plug-and-play and does not require a separate board manager for configuration. In addition, the device can be connected to peripherals or other computers, and can work in one-way or two-way mode and shake hands with peripherals.
Main functions and features:
Digital I/O channels: The PCI-6503 provides up to 24-bit programmable digital I/O channels to meet the needs of multi-channel digital signal control and acquisition.
Plug and play: The card has a plug and play function, without the system external card manager, can be easily integrated into the computer system.
Reliability: The PCI-6503 is designed for high reliability, providing consistent performance even in extreme application environments.
Programmable input filter: The card is equipped with a programmable input filter that can remove noise, noise, faults and sharp pulses from the input signal to improve the quality of the signal.
Programmable power-on state: When connected to a pump, engine, or other industrial actuator or machine, the PCI-6503 provides a programmable power-on state that ensures safe operation by providing a known initialization state.
Fail-safe mechanism: The electronic I/O watchdog has a fail-safe mechanism that monitors computer or application failures and, if necessary, takes action to ensure the safe recovery of the system.
High voltage, high current, and Isolation options: The PCI-6503 also offers high voltage, high current, and isolation options to ensure safe and reliable operation in a variety of environments.
Application scenario:
PCI-6503 digital I/O data acquisition card is widely used in industrial automation, measurement and control system, mechanical equipment control, laboratory research and other fields. It can be used with various digital devices to achieve accurate digital signal control, data acquisition and transmission. By combining National Instruments' LabVIEW software and other tools, users can easily build data acquisition systems for real-time monitoring, analysis and processing of data.
