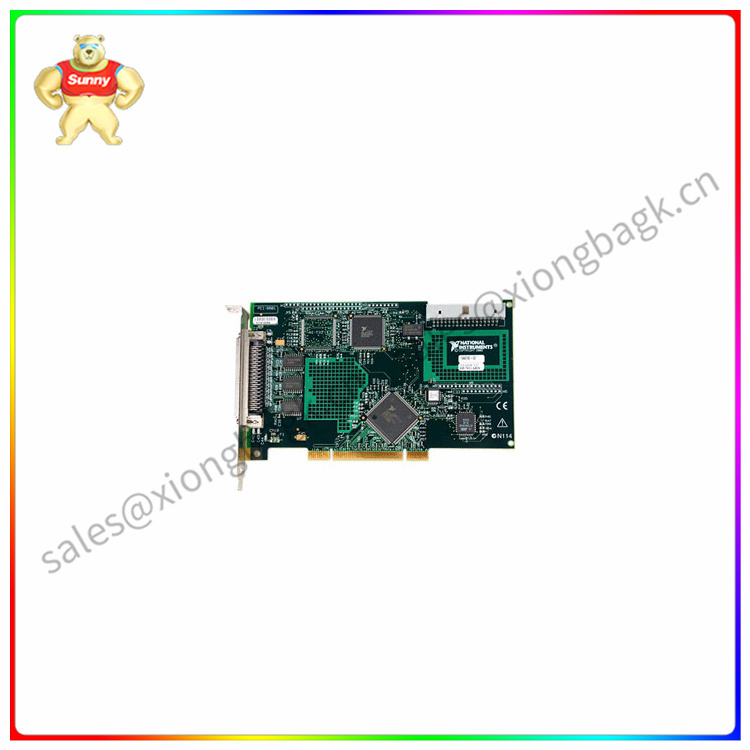

PCI-6601 is a highly reliable timing and digital I/O module manufactured by National Instruments (NI). It is a counter/timer device primarily used to perform tasks such as encoder position measurement, event counting, period measurement, pulse width measurement, pulse generation, pulse train generation, and frequency measurement.
PCI-6601 has the following features and benefits:
High reliability: The PCI-6601 is designed for high reliability in a variety of harsh environments and application scenarios.
Versatility: The module features 4 counters/timers, 1 digital dejitter filter, and TTL/ CMOS-compatible digital I/O. This enables the PCI-6601 to perform a variety of timing and digital I/O tasks.
High-speed DMA transmission: The PCI-6601 supports one high-speed DMA (Direct memory access) transmission, improving data transmission efficiency and processing speed.
Flexibility: The PCI-6601 can be seamlessly integrated with NI's other software and hardware products for easy system integration and expansion. At the same time, it also supports multiple operating systems, such as Windows and LabVIEW RT real-time operating system.
However, PCI-6601 also has some potential drawbacks:
High cost: As a high performance, high reliability data acquisition module, the cost of PCI-6601 can be relatively high.
Technical dependence: As a product of NI Corporation, PCI-6601 may have certain technical dependence, and may face compatibility problems when integrated with other brands of devices or systems.
Professional Training required: Using PCI-6601 for data acquisition and configuration may require some professional training and technical knowledge.
Overall, the PCI-6601 is a highly reliable, versatile counter/timer device for a variety of applications requiring precise timing and digital I/O. When selecting and using, it is recommended to consider its advantages and disadvantages comprehensively, and evaluate and make decisions based on actual needs. At the same time, it is also very important to consult and cooperate with manufacturers, suppliers or professional engineers to ensure the stability and safety of the system.
The PCI-6601 is suitable for a variety of scenarios, including encoder position measurement, event counting, period measurement, pulse width measurement, pulse generation, pulse train generation, and frequency measurement. Thanks to its four counters/timers, one digital dejitter filter, and TTL/CMOS compatible digital I/O, it can perform well in a variety of applications.
In addition, the PCI-6601 is particularly suitable for applications where high-speed DMA transmission is required. For example, in the generation of wheel speed signals, the high-speed DMA transmission capability of PCI-6601 can ensure the fast and accurate transmission of data, thus meeting the needs of applications with high real-time requirements.
In addition, the PCI-6601 is suitable for applications that require high reliability. Its highly reliable design enables it to work stably in harsh environments, ensuring the stability and safety of the system.
In general, the PCI-6601 is suitable for applications requiring high-precision timing and digital I/O, such as industrial automation, control systems, test and measurement. When selecting and using PCI-6601, it is recommended to evaluate and make decisions based on specific needs and application scenarios, and consult and cooperate with manufacturers, suppliers or professional engineers to ensure the stability and security of the system.
