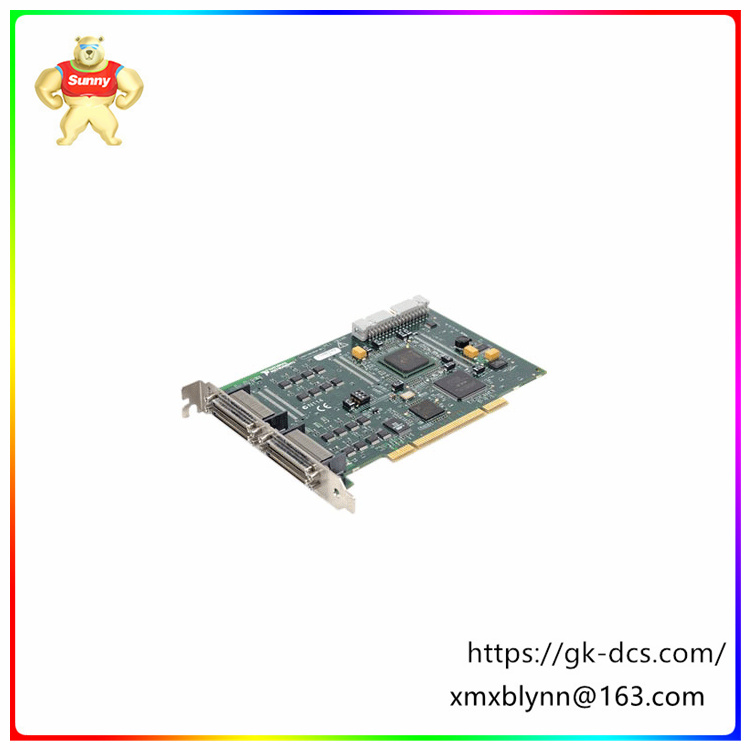

The PCI-7811R is a digital RIO (Reconfigurable I/O) board manufactured by NI (National Instruments). The board is based on a Field-Programmable Gate Array (FPGA) chip that provides powerful on-board processing power and flexible I/O operations. Users can configure each function by NI LabVIEW graphical program block diagram and NI LabVIEW FPGA module.
The PCI-7811R board consists of a Virtex-II FPGA, a 40MHz crystal oscillator, and 160 I/O pins. Among them, the FPGA contains a large number of repeatable editable logical blocks, which makes it ideal for quickly configuring and performing a variety of tasks.
The PCI-7811R board has a wide range of applications, such as high-speed waveform generation, sensor simulation, hardware-in-the-loop (HIL) testing, bit error rate testing, and other applications requiring precise timing and control. With its precise control, high-speed clock and large amount of I/O, the PCI-7811R board can be applied to the LED control of the system to achieve frequent and fast lighting of multiple leds.
In addition, the PCI-7811R board has also passed the National High-tech Enterprise, Science and Technology Innovation Little Giant and ISO9001 certification, which further proves its high quality and reliability.
It should be noted that while the PCI-7811R board is powerful, it also requires a certain amount of expertise and experience to use it. Therefore, before use, it is recommended that users carefully read the relevant user manuals and technical documents to ensure that the board can be configured and used correctly.
The PCI-7811R is suitable for a variety of scenarios. Its key features include precise control, a high speed clock, and a large number of I/O pins, which makes it excellent in the following scenarios:
High-speed waveform generation: The high-speed performance and flexible I/O configuration of the PCI-7811R make it ideal for generating high-speed waveforms, such as test signals or analog signals.
Sensor simulation: Due to its powerful onboard processing capabilities and precise timing control, the PCI-7811R can be used to simulate the output signals of various sensors, facilitating testing and development.
Hardware-in-the-loop (HIL) testing: In HIL testing, the PCI-7811R can be used to simulate the actual hardware behavior of the system being tested, thereby verifying the functionality and performance of the system.
Bit error rate testing: The high-speed and precise control characteristics of the PCI-7811R make it ideal for bit error rate testing, which can be used to evaluate the performance of communication systems.
Other applications that require precise timing and control: Any scenario that requires precise timing and control, such as LED control, motor drives, etc., can consider using the PCI-7811R.
