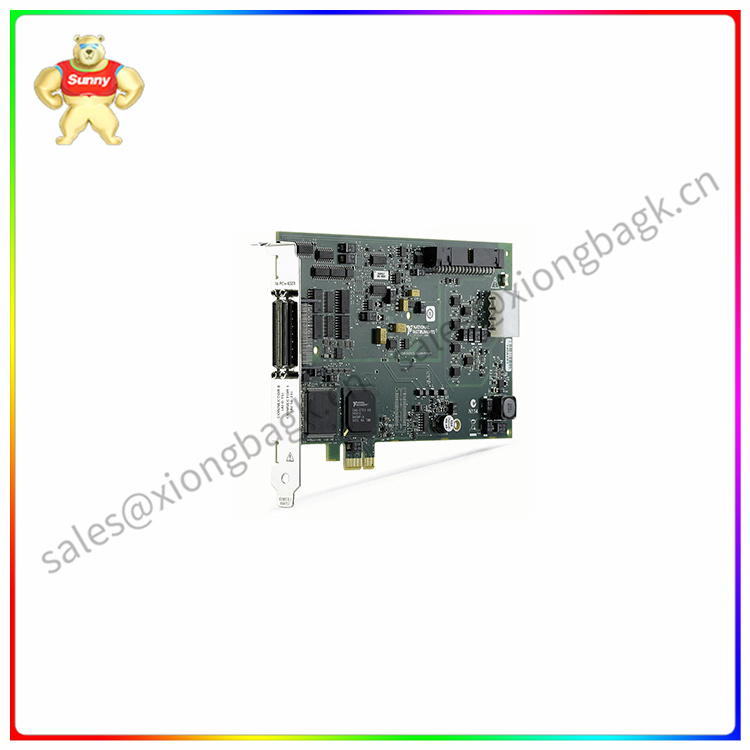

The PCI-6323 is a multi-function I/O device manufactured by National Instruments (NI). The device provides a combination of analog I/O, digital I/O, and counter/timer functions in a single device for a variety of industrial applications such as laboratory automation, research, and design validation.
Specifically, the PCI-6323 has 32 analog inputs, a sampling rate of up to 250 kS/s, a 16-bit resolution, and supports a voltage range of ±10 V. It also has four analog outputs up to 900 kS/s, 16-bit resolution and a voltage range of ±10 V. In addition, the device offers 48 digital I/O lines, 32 of which can be used as 1 MHz hardware timing lines. It is also equipped with a 4-channel 32-bit counter/timer for applications such as PWM (pulse width modulation), encoder, frequency and event counting.
The PCI-6323 utilizes the high processing power of the PCI Express bus, NI-STC3 timing and synchronization technology, and multi-core optimized drivers and application software to provide high performance. In addition, the device also supports Windows 7/Vista/XP/2000 operating systems, making it widely used in a variety of computer systems.
Overall, the PCI-6323 is a powerful, high-performance, versatile I/O device for a variety of industrial applications that require analog I/O, digital I/O, and counter/timer capabilities.
Advantages:
Versatility: The PCI-6323 is a highly integrated device that offers analog I/O, digital I/O, and counter/timer capabilities that allow users to accomplish multiple tasks on a single device, simplifying system design and cabling.
High performance: The device has a high sampling rate and resolution to provide accurate analog signal input and output. At the same time, its digital I/O lines and counters/timers also have excellent performance to meet the needs of a variety of complex applications.
Flexibility: PCI-6323 supports multiple operating systems, including Windows 7/Vista/XP/2000, which makes it widely used in different computer systems. In addition, the device also provides a wealth of configuration options and functions, so that users can customize according to actual needs.
Ease of use: The PCI-6323 is equipped with NI-DAQmx drivers and configuration utilities to simplify the configuration and measurement process of the device. Users can quickly set up and manage devices through an intuitive interface and powerful software tools to improve productivity.
Cons:
Cost: As a high-performance, versatile device, the PCI-6323 is relatively expensive. This may limit the use of some users or application scenarios with limited budgets.
Technical threshold: Although the device provides a wealth of features and configuration options, for users without relevant experience, it may take some learning and practice to master its use skills.
Compatibility: Although the PCI-6323 supports a variety of operating systems and programming environments, in some specific cases, additional drivers or software may still be required to ensure the proper functioning of the device. This can increase system complexity and maintenance costs.
