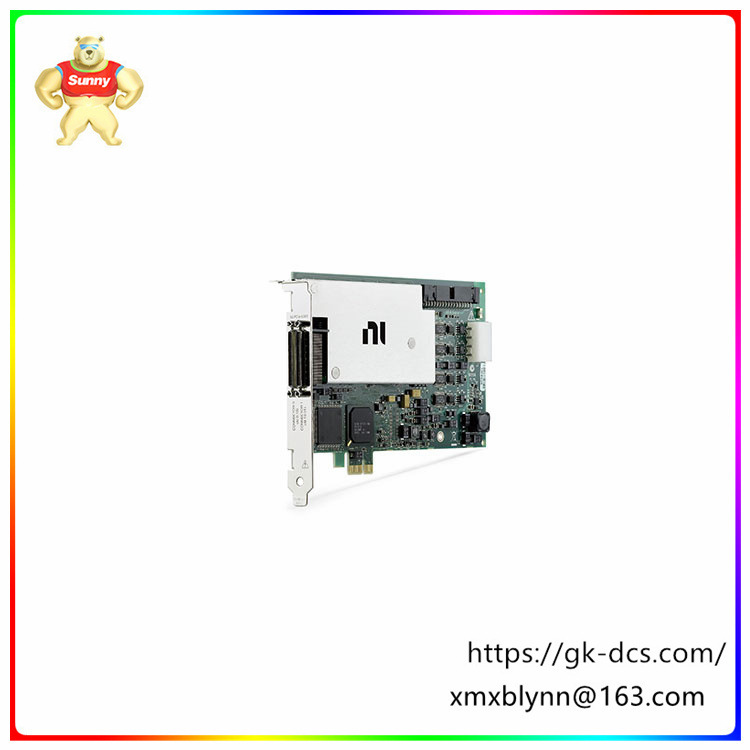

The PCle-6363 offers analog vo, digital 1/0 and four 32-bit counters/timers, PWM, encoder, frequency, event counting and more. The device utilizes a high-throughput PCI Express bus and multi-core optimized drivers and application software to provide high performance. Onboard NI-STC3 timing and synchronization technology provides advanced timing capabilities, including separate analog and digital timing mechanisms | and re-triggering measurement tasks. The PCle-6363 is suitable for a wide range of applications from basic data recording to control and test automation. The included NI-DAQmx driver and configuration utility simplify configuration and measurement.
Pci-6363 is a multi-function I/O device, specifically the NI PCI-6363 multi-function I/O device. Here is a detailed description of it:
Functions and Features:
The PCI-6363 provides a combination of analog I/O, digital I/O, and counter/timer functions in computer-based systems.
The device has 32 analog input channels with a sampling rate of up to 2 MS/s for single channel and 1 MS/s for multichannel, a resolution of 16 bits and an input range of ±10 V.
It also has 4 analog outputs with an output rate of 2.86 MS/s, a resolution of 16 bits and an output range of ±10 V.
In addition, the PCI-6363 offers 48 digital I/O lines, 32 of which are 10 MHz hardware timing lines.
The device also includes a 4-channel 32-bit counter/timer for PWM, encoder, frequency, event counting and many other applications.
Technology and Design:
Pci-6363 devices have been carefully designed, tested and calibrated to ensure high accuracy in the analog signal path.
It utilizes a high-throughput PCI Express bus and multi-core optimized drivers and application software to deliver high performance.
Onboard NI-STC3 timing and synchronization technology provides the device with advanced timing capabilities, including separate analog and digital timing engines and retrigger measurement tasks.
Scope of application:
Pci-6363 is widely used in industrial applications such as 42V automotive applications, radar, sonar and ultrasound.
The device is also suitable for a wide range of applications from basic data recording to control and test automation.
Software support:
The DAQExpress™ companion software included with PCI-6363 provides basic measurement and analysis capabilities.
The NI-DAQmx driver can be used to create custom automated measurement and control applications, and the included NI-DAQmx driver and configuration utility simplify the configuration and measurement process.
