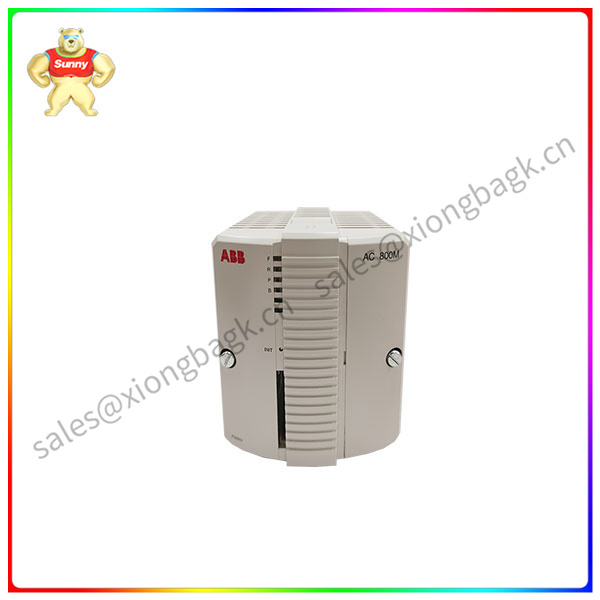

The PM860 is a CPU module from ABB. It has a microprocessor and integrates RAM, real-time clock, LED indicator, start button and other components. In addition, its baseplate is also equipped with two RJ45 Ethernet ports and two RJ45 serial ports, which makes it good network connectivity and scalability. Among them, one serial port is an RS-232C port with a modem control signal, which enhances its communication capabilities.
CPU motherboard contains microprocessor and RAM, real-time clock, LED indicator, boot press
Button and compact flash interface.
The mainboard of the PM860A controller has two RJ45 Ethernet terminals C1 (CN1, CN2) for connection
It is connected to the control network and two RJ45 serial ports (COM3, COM4). One of
A serial port (COM3) is an RS-232C port with a modem control signal,
The other port (COM4) is isolated and used to connect to the configuration tool.
Simple DIN rail connection/discharge procedure with unique slide & lock mechanism. All bas
The e plates have unique Ethernet addresses, and each CPU has a hardware ID. to
The address can be found on the Ethernet address label connected to the TP830 base plate.
The PM860 is a CPU module from ABB that provides the following functions:
Microprocessor: The PM860 has a built-in microprocessor that can perform complex control tasks.
Integrated RAM: The PM860 integrates RAM to store programs and data.
Real-time clock: The PM860 has the real-time clock function to record time stamps.
LED indicators: The PM860 has LED indicators that can display power status and error messages.
Start button: The PM860 has a start button to manually start the program.
Network connection: There are two RJ45 Ethernet ports (CN1 and CN2) on the baseboard for connecting to the control network.
Serial ports: The baseboard has two RJ45 serial ports (COM3, COM4), one of which has a modem control signal.
Extensibility: Simple DIN rail connection/discharge procedures can be connected using a unique slide & lock mechanism.
