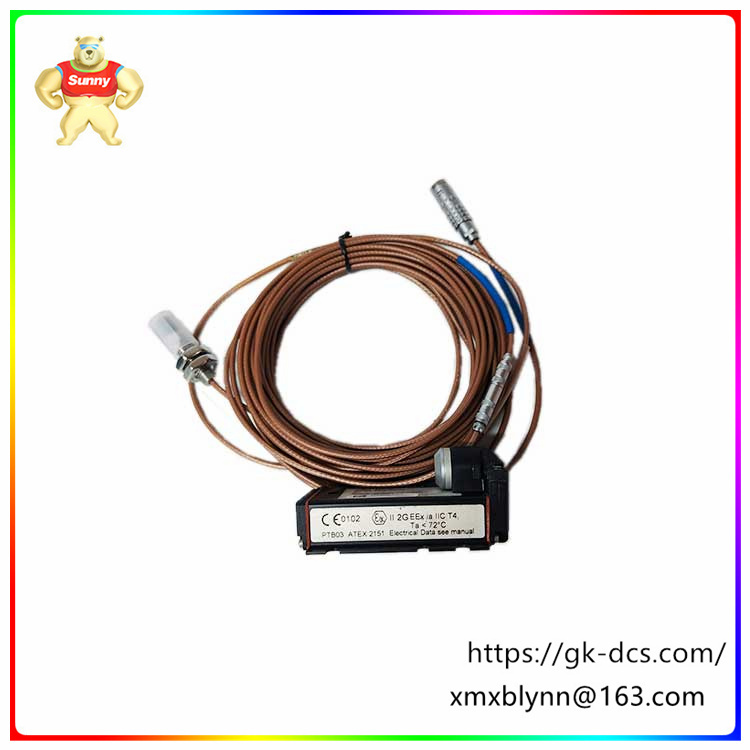

PR6423/000-111 Eddy current sensor
The Emerson EPRO CON041-CN is a vortex signal converter that pairs with the PR6423/00R-111-CN harmonic sensor to provide non-contact vibration measurement. This combination ensures precise monitoring and control of machinery such as steam, gas and water turbines, compressors, pumps and fans.
specification
CON041-CN (Eddy Current Signal Converter)
Frequency range: 0 to 20,000 Hz
Rise time: < 15μs
Operating temperature range: -30°C to 100°C
Protection level: IP20 protection level
Supply voltage range: -23V to -32V (Output range: -4V to -20V)
Shell material: polyamide 6.6
Weight: ~ 60g
Mounting: DIN rail
Connection: Screw terminal (Max. 1.5mm², wire end sleeve)
PR6423/00R-111-CN (Vortex Sensor)
Linear measuring range: 2 mm (80 mils)
Initial air gap: 0.5 mm (20 mils)
Incremental scale Factor (ISF) : 8 V/mm (203.2 mV/mil) ± 5% @ 0 to 45°C
Deviation from best fit line (DSL) : ± 0.025 mm (± 1 mil) @ 0 to 45°C
Minimum axle diameter: 25 mm
Target material: Ferromagnetic steel (42CrMo4)
Protection level: IP66 protection level
Operating temperature range:
Sensor (including 1m cable) : -35°C to +200°C
Cables and connectors: -35°C to +150°C
