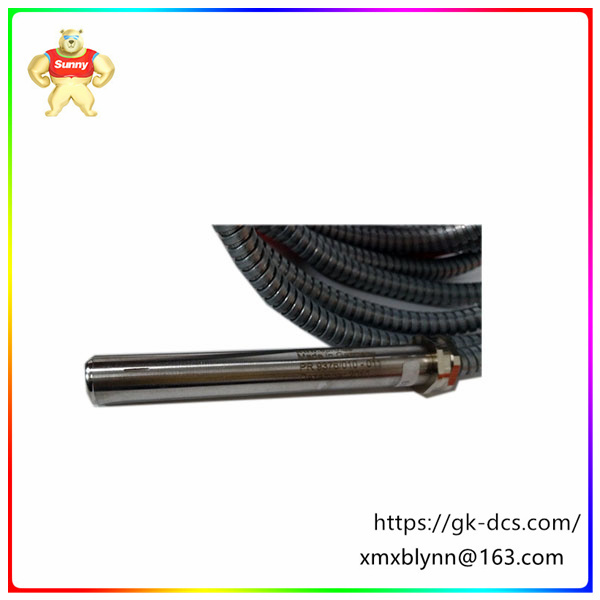

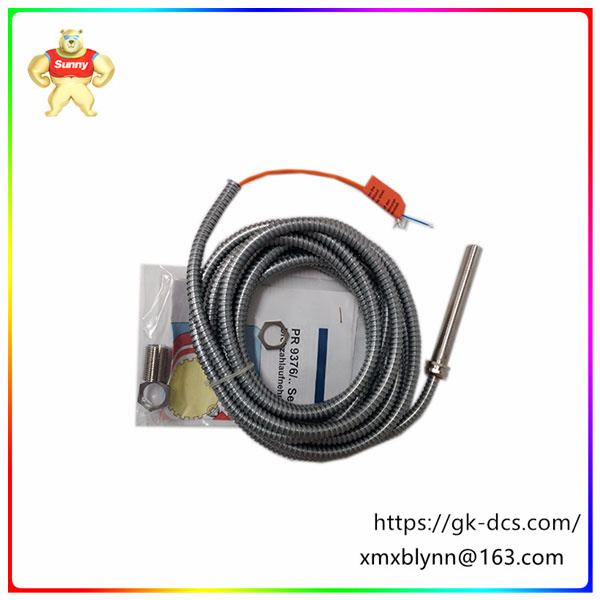

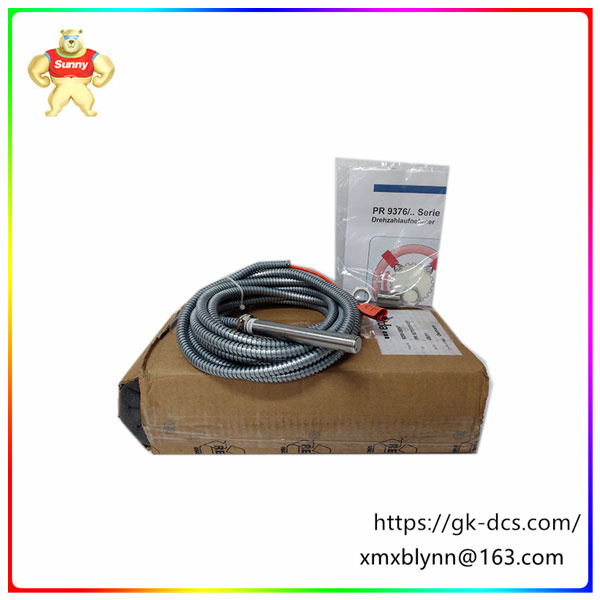

PR9376/010-011 | Hall Effect Speed/ Proximity Sensor | A turbine sensor is used

Brand: Emerson
Part Number: PR9376/010-011
Product Type: Hall Effect Speed/ Proximity Sensor
Product Origin: Germany
Payment:T/T, Western Union
Dimensions: 16cm*16cm*12cm
Weight: 0.21kg
Warranty: 12 months
Payment method: Wire transfer, Western Union
Port of shipment for remittance: Xiamen, China
Delivery time: 1-3 working days
Condition: New and 100% original
Warranty: 12 months

Measurement Type: Speed and Proximity
Output: 1 AC cycle per revolution/gear tooth
Operating Voltage: 10 to 30 VDC
Air Gap: 1 mm (Module 1), 1.5 mm (Module ≥2)
Maximum Operating Frequency: 12 kHz (720,000 cpm)
Response Time: 1 µs
Operating Temperature: -25 to 100°C (-13 to 212°F)
Material:
Sensor - Stainless steel
Cable - PTFE
Weight: 210 grams (7.4 oz)
Sealing Rating: IP67

Technical features:
High resolution: The PR9376/010-011 can output perfect waveform even at low speeds, ensuring the accuracy of measurement results.
Wide measuring range: suitable for different speed requirements.
Stable supply voltage range and wide operating temperature range ensure normal operation in a variety of environments.
How it works:
The PR9376/010-011 uses an oscillator design formed by a turbine sensor and a preprocessor, whose amplitude varies with the proximity and attenuation of the sensor probe to the metal subject. The PR9376/010-011 has been linearly calibrated with calibration materials before leaving the factory, and the user does not need to calibrate again.
Features:
Designed for speed or proximity measurements on critical turbomachinery applications such as steam, gas,  and hydro turbines, compressors, pumps, and fans.
Non-contact sensor, eliminating wear and tear and improving lifespan and reliability.
Fast response time for real-time monitoring.
Rugged construction suitable for harsh environments.
