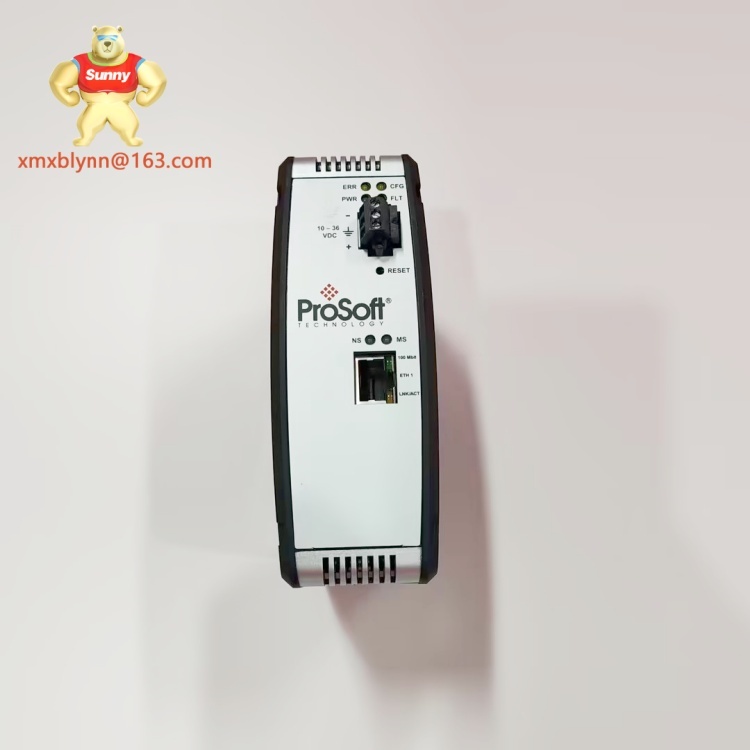

The ProSoft PLX31-EIP-SIE is a high-performance industrial communication gateway designed to bridge EtherNet/IP and Siemens Industrial Ethernet networks, enabling seamless data exchange between Rockwell Automation and Siemens PLCs. As part of ProSoft’s PLX30 series, this compact DIN-rail mounted device supports bi-directional communication with Siemens S7-200, S7-300, S7-400, S7-1200, and S7-1500 PACs, making it ideal for multi-vendor automation environments prosoft-technology.com.
In automotive manufacturing plants, chemical processing facilities, and smart factories, the PLX31-EIP-SIE acts as a protocol translator, allowing real-time data synchronization between control systems. For example, it enables Rockwell ControlLogix controllers to read production metrics from Siemens S7-1500 PLCs in a paint shop, optimizing cycle times by 53% prosoft-technology.com. Its modular design supports up to 4,000 16-bit registers for large data transfers, while embedded EDS (Electronic Data Sheet) profiles simplify integration with Rockwell Studio 5000 and Siemens TIA Portal prosoft-technology.com. The gateway’s ProSoft Discovery Service eliminates subnet restrictions during IP configuration, reducing commissioning time by 30% compared to legacy solutions prosoft-technology.com.

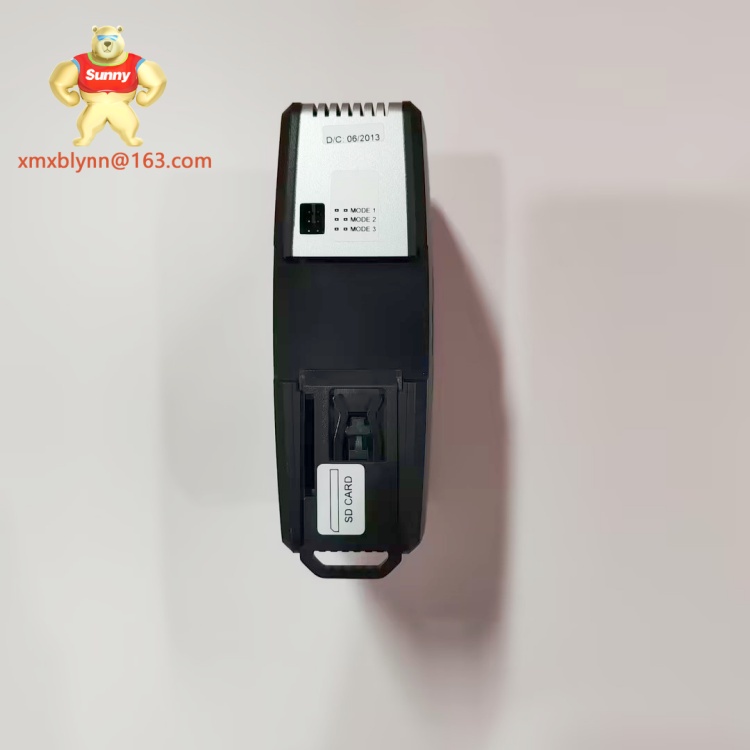

The PLX31-EIP-SIE excels in protocol conversion with data prioritization capabilities, allowing users to assign different RPI (Requested Packet Interval) values to critical control data (e.g., safety signals) and non-essential status updates (e.g., diagnostics). This optimizes Ethernet bandwidth while ensuring mission-critical data is delivered within 10 ms prosoft-technology.com. Its SD card slot enables disaster recovery by storing configuration files, reducing downtime during hardware replacement .
For multi-vendor environments, the gateway’s secure module switch (v1.04+) prevents unauthorized configuration changes, enhancing cybersecurity in IIoT applications prosoft-technology.com. Built-in diagnostics monitor network health, power stability, and protocol errors, with real-time alerts transmitted via LED indicators or higher-level SCADA systems . The dual Ethernet ports support ring topology for redundant networks, ensuring continuous operation in high-availability systems like power plants or oil refineries prosoft-technology.com.
The ProSoft PLX31-EIP-SIE addresses interoperability challenges across industries:
- Automotive Manufacturing: In a Kia Motors assembly plant, the gateway connects Rockwell ControlLogix controllers to Siemens S7-300 PLCs managing overhead cranes, enabling predictive maintenance by sharing motor vibration data in real-time prosoft-technology.com.
- Chemical Processing: A BASF facility uses the PLX31-EIP-SIE to integrate Siemens S7-1500 PLCs controlling reactor temperature with Rockwell systems monitoring batch recipes, achieving ±0.5% accuracy in chemical dosing prosoft-technology.com.
- Water/Wastewater Treatment: In a French municipal water plant, the gateway bridges Rockwell CompactLogix and Siemens S7-1200 PLCs to synchronize pump status and flow meter data, reducing energy consumption by 18% through optimized scheduling prosoft-technology.com.
- Food & Beverage: A Nestlé factory employs the PLX31-EIP-SIE to link Siemens S7-400 PLCs on packaging lines with Rockwell systems tracking product 溯源，ensuring compliance with FDA regulations prosoft-technology.com.
- ProSoft PLX31-EIP-MBS4 – EtherNet/IP to Modbus Serial gateway with four ports, ideal for integrating legacy devices like weigh scales or barcode readers plcdcspro.com.
- ProSoft PLX31-MBTCP-MBS – EtherNet/IP to Modbus TCP/IP gateway for connecting to modern Modbus-enabled sensors nexinstrument.com.
- ProSoft PLX32-EIP-PND – EtherNet/IP to PROFINET device gateway, expanding connectivity for Siemens-driven smart factories prosoft-technology.com.
- ProSoft AN-X-PB – Profibus DP multi-slave adapter, complementary for hybrid Siemens-Rockwell networks nexinstrument.com.
- ProSoft MV156-MCM – Modbus master/slave interface module for legacy Rockwell systems requiring serial communication nexinstrument.com.
Install the ProSoft PLX31-EIP-SIE in a dry, ventilated cabinet with at least 30mm clearance for heat dissipation. Secure it to a DIN rail using provided brackets and connect shielded Cat5e cables for Ethernet and power. Ground the chassis to the plant’s main ground bus to minimize EMI interference . Configure the gateway using ProSoft Configuration Builder software, which guides users through setting IP addresses, protocol mappings, and data priorities .
For maintenance, perform quarterly inspections to clean dust from vents and verify cable connections. Use the software’s diagnostic tools to review error logs and update firmware annually. The gateway’s internal capacitor, critical for real-time clock functionality, should be replaced every 7–10 years . ProSoft’s global support team provides 24/7 assistance for troubleshooting or compatibility issues
prosoft-technology.com.
The ProSoft PLX31-EIP-SIE is backed by a one-year warranty and free replacement service provided by Xiamen Xiongba E-commerce Co., Ltd. As a global industrial automation spare parts distributor, Xiongba specializes in sourcing DCS systems, PLCs, and communication modules directly from overseas manufacturers, ensuring competitive pricing and rapid delivery sauldcs.com.
Xiongba’s warranty covers manufacturing defects and includes technical support from certified automation engineers, who assist with installation, firmware updates, and protocol mapping. For extended protection, optional service plans offer priority troubleshooting and discounted replacement parts. With over a decade of industry experience, Xiongba combines ProSoft’s rugged engineering with reliable logistics to deliver mission-critical solutions for pharmaceutical, oil & gas, and automotive industries sauldcs.com.
