The NI PXI-4461 and PXI-4462 are currently available in both standard PXI and PXI-compatible hybrid slot versions. The hybrid slot-compatible PXI-446X module can be used in PXI slots, CompactPCI slots, and hybrid slots in the PXI Express hybrid chassis. The PXI Systems Consortium specifies that PXI modules compatible with hybrid slots use modified socket connectors to mechanically fit both PXI slots and hybrid slots.

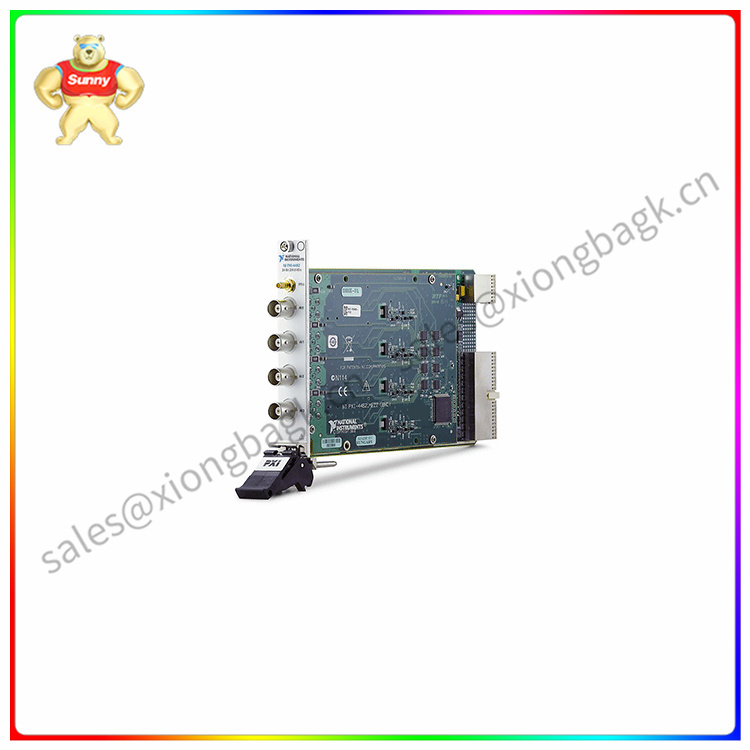

The PXI-4462 is a high-performance PXI-compatible hybrid socket based on the PXI bus for a variety of test and measurement applications. The following are the advantages and disadvantages of the PXI-4462:
Advantages:
High performance: The PXI-4462 typically provides high resolution and high sample rate data acquisition, capable of capturing and analyzing subtle signal features to meet the needs of signal analysis in real-time or near real-time conditions.
Flexibility: Support a variety of input sources such as microphones, sensors, vibrators, etc., to meet the needs of different applications. At the same time, it supports multiple channel configurations, which is convenient for users to flexibly combine and expand.
Real-time signal analysis: Signal analysis can be performed in real-time or near real-time conditions, suitable for real-time monitoring and experiments and other application scenarios.
Spectrum analysis: Support spectrum analysis function, can be used to analyze the signal spectrum characteristics, frequency response, etc.
Software support: Software tools and drivers are usually provided to help users configure, collect and analyze signal data, simplifying the test and measurement process.
Modular design: PXI-4462 as a module on the PXI bus, compatible with other PXI modules, convenient for users to replace and upgrade modules.
Cons:
High cost: Due to the use of high-quality devices and manufacturing processes, its market price is relatively high.
Maintenance difficulties: Once a failure occurs, repair and maintenance may be more difficult due to the complexity of its internal structure.
Compatibility issues: There may be compatibility issues with some software or hardware, requiring additional adaptation and testing.
In summary, the PXI-4462 offers high performance, flexibility, real-time signal analysis, spectrum analysis, software support and modular design for a variety of test and measurement applications. However, its high cost, difficult maintenance, and possible compatibility issues also require attention. When choosing and using, users need to make trade-offs according to their own needs and budgets.
