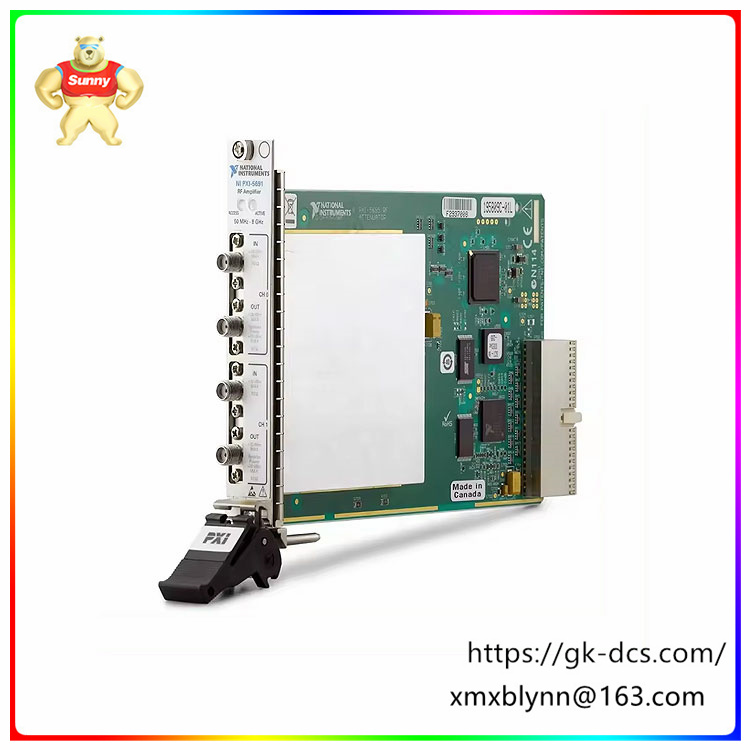

The PXI-5691 is a dual-channel programmable RF amplifier that covers the frequency range from 50MHz to 8GHz. It has a variety of functions and features to meet a variety of RF amplification needs.
First, the PXI-5691 has a total gain of up to 60dB and a maximum output power of over 20dBm. In addition, it offers a gain resolution of 0.5dB, which makes it useful in applications where precise control of amplification gain is required.
Second, the PXI-5691 has excellent noise performance, with a noise figure of only 5dB. This means that when amplifying the signal, it introduces little extra noise, thus maintaining the quality of the signal.
In addition, the PXI-5691 offers two gain mode options: fixed gain mode and programmable gain amplification mode. Fixed-gain mode provides a fixed +25dBm RF gain, while programmable gain amplification mode allows users to program any RF gain between 0dBm and +25dBm with an interval of 0.5dBm. In addition, it can be programmatically switched to a pass-through path, i.e. a no-gain state.
Finally, when connected to an RF signal generator or signal analyzer, the PXI-5691 can fully achieve measurement flexibility and accuracy. This makes it very useful in a variety of RF measurement and test applications.
Overall, the PXI-5691 is a powerful, high-performance RF amplifier with high accuracy, high flexibility, and low noise for a variety of applications where precise control of RF gain and signal quality are required.
The PXI-5691 programmable RF amplifier has a wide range of applications in many fields, and the following are some common application scenarios:
Wireless communication: The PXI-5691 is used to enhance the strength of wireless signals and improve the reliability and range of communications.
Radar system: Helps improve radar sensitivity and resolution to better detect targets.
Satellite communication: PXI-5691 ensures the quality and stability of signal transmission in satellite communication systems.
Radio monitoring: In radio monitoring, programmable RF amplifiers can be used to detect and analyze various radio signals.
Electronic test and measurement: Used to test and measure the RF performance of electronic devices.
Medical devices: PXI-5691 For example, in medical devices such as magnetic resonance imaging (MRI), RF amplifiers can improve signal quality.
Scientific research: PXI-5691 plays an important role in scientific research such as radio astronomy and spectral analysis
