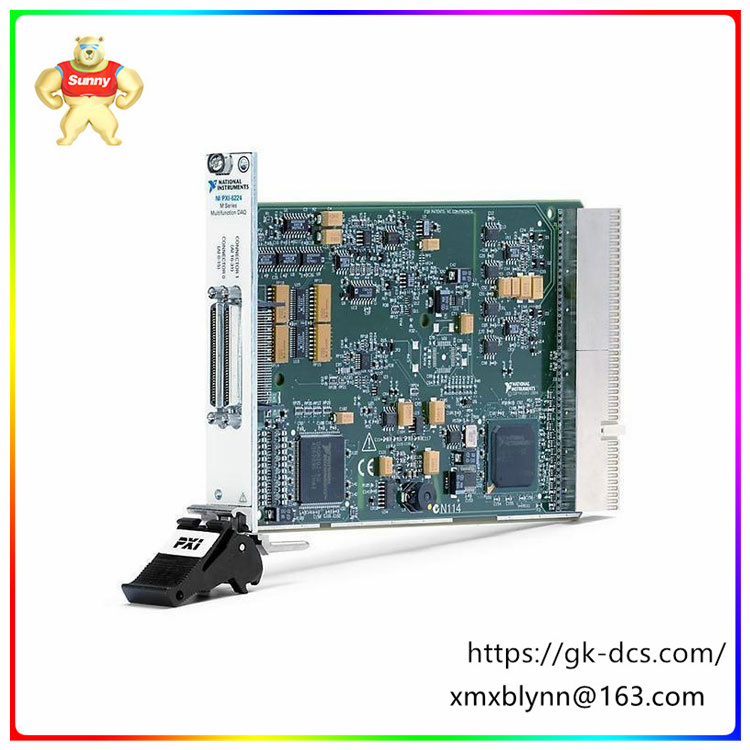

The PXI-6224 is a multifunctional I/O module primarily used as a synchronous sampling multifunctional DAQ (Data Acquisition) device. It offers analog I/O, digital I/O, two 24-bit counters, and digital triggering, which makes it useful in a wide range of applications.
Advantages:
Versatility: The PXI-6224 provides analog I/O, digital I/O, counter, and trigger capabilities to meet a wide variety of I/O needs.
Synchronous sampling: This module can perform synchronous sampling, which is very useful for data acquisition applications that require accurate synchronization.
High accuracy: The presence of a 24-bit counter makes it excellent in applications that require high precision counting.
Wide range of applications: The module is suitable for a variety of industrial applications such as laboratory research, design validation tests and manufacturing tests, as well as 42V automotive applications, radar, sonar and ultrasound.
Easy configuration and use: The included NI-DAQmx driver and configuration utility simplify the configuration and measurement process.
Cons:
Higher price: Due to its versatility and high precision characteristics, the PXI-6224 may be relatively expensive and may not be suitable for users on a limited budget.
Expertise required: While the module is easy to configure and use, some expertise and experience may be required to get the most out of its performance.
Size and power consumption: Since it is a PXI module, it requires a certain amount of space to install and may have a certain amount of power consumption.
PXI-6224 multi-function I/O module is a very practical electronic module, it has a wide range of applications in many fields. Here are some common application scenarios:
Industrial automation: used to connect and control various sensors, actuators and other equipment to achieve the monitoring and control of factory automated production lines.
Robotics: The PXI-6224 helps the robot perceive its environment and perform corresponding actions.
Data acquisition and monitoring: Collect and monitor various physical quantities, such as temperature, humidity, pressure, etc.
Smart home: Control household appliances, such as lights, curtains, air conditioning, etc., to achieve intelligent home control.
Automotive electronics: PXI-6224 is used for vehicle sensor data acquisition, control system, etc.
Medical devices: In medical instruments, multifunctional I/O modules can be used to connect and control various sensors and actuators.
Environmental monitoring: Monitoring environmental parameters, such as air quality, water quality, etc.
Laboratory equipment: Used for control and data acquisition of experimental equipment.
Smart Agriculture: The PXI-6224 collects agricultural environmental data to control irrigation systems, greenhouse equipment, etc. It can be seen that the multifunctional I/O module is widely used, which provides flexible input and output interfaces for various systems and realizes communication and control between devices.
