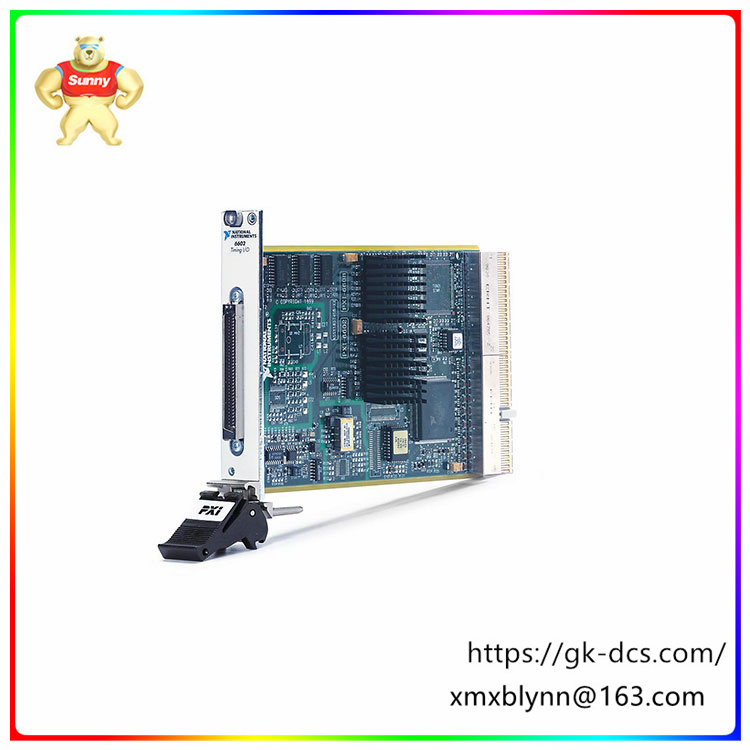

Pxi-6602 The Peripheral Component Interconnect (PXI) counter/timer module is a module used to measure and control time, frequency, counting, etc. It is commonly used in automated testing, measurement systems, industrial control and other fields.
These modules can provide high-precision time measurement and counting functions, such as measuring the frequency of pulse signals, counting the number of events, generating timing signals, etc. They typically feature multiple counter and timer channels, and the PXI-6602 can perform multiple measurement or control tasks simultaneously.
The PXI-6602 PXI counter/timer module is generally compatible with the PXI bus, can be plugged into the PXI chassis, and can communicate and work cooperatively with other PXI modules. This enables the construction of an integrated measurement and control system to meet the needs of various applications.
Some common features include:
Counter operation: Count the number of pulses of the input signal, supporting up count, down count or two-way count.
Timer operation: The PXI-6602 sets timers to generate timing signals or make time measurements.
Frequency measurement: The frequency of the input signal is measured.
Pulse generation: The generation of a specific frequency or timing pulse signal.
Edge detection: The PXI-6602 detects rising, falling, or other edge events in the input signal.
Count/timer trigger: The PXI-6602 uses the results of a counter or timer to trigger other actions or events.
The specific functions and features of these modules may vary by manufacturer and model. In selecting the PXI counter
