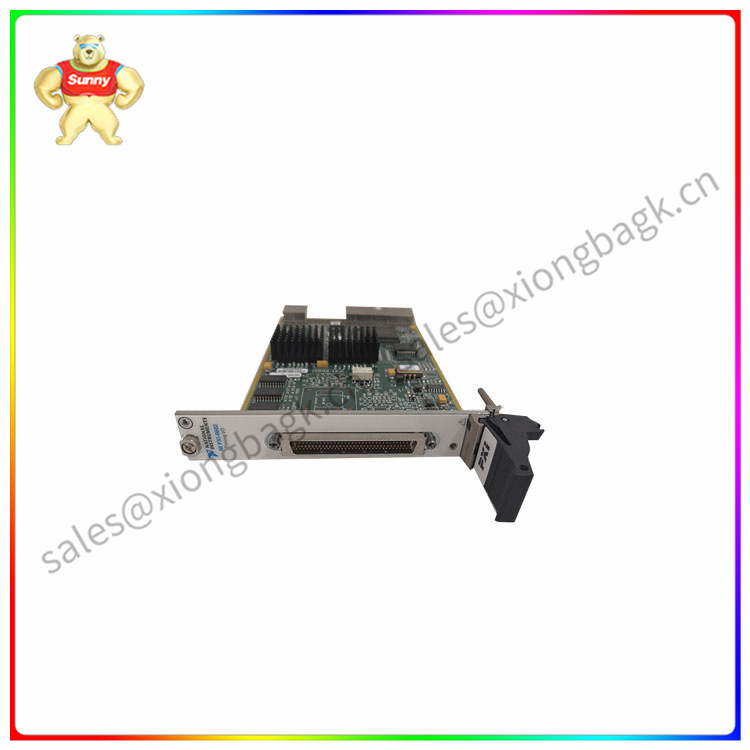

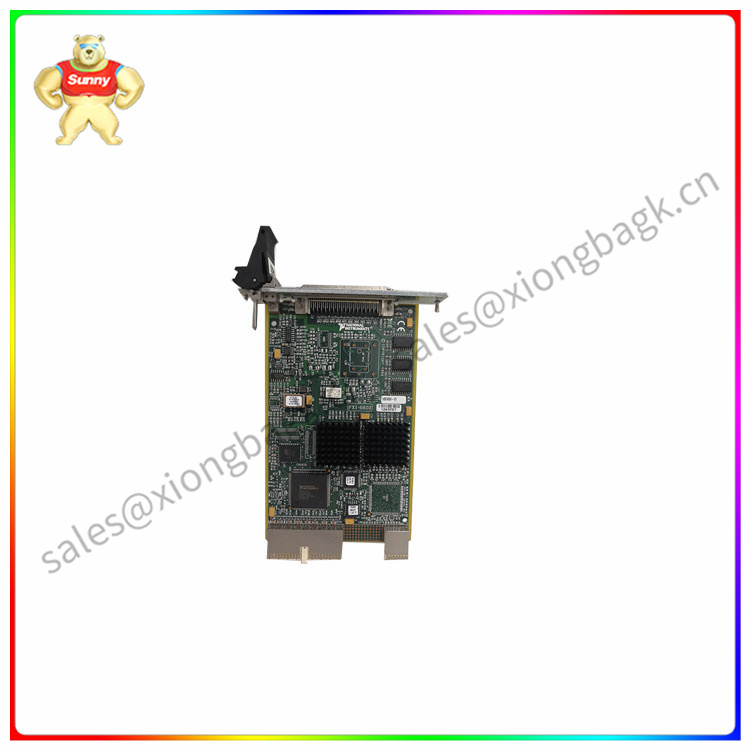

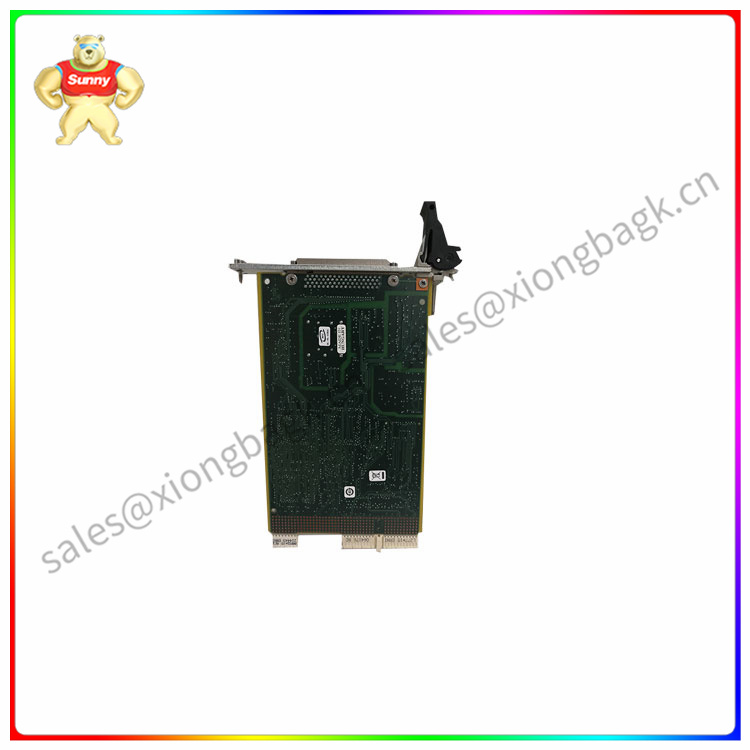

The PXI-6602 is a timing and digital I/O module with eight 32-bit counters/timers and 32 TTL/ CMOS-compatible digital I/O lines. Eight of them are dedicated digital I/O lines and the remaining 24 are shared with counters/timers. It can measure the pulse signal of flow rate and filling time, and record the counter pulse value during the filling process. In addition, it also has the function of collecting water temperature signal. PXI-6602 collection card series imported from Europe and the United States is good, the price starts at 2899 yuan, the specific price and specifications may change due to merchants and inventory.
The PXI-6602 is a timing and digital I/O module with the following functions and applications:
Features:
8 32-bit counters/timers.
32 TTL/ CMOS-compatible digital I/O lines, of which 8 are dedicated digital I/O lines and the remaining 24 are shared with counters/timers.
Measure flow rate and filling time pulse signals.
Record the counter pulse value during water filling.
Water temperature signal acquisition function.
Application field:
Widely used in electronics, transportation, aerospace, automotive, electrical and other fields.
It can be used in many applications such as encoder positioning measurement, event counting, period measurement, pulse width measurement, pulse generation, pulse sequence generation and frequency measurement.
In the application, three high-speed DMA transmissions can be performed simultaneously.
It can be used to generate retrigger pulse, two-signal edge separation measurement, continuous buffer event count and continuous buffer pulse train measurement, etc.
In addition, it has an onboard thermostatic crystal oscillator that helps the device perform very accurate and precise measurements over long periods of time.
If you have any PLC DCS query, please feel free to contact Ah Please
Email:
xmxblynn@163.comTel.:+86
18059868280 (WeChat )Mobile:+86
18059868280
The PXI-6602 is a powerful timing and digital I/O module with the following benefits:
High performance: The PXI-6602 features eight 32-bit counters/timers and 32 TTL/ CMOS-compatible digital I/O lines, enabling high-precision timing and digital signal processing.
Strong flexibility: the PXI-6602 digital I/O line can be configured in input or output mode, which is convenient for users to configure and use according to actual requirements.
Strong scalability: PXI-6602, as a module on the PXI bus, can be combined with other modules to achieve more complex functions and scalability.
High reliability: PXI-6602 adopts industrial grade design, with high reliability and stability, can ensure stable operation in a variety of harsh environments.
However, the PXI-6602 also has some disadvantages:
Higher cost: The PXI-6602 costs more than some common timing and digital I/O modules.
High technical requirements: Due to the powerful function of PXI-6602, high technical requirements, users need to have certain professional knowledge and skills to use and maintain.
Compatibility issues: In some cases, the PXI-6602 may have compatibility issues with certain systems or devices, requiring additional adaptations and adjustments.
In summary, PXI-6602 has the advantages of high performance, flexibility, scalability and high reliability, but it also has some disadvantages such as high cost, high technical requirements and compatibility problems.
