The PXle-1090 is equipped with a high-bandwidth backplane to meet the needs of high-performance test and measurement applications. The PX case comes with a hybrid connector, 58 W power supply and cooling to draw the integrated Thunderbolt 3 MXI-Express controller. Thunderbolt is a trademark of Intel Corporation and its subsidiaries in the United States and other countries.
2 PXIe (Gen3 x1) slots, each with 58W of cooling power
1 PXIe mix slot and 1 PXIe slot
2 GB/s System bandwidth
MXIe Thunderbolt 3 controller with Daisy chain
Dimensions: 190 mm x 270 mm x 70 mm (W x D x H), 2 U
Ac input: 100-240 VAC, 50/60 Hz
Acoustic signals optimized for desktop applications
Can be set horizontally or vertically
Temperature range: 0-50 C *

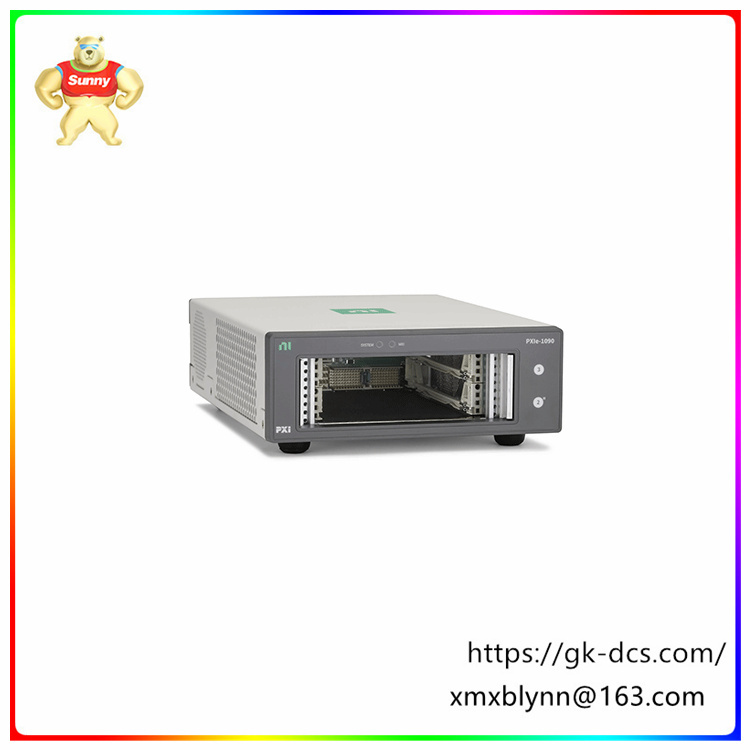

The PXIe-1090 is a 2-slot PXI Express chassis from National Instruments. It has up to 2GB/s of system bandwidth, 58W of power and heat dissipation to meet the needs of high-performance test and measurement applications. The chassis is equipped with a high-bandwidth backplane, integrated Thunderbolt 3 MXI-Express controller, and a hybrid connector that allows it to support flexible insertion of various instrument modules. In addition, the PXIe-1090 has a small and portable appearance and structure, making it easy to use in a variety of test scenarios.
In terms of functions and applications, the PXIe-1090 can be used not only for general test and measurement tasks, but also to meet various high-performance requirements. For example, in applications requiring high-speed data transfer and precise control, its high bandwidth and real-time performance can provide excellent performance. At the same time, its powerful power supply and heat dissipation design ensures stable operation under high loads, further enhancing its reliability in practical applications.
Overall, the PXIe-1090 is a powerful and stable PXI Express chassis that is ideal for use in situations where high performance testing and measurement is required.
