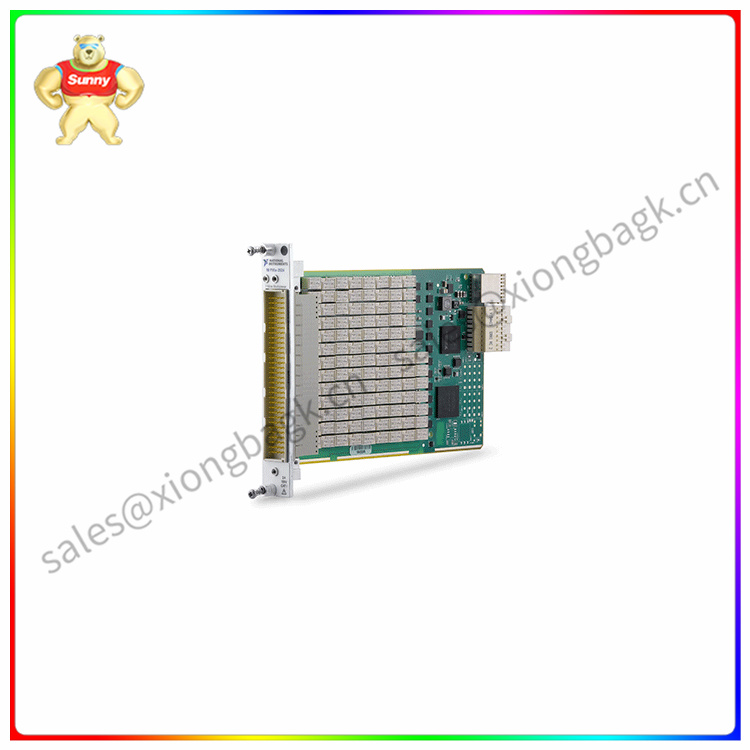

NI-PXIe-2524 is a high density multiplexer switch module manufactured by National Instruments. It has an input switching current of 2 amps and a maximum switching power of 60 W or 62.5 VA. In automated test systems, the module is used to route signals and is available in a variety of single-wire multiplexer configurations such as 16-row 8x1, eight-channel 16x1, four-channel 32x1, two-channel 64x1 and 128x1. These configuration schemes play an important role in the switching operation of the device. In addition, the module has incredible RF performance characteristics, with a bandwidth of less than 10 MHz, a DC path resistance of less than 0.8 ohms, a thermoelectric EMF value of less than 10 microvolts, a typical relay operation time of 1 millisecond, and a maximum of 3.2 milliseconds.
The PXIe-2524 multiplexer switch module is an electronic device or circuit component used to select and switch between multiple input signals or data sources, transmitting one of the input signals to an output port.
The main function of the PXIe-2524 multiplexer switch module is to switch between multiple input sources in order to obtain the desired signal at the output. It can dynamically select and switch input signals based on control signals or programming Settings.
The following are some common features and applications of the multiplexer switch module:
Input channel selection: The PXIe-2524 multiplexer switch module usually has multiple input channels that can receive signals from different sources.
Switching control: Through control signals or programming Settings, the input channel to be selected can be specified. Switching control can be manual, or the PXIe-2524 can be automatically controlled by a microcontroller, digital signal processor, or other control device.
Output ports: The multiplexer switch module passes the selected input signal to one or more output ports. The output port can be connected to other circuits or devices.
Signal isolation: The PXIe-2524 may provide signal isolation in order to avoid interference between signals or electrical connection problems.
Applications: Multiplexer switch modules are widely used in various fields, such as communication systems, data acquisition, test and measurement equipment, audio and video processing, etc. They can be used to switch between different signal sources, and the PXIe-2524 enables resource sharing and flexible configuration.
Type and configuration: PXIe-2524 multiplexer switch modules can be classified and configured according to the number of input channels, switching modes (e.g., manual, electric, remote, etc.), and electrical characteristics (e.g., analog, digital, high-speed, etc.).
