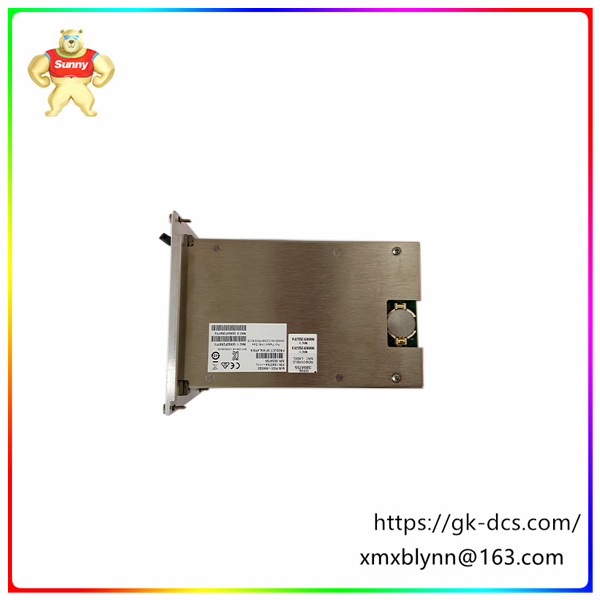

The PXIE-4145 is a multi-channel data collector manufactured by National Instruments (NI) in the PXI Express (PXIe) family. Here's a closer look at the PXIE-4145:
Main functions:
Measurement and acquisition of analog signals: With multiple input channels, PXIE-4145 can collect multiple analog signals at the same time, and support analog signal measurement within a certain range, the specific measurement range depends on the configuration of the module.
Data acquisition and signal processing capabilities: Users can develop applications through NI LabVIEW or C/C++ and other development languages to achieve data acquisition, signal processing, motion control, data processing and other functions.
Synchronization capability: With the high-speed sequence engine, users can synchronize SMUs with each other or with other instruments.
Technical features:
Rich I/O interfaces and communication interfaces: including multiple digital input/output (DIO), analog input/output (AIO), serial communication interfaces (such as RS-232, RS-485, CAN, etc.) and Ethernet interfaces, can easily connect a variety of sensors, actuators and other devices to achieve complex automated control and data acquisition tasks.
High-speed sampling: The PXIE-4145 module has a specific sampling rate, representing the number of data points read per second from the input channel, which helps to shorten the measurement time and capture the transient characteristics of the device.
Accurate measurement: Remote (4-wire) sensing capabilities are integrated into each channel for accurate measurement, while SourceAdapt technology adjusts the PXIE-4145's response to any load for optimal response, maximum stability and reduced transient characteristics.
Software support: NI typically provides software tools that work with their hardware, such as LabVIEW, etc., so that users can easily configure, control, and obtain data.
Application field:
The perfect match with brushless motors, torque motors and linear motors, as well as good compatibility with many feedback systems, makes the PXY-4145 widely used in industrial automation, robot control, semiconductor manufacturing and other fields.
Due to its high precision and high-speed sampling capability, the PXIE-4145 is also suitable for applications that require accurate data acquisition and fast response, such as scientific experiments and quality inspection.
As a multi-channel data collector, PXIE-4145 has a wide range of application scenarios. The following are its possible application areas and specific application scenarios:
Industrial Automation and Control Systems:
In the production line, the PXIE-4145 can be used to collect sensor data, such as temperature, pressure, flow, etc., to monitor various parameters during the production process.
In the robot control system, PXIE-4145 can collect robot motion state data in real time, and carry out accurate motion control and trajectory planning.
Semiconductor Manufacturing and Testing:
In semiconductor production lines, the PXIE-4145 can be used to collect wafer test data, including voltage, current and other parameters, to evaluate chip performance.
In semiconductor test equipment, the PXIE-4145 can accurately measure tiny signals to ensure the quality and reliability of semiconductor devices.
Research experiments and tests:
In laboratories in physics, chemistry, biology and other fields, PXIE-4145 can be used to collect experimental data, such as temperature, pressure, spectra, etc., to support scientific research and experimental analysis.
In materials science research, PXIE-4145 can be used for mechanical properties testing and thermal properties analysis of materials.
Energy and Environmental Monitoring:
In the energy industry, the PXIE-4145 can be used to monitor the operating status of energy equipment, such as wind power, solar power and other equipment performance data collection.
In the field of environmental monitoring, PXIE-4145 can collect environmental parameters such as air quality and water quality to provide support for environmental protection and governance.
Aerospace & Defense:
In the aerospace field, PXIE-4145 can be used for flight test data collection of aircraft or rockets, including flight attitude, speed and other parameters.
In defense applications, the PXIE-4145 can be used to test and evaluate weapon systems and collect critical performance data.
Automotive and Traffic Engineering:
In automotive engineering, the PXIE-4145 can be used to collect vehicle dynamic performance data, such as acceleration, braking distance, etc., to optimize vehicle design and performance.
In the field of traffic engineering, the PXIE-4145 can be used to collect data such as traffic flow and speed to support traffic planning and management.
