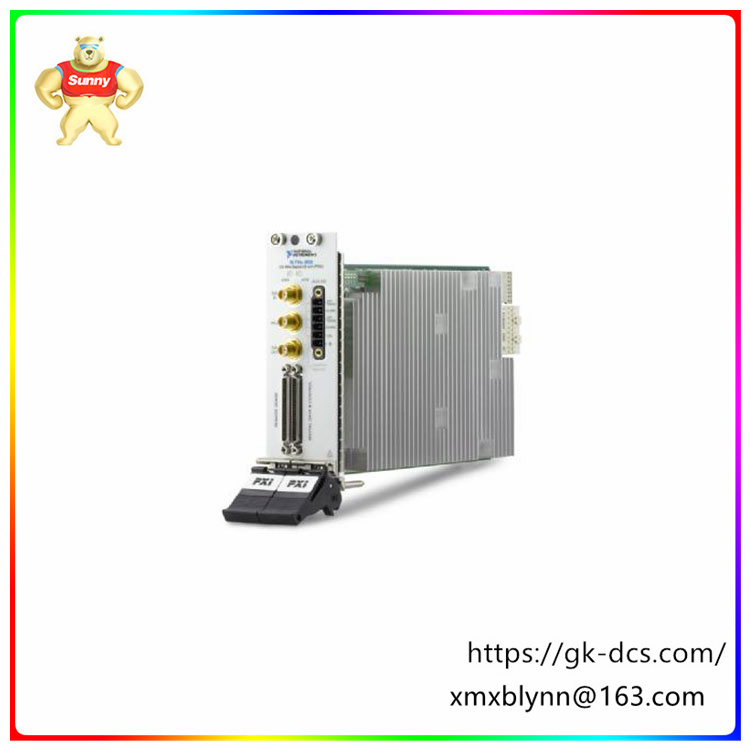

The PXIE-5105 is a high-performance digitizer for a variety of data acquisition and signal processing applications. The features of this device are as follows:
High real-time sampling rate: Real-time sampling rates of up to 60 MS/s (millions of samples per second) enable accurate capture of rapidly changing signals, such as high-frequency signals or short-time events.
Large capacity storage: Up to 512 MB of on-board memory ensures long data collection without real-time processing or transmission.
Modularity and scalability: Can be used in combination with other PXIE-5105 digitizers for high channel count applications, providing great flexibility for large test systems or multi-point monitoring projects.
Multi-channel synchronous sampling: with 8 synchronous sampling channels, multiple signals can be collected at the same time to ensure the timing consistency between the data, which is particularly important for measurements requiring accurate time correlation.
High vertical resolution: With a vertical resolution of 12 bits, the input signal can be finely quantified to capture even smaller signal changes.
Flexible signal Settings: Flexible coupling, impedance, voltage range and filter Settings are provided, and users can adjust these parameters as needed to suit different types of signals.
The PXIE-5105 is also highly integrated and can be synchronized and combined with other instruments to form a mixed-signal test framework. In addition, the device has a wide range of applications, including but not limited to ultrasonic nondestructive testing (NDT), medical imaging, scientific research, military/aviation, and consumer electronics.
The PXIE-5105 digitizer is suitable for many applications due to its high performance characteristics and flexible signal processing capabilities. The following are the main areas where the device is suitable:
Research and Laboratory applications: The PXIE-5105's high sampling rate and vertical resolution make it ideal for precise signal analysis and research in research and laboratory environments. Whether in physics, chemistry, biology or engineering, the PXIE-5105 provides accurate and reliable data acquisition.
Communication and Signal processing: In the field of communication, the PXIE-5105 can be used for signal modulation, demodulation, spectrum analysis, and channel measurement. It captures and analyzes communication signals in real time, helping engineers optimize the performance of communication systems.
Aerospace and Defense: The aerospace and defense sector is extremely demanding in terms of data acquisition and processing. The high performance of the PXIE-5105 enables it to meet the needs of high-speed and high dynamic range signal acquisition, and is suitable for aircraft testing, radar systems, missile guidance and other fields.
Industrial Automation and Testing: In the field of industrial automation and testing, the PXIE-5105 can be used for quality monitoring, fault diagnosis and mechanical performance testing on production lines. It collects sensor data in real time to help engineers identify and resolve potential problems.
Medical and biomedical: In the medical and biomedical fields, PXIE-5105 can be used for the collection and analysis of bioelectrical signals such as electrocardiogram (ECG) and electroencephalogram (EEG). Its high sampling rate and multi-channel synchronous sampling function enable it to accurately capture subtle changes in biological signals, providing strong support for medical diagnosis and treatment.
Energy and power: In the field of energy and power, the PXIE-5105 can be used for tasks such as grid monitoring, power quality analysis, and testing of new energy equipment. It captures power signals in real time to help engineers evaluate and optimize the performance of power systems.
In summary, the PXIE-5105 digitizer is suitable for a variety of applications, and its high performance and flexibility make it ideal for data acquisition and signal processing applications.
