5136-DNP-PCI Reliance interface module

No.5136-DNP-PCI
The Molex/Woodhead/SST 5136-DNP PCI Interface card will meter your PCI bus
The computer is connected to DeviceNet. Using this card, the entire DeviceNet protocol is in hardware
To perform client and server operations simultaneously. The card holds 125, 250 and 50
All standard baud rates of Goo Pot.
  • Reliance 5136-DNP-PCI interface module
Desciption

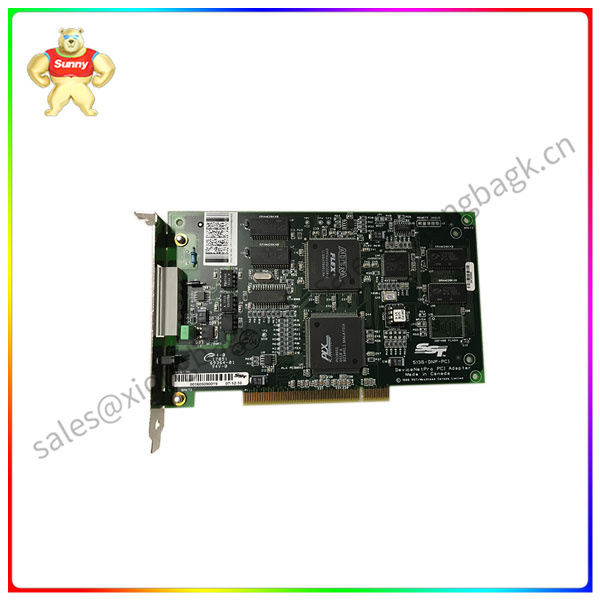

Reliance 5136-DNP-PCI interface module
5136-DNP-PCI is a DEVICENET interface module manufactured by Reliance Electric
Block 33 MHz 32-bit PCI bus. The 5136-DNP-PCI has twenty integrated circuits and three
A microcontroller. There are two sets of jumper pins on the card. The 5136 DNP PCI has a single crystal
The oscillator. There's a mint green square capacitor on the front panel, and a pale blue one
Fixed linear resistor. Then, the circuit board is composed of more than ten layers of chip ceramic capacitors and sixty
Five surface mount resistors (also known as SMDS) are covered. The circuit board also features more than 45 small
Type surface mount components, marked with the letter "Z ", stand for miscellaneous, so they may be more
Resistance or capacitance. The 5136 DNP PCI has a thin metal plate on its left side. On this thin
On the metal plate, there is a gray standard female terminal. The female standard terminal board has five openings,
There is a screw above each opening. Each opening is color-coded. The top opening is black
The second opening is light blue, the third opening is light gray, and the fourth opening is white
Color. The fifth and last opening is red. About the 5136-DNP-PCI function
For more information, please refer to Reliance Electric's multi-user manual and data sheet.

5136-DNP-PCI is a robot control interface card, which is for middle and high-end modular router and switch products. It is often used to extend local area network capabilities and can facilitate more efficient WAN access.
In addition, the 5136-DNP-PCI router has a built-in full-state detection firewall that can support 20 IPsec VPN(virtual private network) tunnels, protected by 3DES, AES, SSL, and SSH encryption protocols as well as MD5, SHA1, and certificate-based key exchange protocols. The DR-250 optionally supports up to 200 simultaneous VPN tunnels. These features ensure that remote sites are protected from denial-of-service attacks and hackers. VPNS increase security and have the ability to establish completely secure add-ons between several sites.
