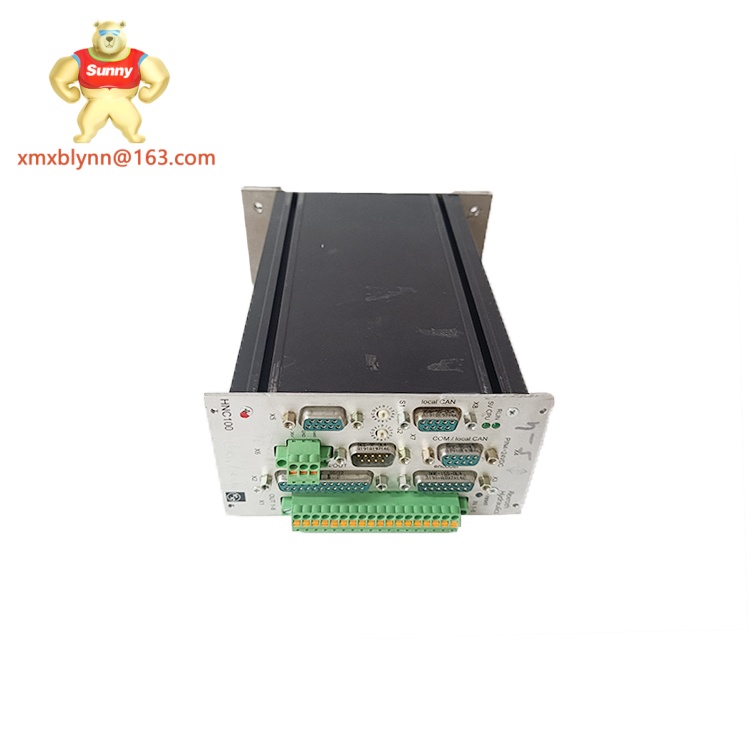

The VT-HNC100-1-23M-08-P-0 is a high-precision closed-loop control module from Rexroth, a leading name in industrial automation and hydraulic systems. As a core component of Rexroth’s HNC (Hydraulic Numerical Control) series, this module specializes in regulating hydraulic axes, enabling precise positioning, speed control, and force management in complex industrial machinery.
Designed to bridge sensor data, hydraulic actuators, and higher-level control systems, the VT-HNC100-1-23M-08-P-0 excels in real-time adjustment of hydraulic valves, ensuring consistent performance even in dynamic operating conditions. Its integration with Rexroth’s automation ecosystem—including PLCs and human-machine interfaces (HMIs)—makes it a versatile solution for both new installations and upgrades of legacy hydraulic systems. What sets the VT-HNC100-1-23M-08-P-0 apart is its balance of accuracy and ruggedness: it delivers micron-level precision while withstanding the vibration, temperature fluctuations, and contamination common in heavy industrial environments. For manufacturers prioritizing repeatability and efficiency in hydraulic processes, the VT-HNC100-1-23M-08-P-0 is an indispensable tool.
The VT-HNC100-1-23M-08-P-0 is engineered to elevate hydraulic control precision in industrial applications. Its advanced PID closed-loop algorithm enables real-time correction of positioning errors, ensuring repeatability within microns—critical for applications like metal stamping, where even minor deviations can compromise part quality. This precision directly translates to reduced waste and improved product consistency.
Integration flexibility is a standout advantage. Compatible with Profibus DP and CANopen protocols, the VT-HNC100-1-23M-08-P-0 seamlessly connects to PLCs, HMIs, and sensor networks, allowing operators to monitor and adjust parameters remotely. This connectivity simplifies system expansion, as additional modules can be added without disrupting existing operations.
Durability is built into its design. The module’s rugged construction resists electromagnetic interference (EMI) and operates reliably in temperatures from -10°C to 60°C, making it suitable for factory floors, foundries, and outdoor hydraulic systems. Its low power consumption (max 15W) also reduces energy costs, a benefit for continuous-operation facilities.
Diagnostic tools enhance maintainability: integrated LEDs indicate module status and fault codes, while detailed error logs are transmitted to the main controller. This allows technicians to quickly identify issues like sensor drift or valve malfunctions, minimizing downtime and reducing troubleshooting costs.
The VT-HNC100-1-23M-08-P-0 is indispensable in industries relying on precise hydraulic control. In metal forming, it regulates the ram speed and force of hydraulic presses, ensuring consistent pressure during stamping or bending operations—vital for producing uniform automotive components or structural steel parts.
In injection molding, the module controls clamping force and injection speed, adjusting in real time to material viscosity changes. This precision prevents defects like flash or short shots, improving yield in plastic part production.
For machine tools, such as CNC hydraulic presses or grinding machines, the VT-HNC100-1-23M-08-P-0 manages axis positioning, enabling tight tolerances in machining processes. Its ability to handle dynamic loads ensures stability even when cutting hard materials like titanium or stainless steel.
In construction machinery, the module optimizes hydraulic cylinder movements in cranes or excavators, enhancing safety by preventing sudden pressure spikes and improving fuel efficiency through precise power management.
- VT-HNC100-1-23M-08-P-1 – Enhanced version of VT-HNC100-1-23M-08-P-0 with expanded input channels (6 analog inputs) for complex systems.
- VT-HNC050-1-23M-08-P-0 – Compact variant with reduced power consumption, ideal for small-scale hydraulic applications.
- VT-HNC200-1-23M-08-P-0 – High-capacity model supporting up to 4 hydraulic axes, upgrading VT-HNC100-1-23M-08-P-0 for multi-axis systems.
- VT-HNC100-2-23M-08-P-0 – Communication-focused variant with Ethernet/IP support, complementing VT-HNC100-1-23M-08-P-0 for IoT-integrated setups.
- VT-HNC100-1-23M-08-P-0R – Ruggedized version with extended temperature range (-20°C to 65°C), suitable for extreme environments.
- VT-HNC100-1-23M-08-P-0L – Long-life model with enhanced component durability, targeting legacy system retrofits.
Installing the VT-HNC100-1-23M-08-P-0 requires a clean, dry enclosure with adequate ventilation to maintain its operating temperature range (-10°C to 60°C). Mount the module on a 35mm DIN rail, ensuring at least 20mm clearance from adjacent components to facilitate airflow and wiring access. Proper grounding (≤4Ω) is critical to prevent EMI, which can disrupt signal accuracy in closed-loop control.
For maintenance, conduct bi-annual inspections: check for loose terminal connections, clean dust from ventilation slots using compressed air, and verify firmware updates via Rexroth’s IndraWorks engineering software. Calibrate analog inputs annually to maintain precision, especially in high-tolerance applications. If faults persist, replace the module with an exact VT-HNC100-1-23M-08-P-0 unit to ensure compatibility with hydraulic valves and control systems.
The VT-HNC100-1-23M-08-P-0 is backed by a one-year warranty from Xiamen Xiongba E-commerce Co., Ltd., covering defects in materials and workmanship under normal operating conditions. This includes free replacement for any module failing to meet performance standards within the warranty period. Xiongba’s technical support team provides 24/7 assistance for installation, troubleshooting, and system integration, ensuring minimal disruption to your operations. Our confidence in the VT-HNC100-1-23M-08-P-0’s quality is reflected in this warranty, designed to support long-term reliability and customer satisfaction.
