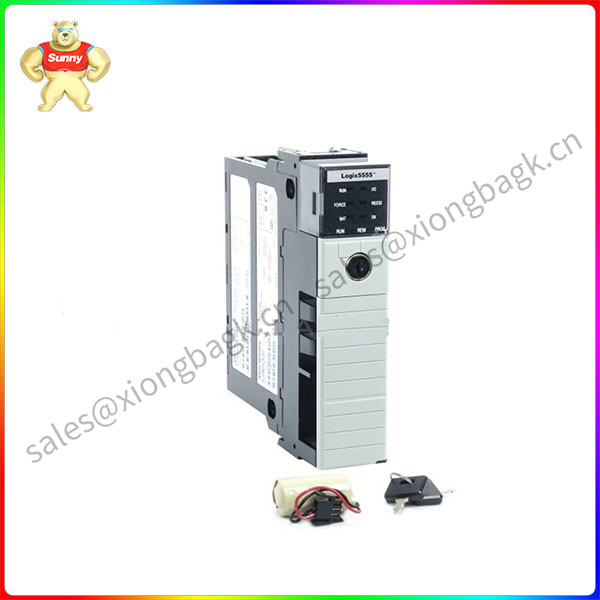

Model 1756-L55M13
Brand Rockwell Automation
Type processor element
The 1756-L55M13 is a processor module under the Rockwell (Allen-Bradley) brand, part of its PLC (Programmable Logic Controller) family.
Specifically, the 1756-L55M13 is a power controller that functions as an input and output module. With the help of the processor, it is able to control the input and output of power, thereby managing the use and distribution of power.
Allen-Bradley 1756-L55M13 is A Series ControlLogix 5555 controller. While this particular controller has no non-volatile memory available, it does have a 1.5 optical bytes of data and logic memory and 208 kilobytes of U/O memory available. The 1756-55M13 controller also weighs 0.35 grams or 12.5 ounces. Because it is an open controller, there is no housing type rating.
It also supports the following communication options DeviceNet, ControlNet, Ethernet/P, Universal Remote /O Serial, Data Highway Plus, Modbus via Ladder routine, SynchLink, and DH-485.
The backplane current of the 1756-55M13 is 0.014A at 24V DC and 1.23A at 5.1VDC. It has a thermal dissipation of 19.1 BTU/hr and a power consumption of 5.6W. It has a basic insulation type and a continuous isolation voltage of 30V, and has been tested to withstand 707v DC 60s. The 1756-L55M13 controller has conducted RF immunity of 10V rms, 1 kHz sine wave BO0%AM, and a frequency range of 150kHz to 80MHz.
1756 ControlLogix CIP secure I/O module
. Compact GuardLogixR 5380 or GuardLogix 5580 console support · Provides functional safety levels up to (including)SIL3 and PLe
· Support CIP Safety information forwarding and routing functions
. Local IO or distributed IO for use as the 5580 GuardLogix controller · Provides faster response times
. Use the Logix Designer application version 32
· Digital input module :IB16S-16 channel (SIL 3 for all grades)· Digital output module :OBV8s-8 channel (SIL 3 for all grades). Includes compliance marks :TUv, UL,IECEx,ATEX,CE, Marine,FMControlLogix Digital I/O modules
· Various voltages are available
. Each module provides 8 to 32 points. Both isolated and non-isolated module types are available. Contains channel-level fault status output
. Direct connection or rack-optimized communication is possible. Field diagnostics for selected modules
