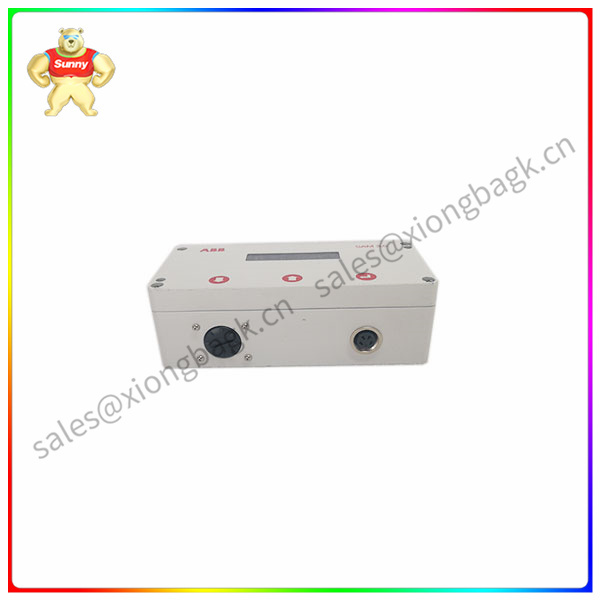

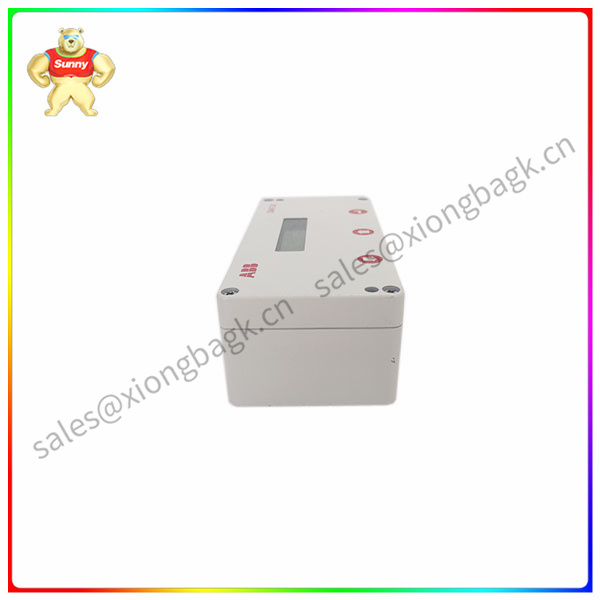

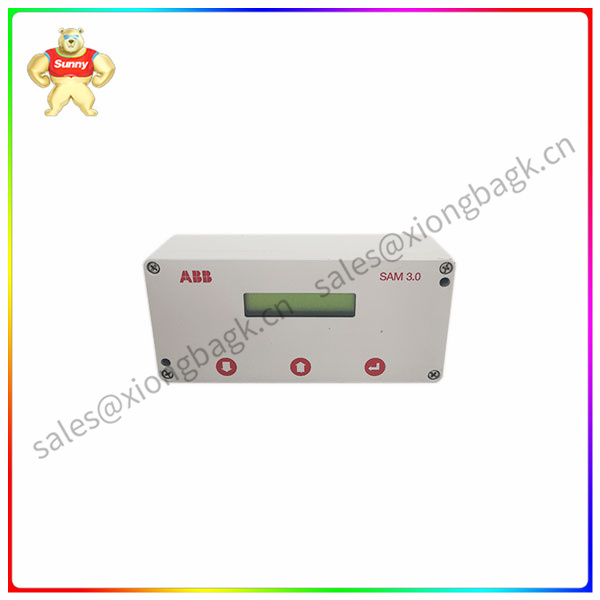

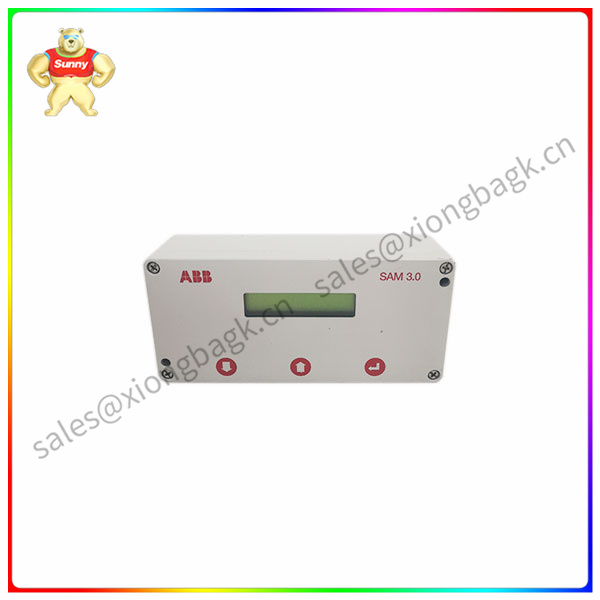

SAM 3.0 sensitively records electrical surges from lightning and switches, as well as total leakage current. These values are displayed in digital form on an electronic display. It consists of a current sensor with an optional cable length and a display device that can be installed outside the arrester.
The system divides the inrush current pulses into three categories and saves overvoltage events with time and date information (time stamps).
Application program
Suitable for all types of AIS and GIS gapless arresters in medium and high voltage power grids
Especially recommended for hard-to-reach installations (switchgear, medium voltage switchboard, overhead lines, etc.)
Why choose Hitachi Energy?
Accurate total leakage current measurement
Safe behavior is demonstrated even after overloading the surge discharger
Use time stamps to classify surge events
No voltage is added to the residual voltage of the arrester
Split mounting - the display can be located away from the measuring point
EMC robust design
Easy to install
Applications:
profession
Refining and petrochemicals
Upstream and midstream oil and gas
Chemicals and specialty chemicals
Generate electricity
pharmacy
Security and critical control applications
TuV certification for SIL 3 applications according to international standard IEC61508:2010
- Emergency shutdown system (ESD control)
- Fire and Gas systems (F&G control)
- Burner Management System (BMS control)
- High integrity pressure protection system (HIPPS control)
- Turbomachinery control (TMC) and protection systems
Suitable for centralized, distributed, and remote I/O applications
Suitable for harsh environments
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
