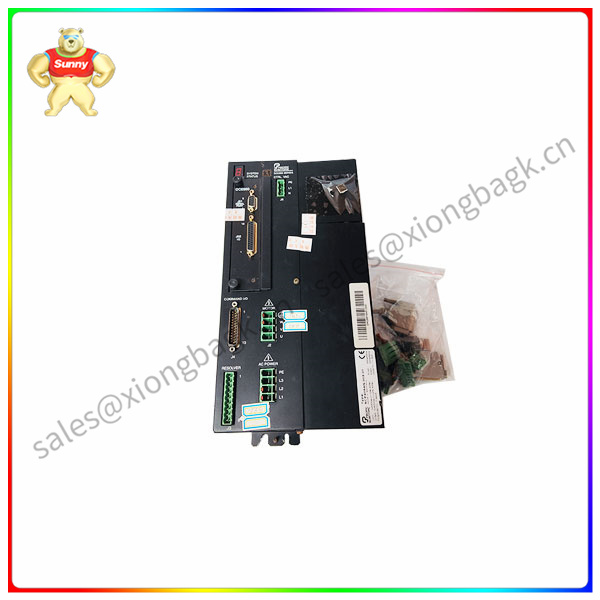

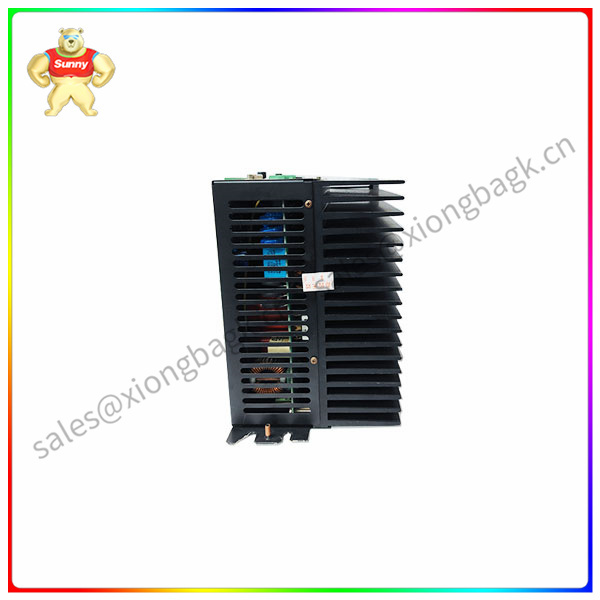

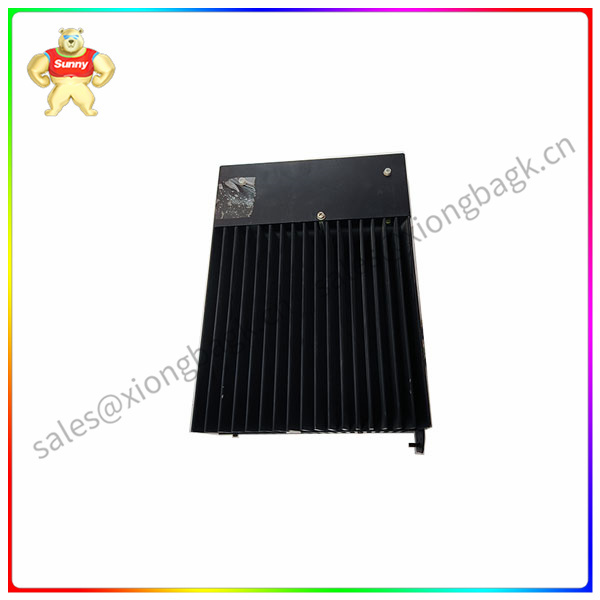

SCE905AN-002-01 is a high performance servo system driver. The driver is designed to be coupled to a brushless three-phase permanent magnet motor and has dual supply redundant inputs with input voltage range DC9-36V, typical value DC24V, and power consumption of less than 4W.
In addition, the SCE905AN-002-01 has a modular construction as well as user-detachable tabs, which makes it very flexible and easy to integrate into various systems. At the same time, the driver is compatible with US 480 VAC lines as well as European 400 VAC three-phase power supplies, which increases its versatility.
In terms of functionality, the SCE905AN-002-01 has many useful features, including a fully digital control interface. These features enable the SCE905AN-002-01 to provide highly accurate and efficient motion control to meet the needs of a wide range of complex applications.
The SCE905AN-002-01 is a high performance, medium power single-axis servo driver designed to be coupled to a brushless three-phase permanent magnet motor. The following are the main functions and application areas of SCE905AN-002-01:
Features:
Fully digital DSP-based control: With current loop and digital autoregulation, it facilitates easy and predictable setup.
Advanced Signature Series sinusoidal current control features to support low shaft torque pulsations and uniform control dynamics at various speeds.
Modular structure and user detachable tabs: easy to configure. TAB available for SCE905AN-002-01. These tabs extend the function of the servo drive and allow the user to adjust the device according to different parameters.
Storage function: The device is not configured when delivered. To configure the servo drive, the user must first set the correct parameters. These parameter Settings are stored in the device's EEPROM memory or option card. EEPROM can support at least 100,000 writes. On average, it can support 1,000,000 writes to electrically erasable programmable read-only memory.
Application field:
Industrial automation: SCE905AN-002-01 can be used as a servo driver in industrial automation systems to control the movement and position of various industrial equipment to improve production efficiency and product quality.
Robot technology: SCE905AN-002-01 can be used as a servo driver in the robot control system to provide accurate position and speed control for the robot and improve the motion accuracy and response speed of the robot.
Aerospace: SCE905AN-002-01 can be used as a servo driver in the aerospace field to control the motion and attitude of aircraft, satellites and other equipment to ensure its stability and safety.
Military field: SCE905AN-002-01 can be used as a servo driver in the military field to control the movement and position of weapons systems, radar and other equipment to improve the accuracy and response speed of weapon systems.
In summary, the SCE905AN-002-01 is a high performance, medium power single axis servo drive with a wide range of applications.
